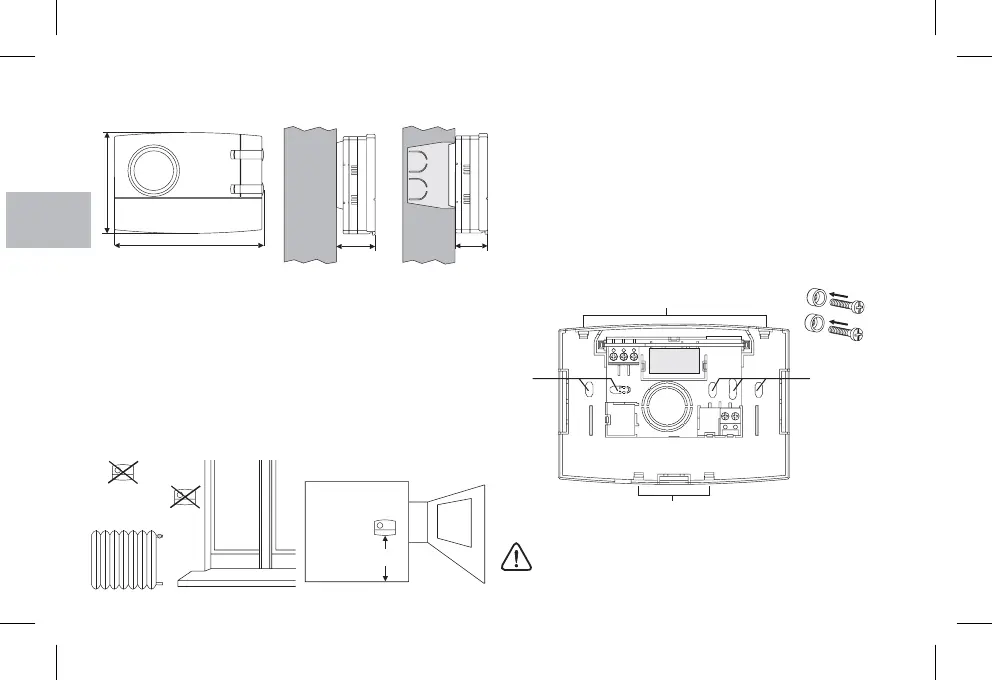

2 - OVERALL DIMENSIONS
3 - INSTALLATION GUIDELINES
Chronothermostat installation: independent-fixed


Wall mounting - in round box - semi-recessed in rectangular box
of 3 modules.
Install the device approximately 1.5 m off the ground well away
from sources of heat, windows and anything else that can affect
its normal state of operation.
h 1,5 mt
OK!
!
121,5
82
31,5 26


Switch off mains power to device
If the wall where the base of the chronothermostat is to be attached is
metal, insert the insulating washers into the two screws.
Using screws, attach the base to the wall, to the round or rectangular
built-in box using the appropriate pairs of holes .A
4 - ATTACHING THE BASE TO THE WALL
A - attachment holes
B - wire passage from round, rectangular box
C - chronothermostat attachment teeth
To ensure the chronothermostat is correctly fitted to the base
on the wall, it must not in any way be buckled due to
overtightening the screws fixing to the rectangular or round
box built into the wall.
