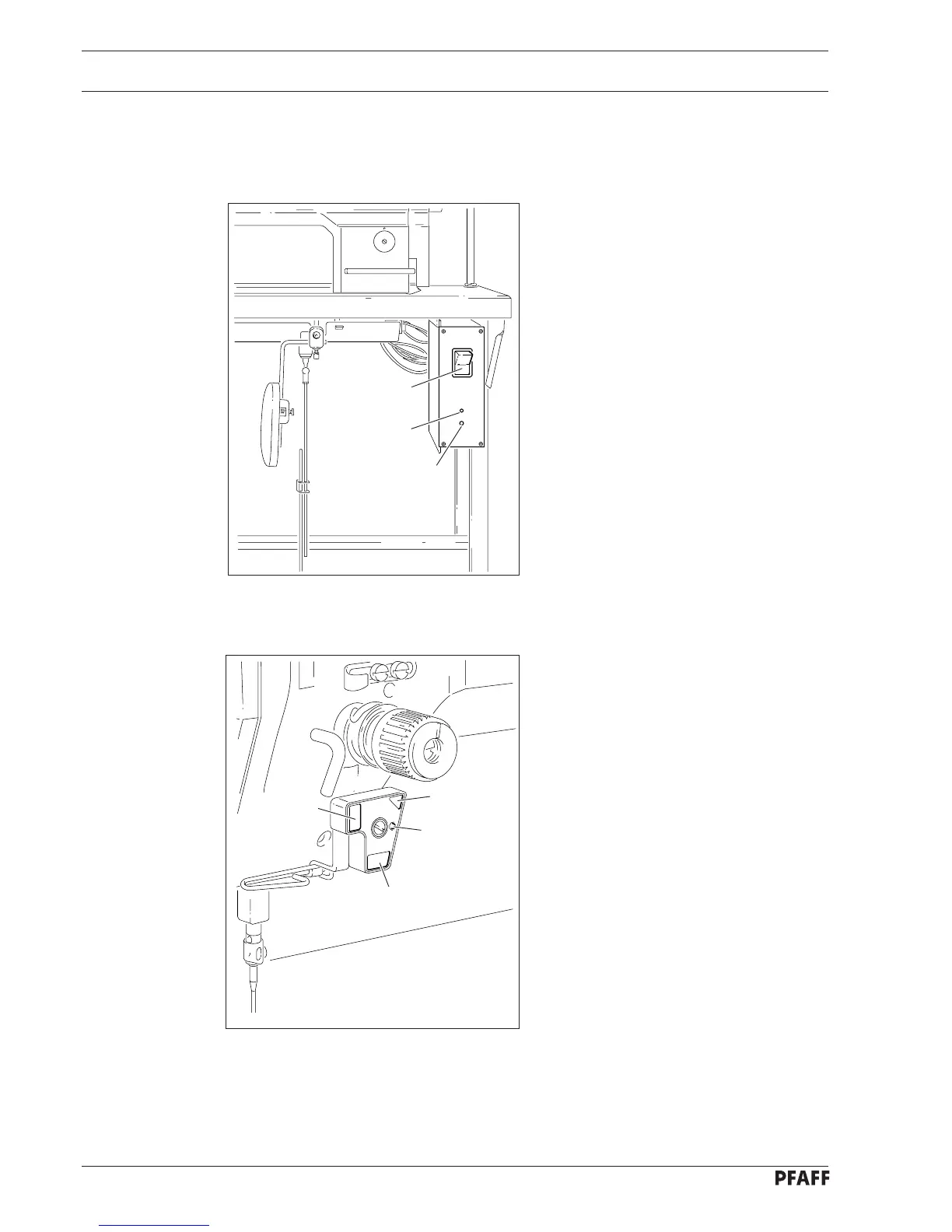

Fig. 7 - 01
7 Controls
7.01 On/Off switch
● Turn the machine on/off by pressing the
On/Off switch 1.
● LED 2 is for monitoring the machine
controller.
Switch 1 on:
LED ON = controller
operative
LED blinking = malfunction
Switch 1 off:
LED blinking = controller will
remain live for
approx. 4 seconds
LED off = controller off
● The machine speed can be adjusted via
potentiometer 3.
Fig. 7 - 02
7.02 Keys on the machine head
● The following functions are triggered by
pressing the corresponding keys.
Key 1: When sewing is interrupted, the
needle can be either raised or
lowered as required.
Key 2: reverse sewing
Key 3: Prevent automatic start backtack
or finish backtack (diode 4 is lit
when function is active).
1
2
3
4
1
2
3
