Adjustment
11 - 15

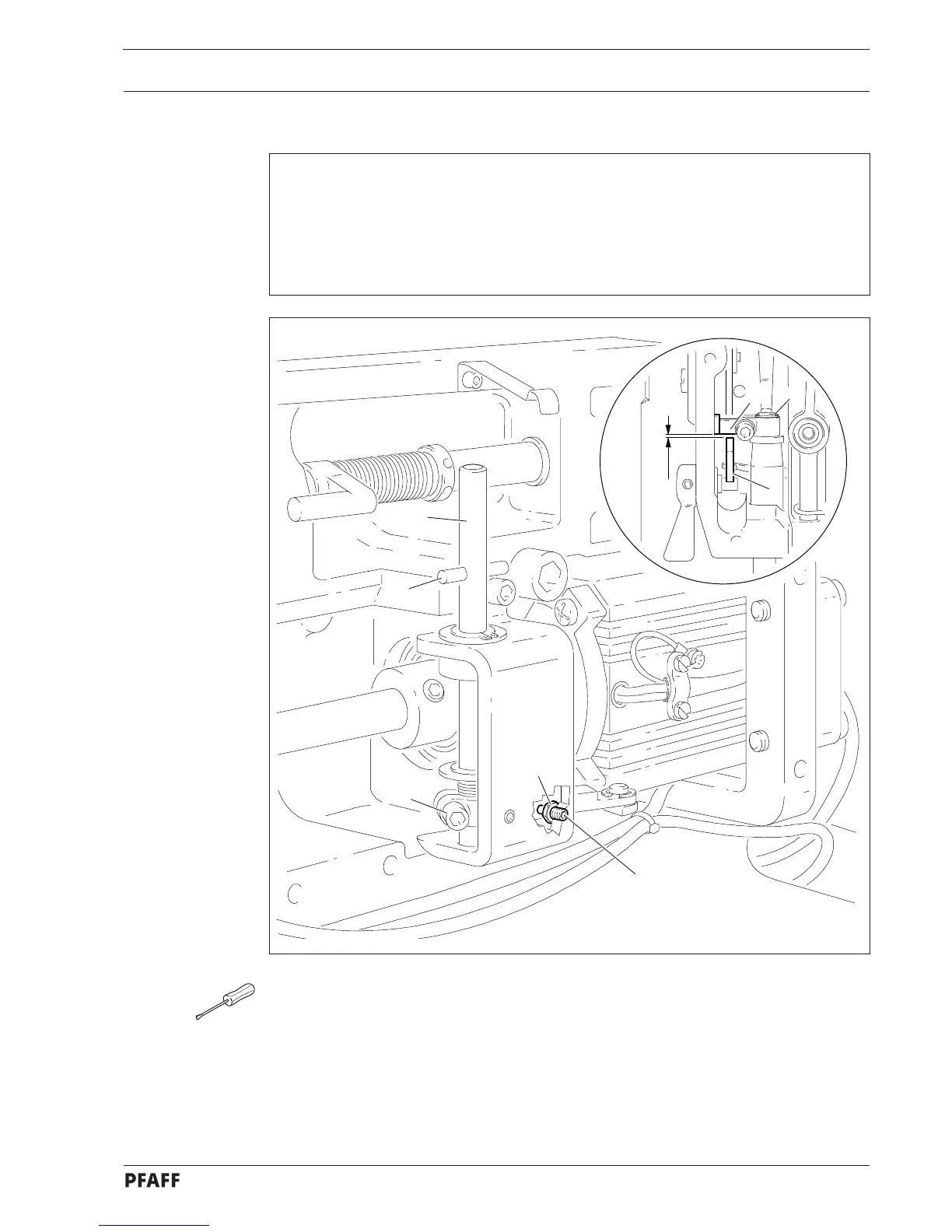

11.05.13 Position of knee lever
Requirement
1. When the knee lever is in its resting position, the axle 5 must be parallel to the
bedplate.
2. When the presser foot is resting on the needle plate, the presser bar lifting lever 6
must be touching the circlip 8 lightly and be at a distance of approx. 1 mm from lifting
piece 7.
● Turn shaft 1 (screw 2) according to requirement 1.
● Position needle bar at its BDC and allow the presser foot to rest on the needle plate.
● Turn screw 3 (nut 4) according to requirement 2.
8
6
7
1 mm
2
1
5
4
3
Fig. 11 - 14
