Adjustment
11 - 7
11.05.05 Feed dog height
Requirement
At stitch length setting "0" and needle bar position TDC, the feed dog 7 must,
1. viewed from the side and in the direction of feed, be positioned at the center of the
needle plate cutout, as well as
2. rest against the feed dog adjustment gauge 1 along its entire length.
1
3
5
6
2
4

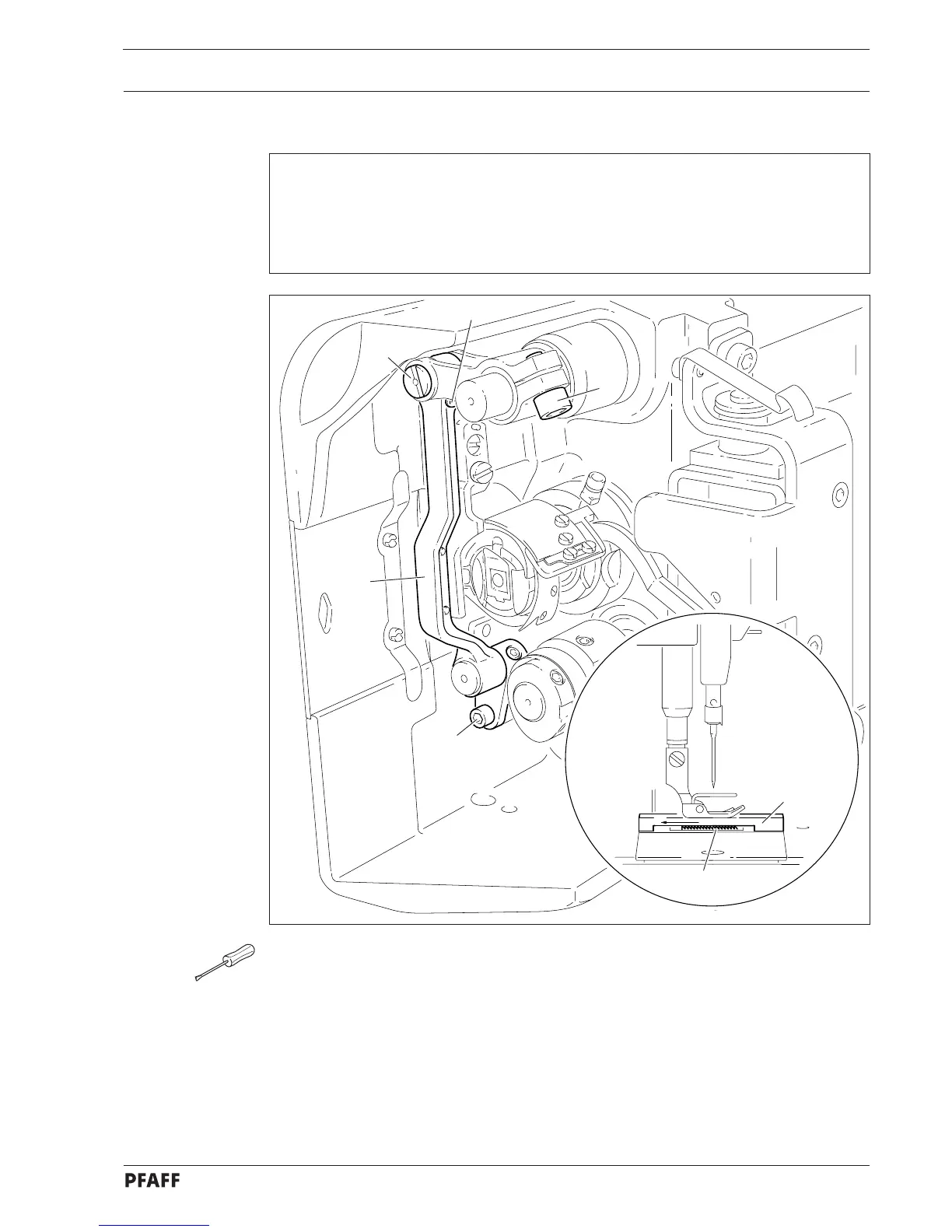

Fig. 11 - 06
● Set stitch length to "0" and position the needle bar at its TDC.
● Raise the presser foot.
● Position the feed dog adjustment gauge 1, with the arrow in the direction of sewing and
the front edge even with the needle plate edge, over the needle plate cutout and allow
the presser foot to touch it lightly.
● Adjust feed dog carrier 2 (screw 3) according to requirement 1.
● Loosen screws 4 and 5.
● Adjust feed dog carrier 2 and/or eccentric 6 according to requirement 2.
● Tighten screws 4 and 5.
7
