Adjustment
11 - 8
11.05.06 Feed dog motion
Requirement
At needle bar position 0.6 mm below TDC, when the stitch length setting is at its largest,
the feed dog must not carry out any movement when the reverse-feed control 3 is
operated.
1
2
3

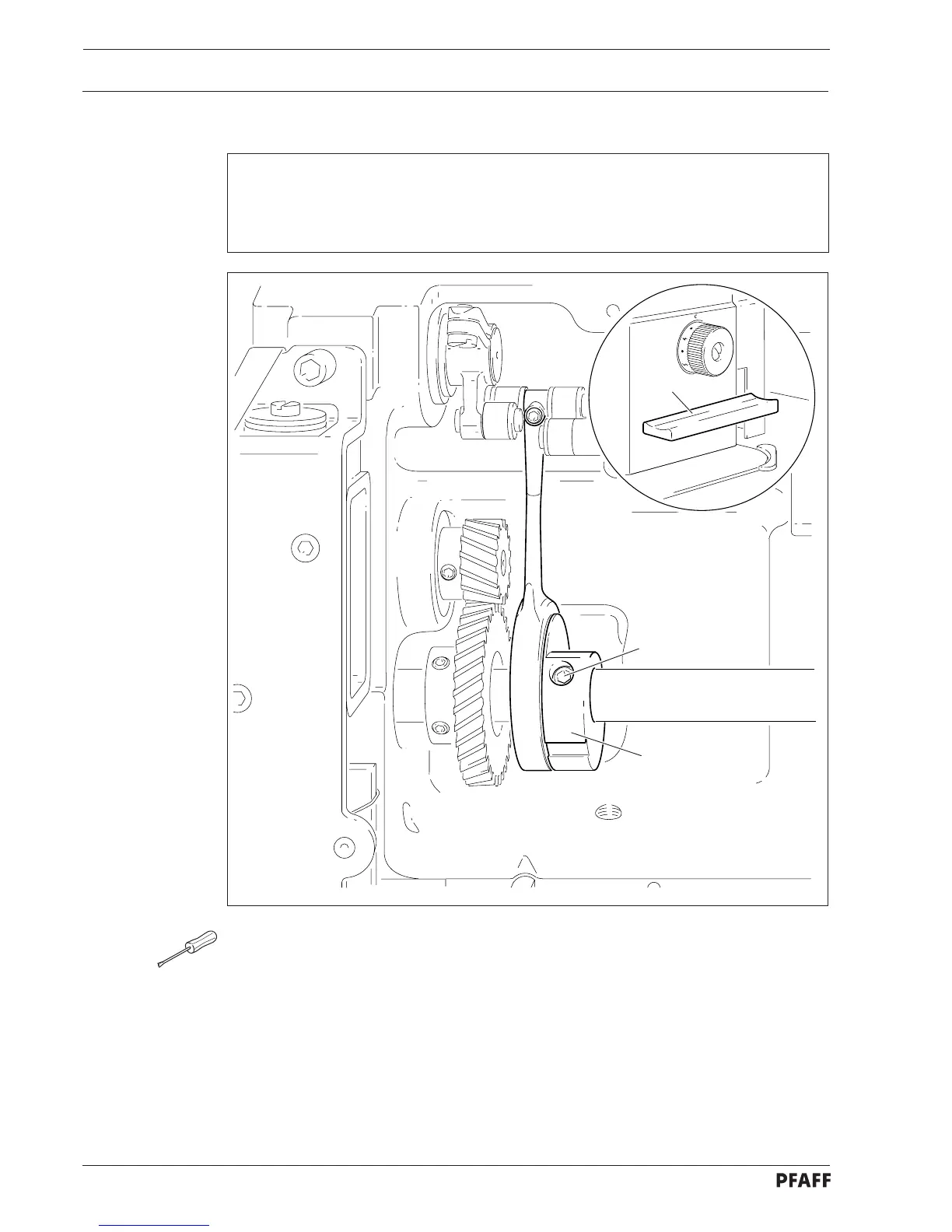

Fig. 11 - 07
● Set stitch length to the largest setting.
● Using the adjustment gauge, set the needle bar at a position 0.6 mm below its TDC.
● Turn eccentric 1, without moving it laterally, according to the requirement.
