Mounting and commissioning the machine
8 - 2

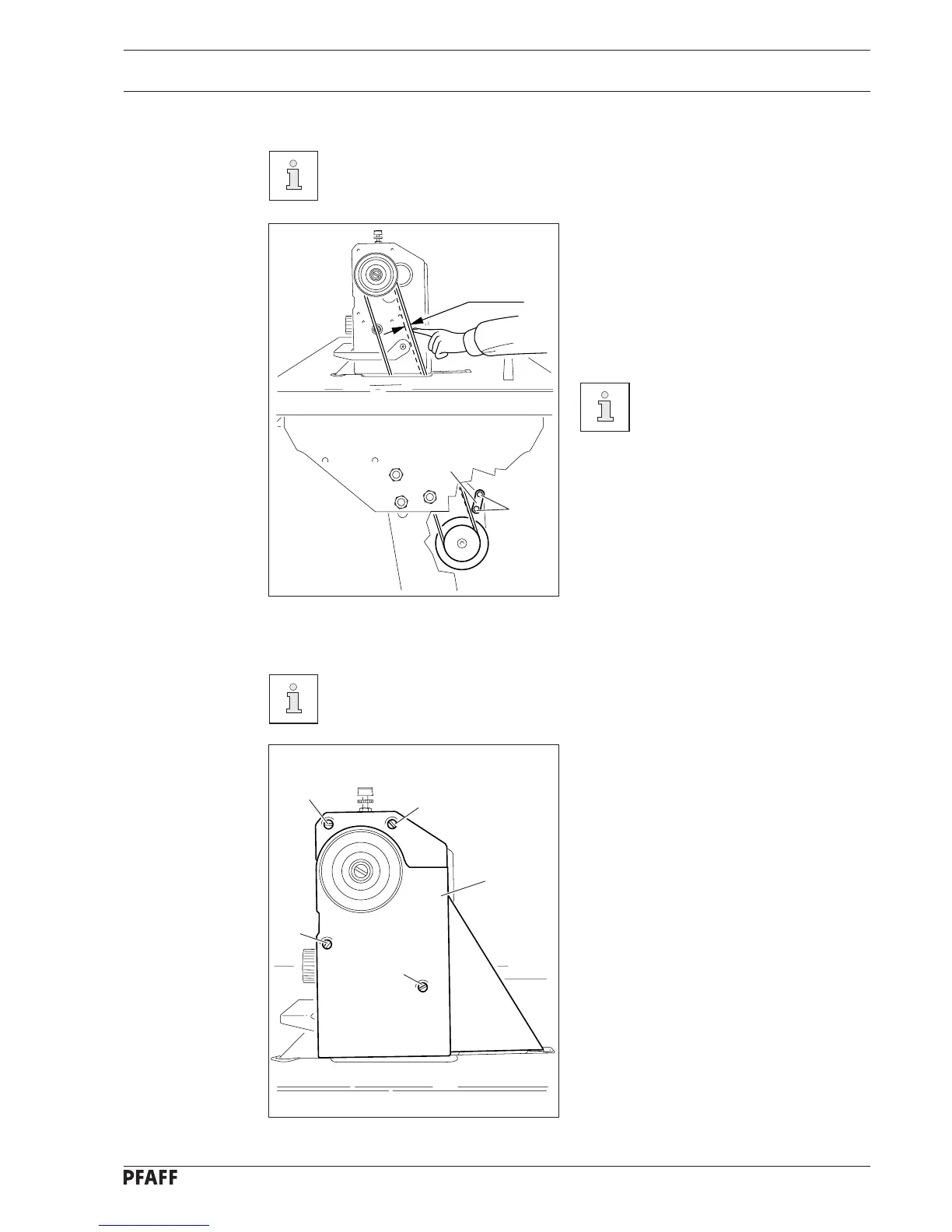

8.01.02 Adjusting the V-belt tension
This step is eliminated for integrated sewing motors.
● Loosen nuts 1.
● Tighten the V-belt with belt take-up
hanger 2.
● Tighten nuts 1.
A quick motor is shown in
Fig. 8-02. If another motor is
used, carry out this step
according to the instructions in
the motor instruction manual.
Fig. 8 - 02
8.01.03 Mounting the upper V-belt guard
This step is eliminated for integrated sewing motors.
● Screw belt guard 1 onto the machine
housing with the screws 2.
Fig. 8 - 03
1
2
2 cm
2
2
2
2
1
