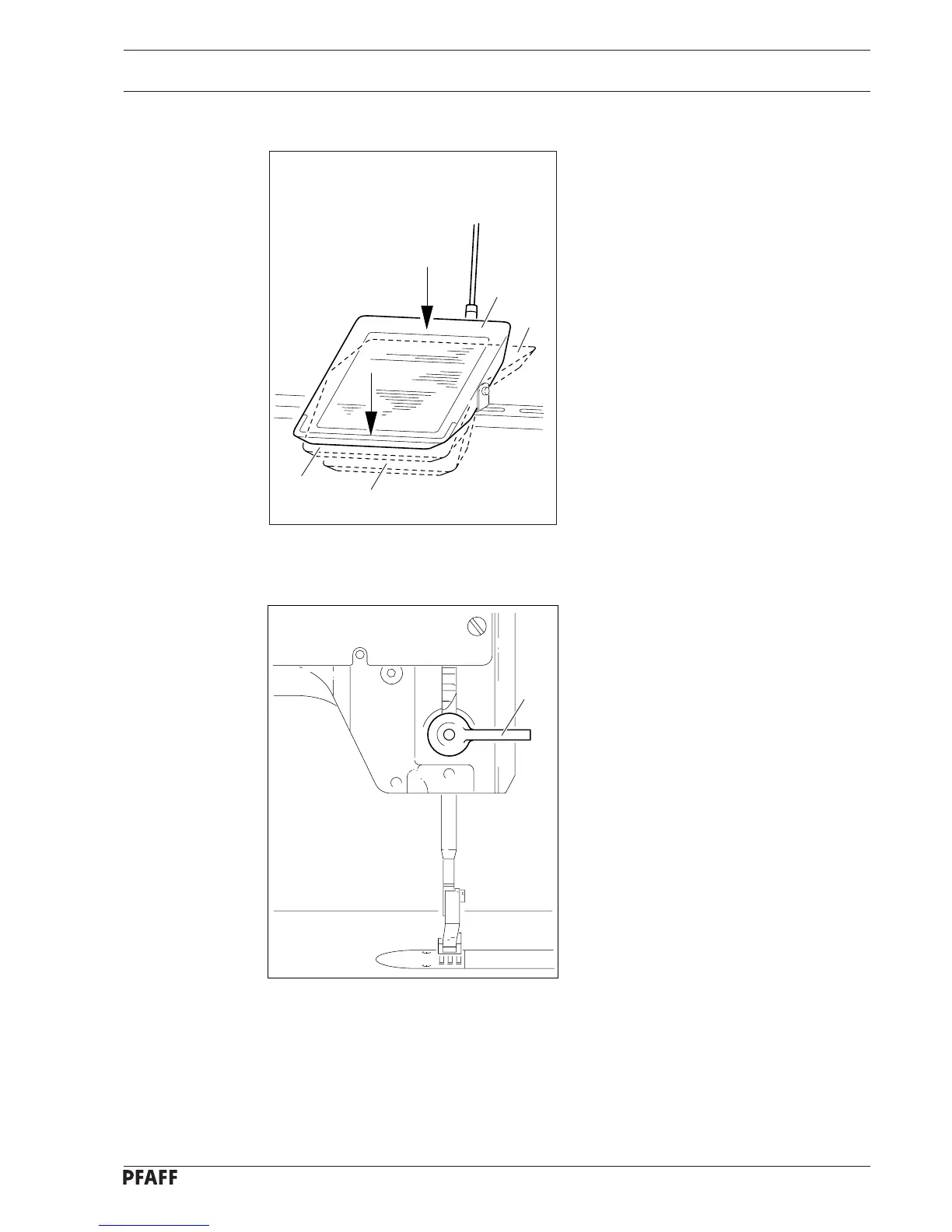

Controls
7 - 2
7
.03
Pedal
0
=
Machine stop
1
=
Sew
2
=
Raise presser foot (for
machines with -910/06)
3
=
Trim thread (for machines with
-900/22 or -900/24)
Fig. 7 - 03
0
1
2
3
7.
04
Lever for lifting the presser foot
ā
The presser foot is raised by turning
lever
1
.
Fig. 7 - 04
1
16
18
Table of Contents
Table of Contents
3
Contents
4
Safety
6
Directives
6
General Notes on Safety
6
Safety Symbols
7
Important Points for the User
7
Operating and Specialist Personnel
8
Operating Personnel
8
Specialist Personnel
8
Danger
9
Proper Use
10
Specifications
11
Pfaff 1053, Pfaff 1183
11
Models and Subclasses
12
Disposal of the Machine
13
Transport, Packaging and Storage
14
Transport to the Customer
14
Transport Within the Customer's Premises
14
Disposal of the Packaging
14
Storage
14
Explanation of the Symbols
15
Controls
16
On/Off Switch
16
Keys on the Machine Head
16
Pedal
17
Lever for Lifting the Presser Foot
17
Feed Regulator Disk
18
Reverse Feed Lever
18
Knee Lever
19
Switch for Thread Wiper -909/04
19
Mounting and Commissioning the Machine
20
Mounting
20
Adjusting the Table-Top Height
20
Adjusting the V-Belt Tension
21
Mounting the Upper V-Belt Guard
21
Mounting the Lower V-Belt Guard
22
Mounting the Spool Holder and the Sewing Lamp
22
Commissioning the Machine
23
Turning the Machine On/Off
23
Preparation
24
Inserting the Needle
24
Winding the Bobbin Thread/ Adjusting the Thread Tension
25
Removing/Inserting the Bobbin Case
26
Inserting the Bobbin Case / Adjusting the Bobbin Thread Tension
26
Threading the Needle Thread / Adjusting the Needle Thread Tension
27
Adjusting the Stitch Length
28
Care and Maintenance
29
Cleaning the Machine
29
Filling the Oil Reservoir (PFAFF 1183 Only)
30
Adjustment
31
Notes on Adjusting
31
Tools, Gauges and Other Accessories for Adjusting
31
Abbreviations
31
Checking and Adjusting Aids
32
Adjusting the Basic Machine
33
Basic Position of the Machine Drive (for 220 V Built-In Motors Only)
33
Preadjusting the Needle Height
34
Neutralizing the Feed Dog Movement
35
Feed Lifting Motion
36
Feed Dog Height
37
Feed Dog Motion
38
Needle in Needle Hole Center
39
Hook Shaft Bearing and Backlash
40
Hook Lubrication (for PFAFF 1183 Only)
41
Needle Rise, Hook-To-Needle Clearance, Needle Height and Bobbin Case Position Finger
42
Thread Tension Release (Machines Without -900
43
Thread Check Spring and Slack Thread Regulator
44
Position of Knee Lever
45
Knee Lever Stop
46
Bobbin Winder
47
Limiting the Stitch Length
48
Presser Foot Pressure
49
Modifying the Needle Bar Stroke
50
Adjusting the Thread Trimmers -900/22 and -900/24
51
Magnet Setting
51
Lateral Alignment of the Thread Catcher
52
Knife Position
53
Front Point of Reversal of the Thread Catcher
54
Manual Trimming Check
55
Thread Tension Release
56
Readjusting the Control Cam
57
Adjusting the Thread Wiper -909/04
58
Thread Wiper Movement
58
Thread Wiper Position
59
Adjusting the Automatic Presser Foot Lift -910/06
60
Adjusting the Backtacking Mechanism -911/37
61
