7 - 3
Controls
110-0011
110-005

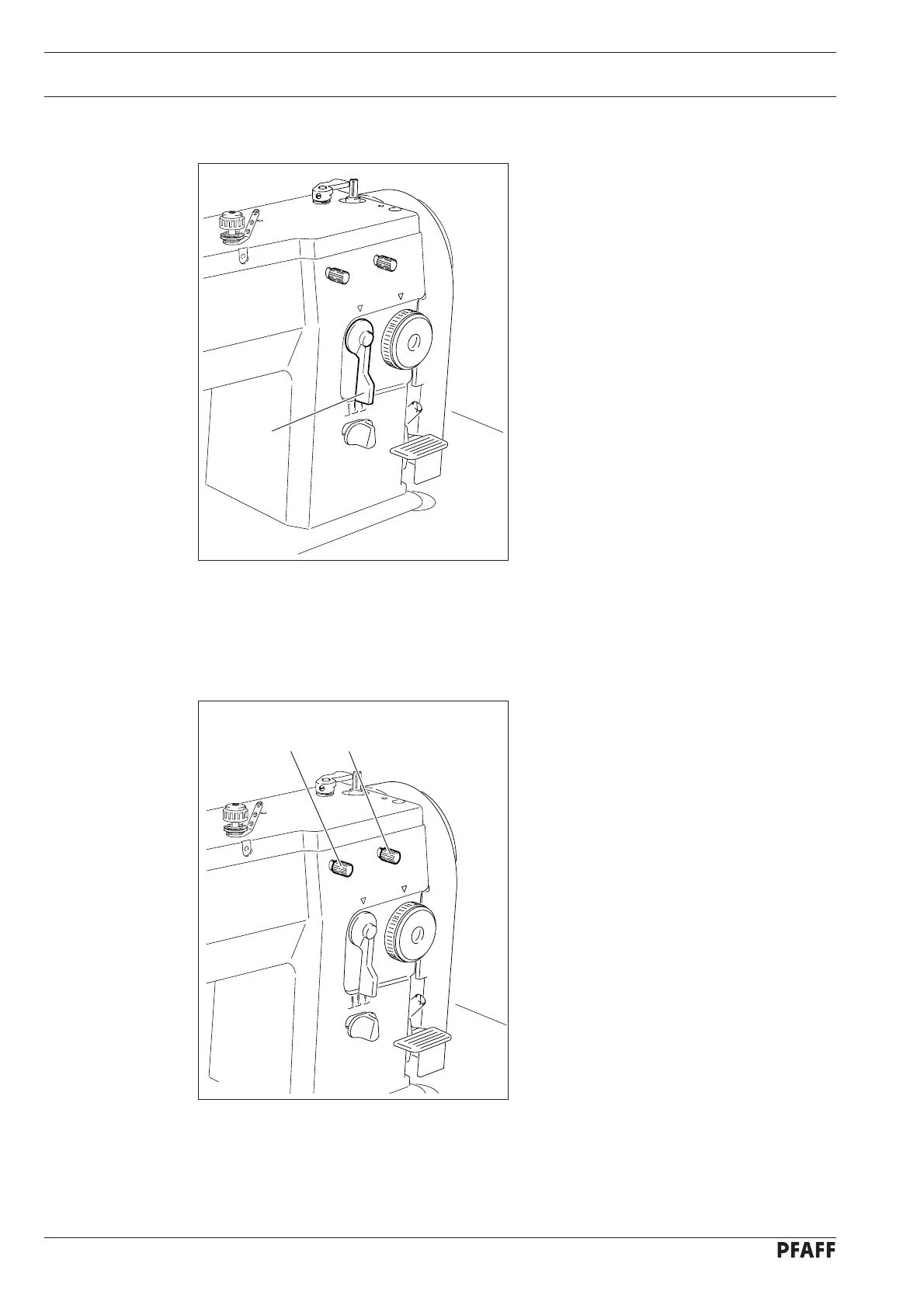

Fig. 7 - 05
7.05 Zig-zag stitch lever
● To adjust the width of the zig-zag stitch
operate the zig-zag stitch lever 1.
7.06 Limiting and setting the zig-zag stitch
● By tightening screw 1 the maximum zig-
zag stitch width can be limited, see
Chapter 9.07 Setting the zig-zag stitch
width.
● By tightening screw 2 the selected zig-
zag stitch width can be set, see Chapter
9.07 Setting the zig-zag stitch width.
1
12
Fig. 7 - 06
