Installation and commissioning
110-013

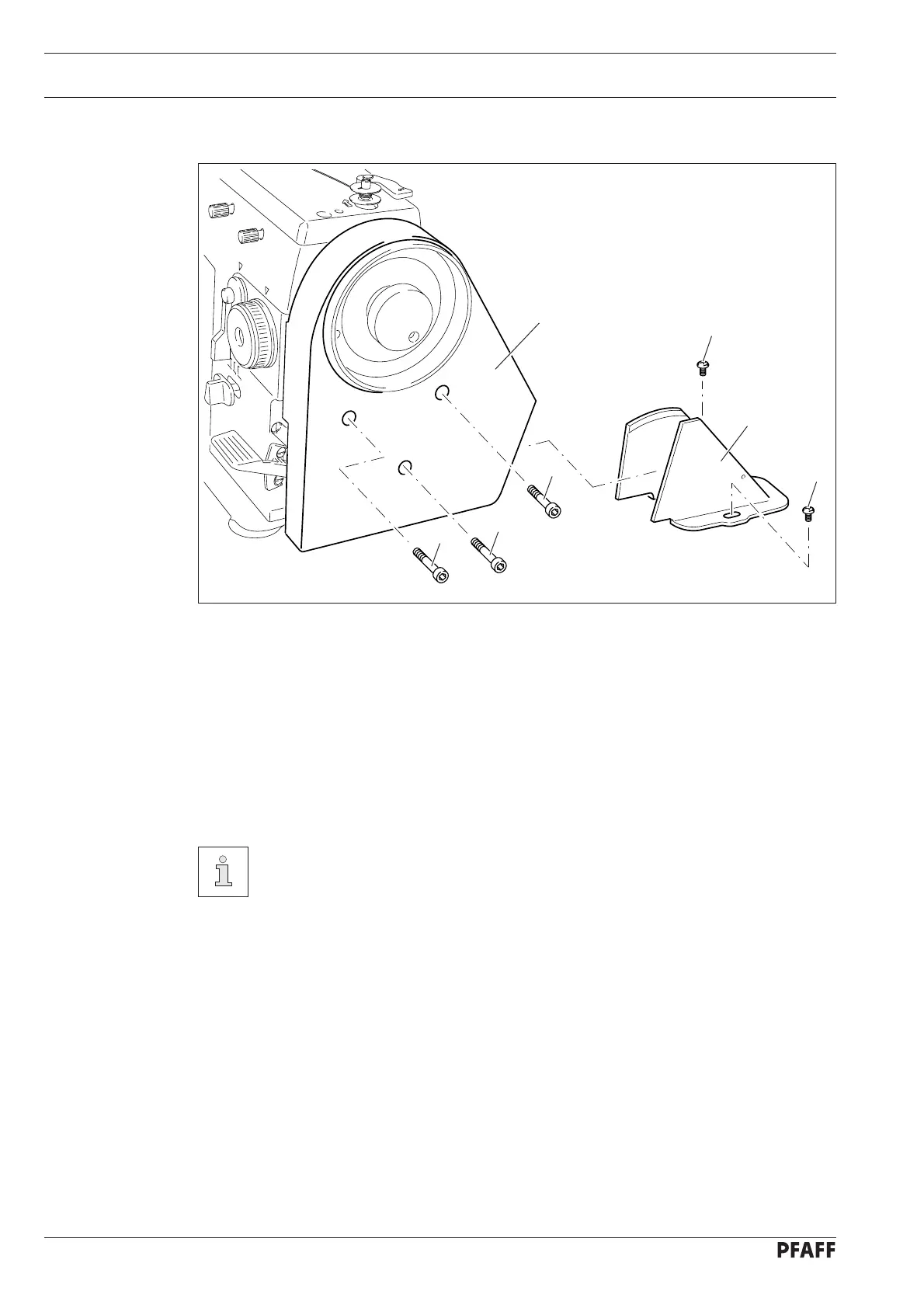

8.01.02 Fitting the top V-belt guard
Fig. 8 - 02
● Fasten belt guard 1 with screws 2.
● Fasten belt guard 3 with screws 4.
8.01.03 Fitting the bottom V-belt guard
Attach the bottom V-belt guard as specified in the motor Instruction Manual.
