10 - 4
Care and maintenance
10.04.03 Oiling points under the bed plate

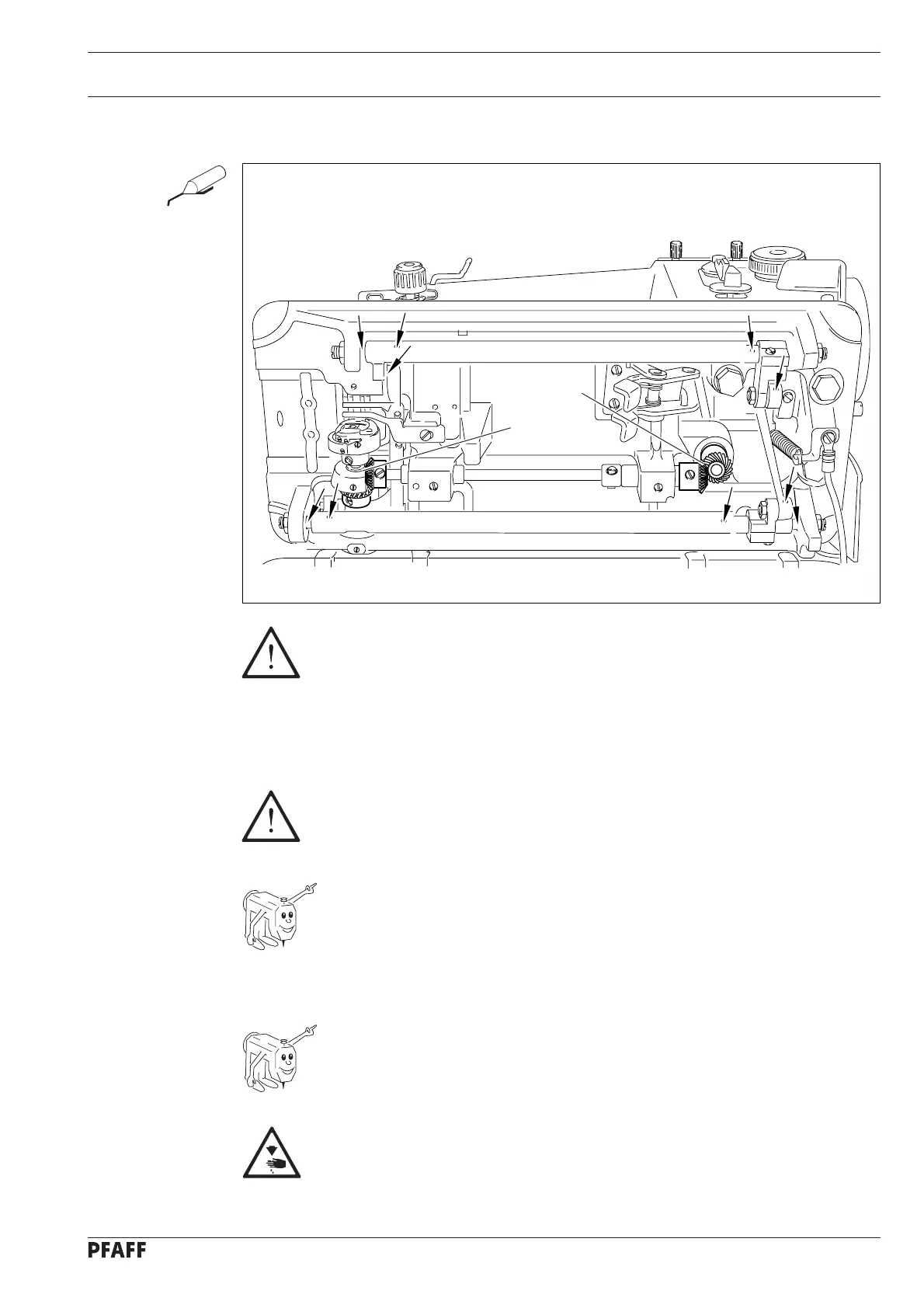

Fig. 10 - 05
Switch off the machine!
Danger of injury due to unintentional starting of the machine!
● Tilt the machine back.
● Apply a few drops of oil once a week to the points marked, see arrows in Fig. 10-05.
Only use oil with a mean viscosity of 22.0 mm
2
/s at 40°C and a density of
0.865 g/cm
3
at 15°C.
We recommend PFAFF sewing machine oil, part no. 280-1-120 144.
● Apply fresh grease to the bevel gears 1 and 2 as required.
We recommend PFAFF sodium soap grease with a dripping temperature of ca.
150° C, part no. 2801-1-120 243.
Return the machine to its upright position using both hands!
Danger of injury by crushing between the edge of the machine and the table top!
1
2
