Pfaff 1183-712/02

Adjustment
12 - 11
96-027
12.05.09 Presser foot control cam
Requirement
When the needle bar is at t.d.c., the adjustment pin 2 (part no. 61-111 639-70) should lock
into the groove of the control cam 1.

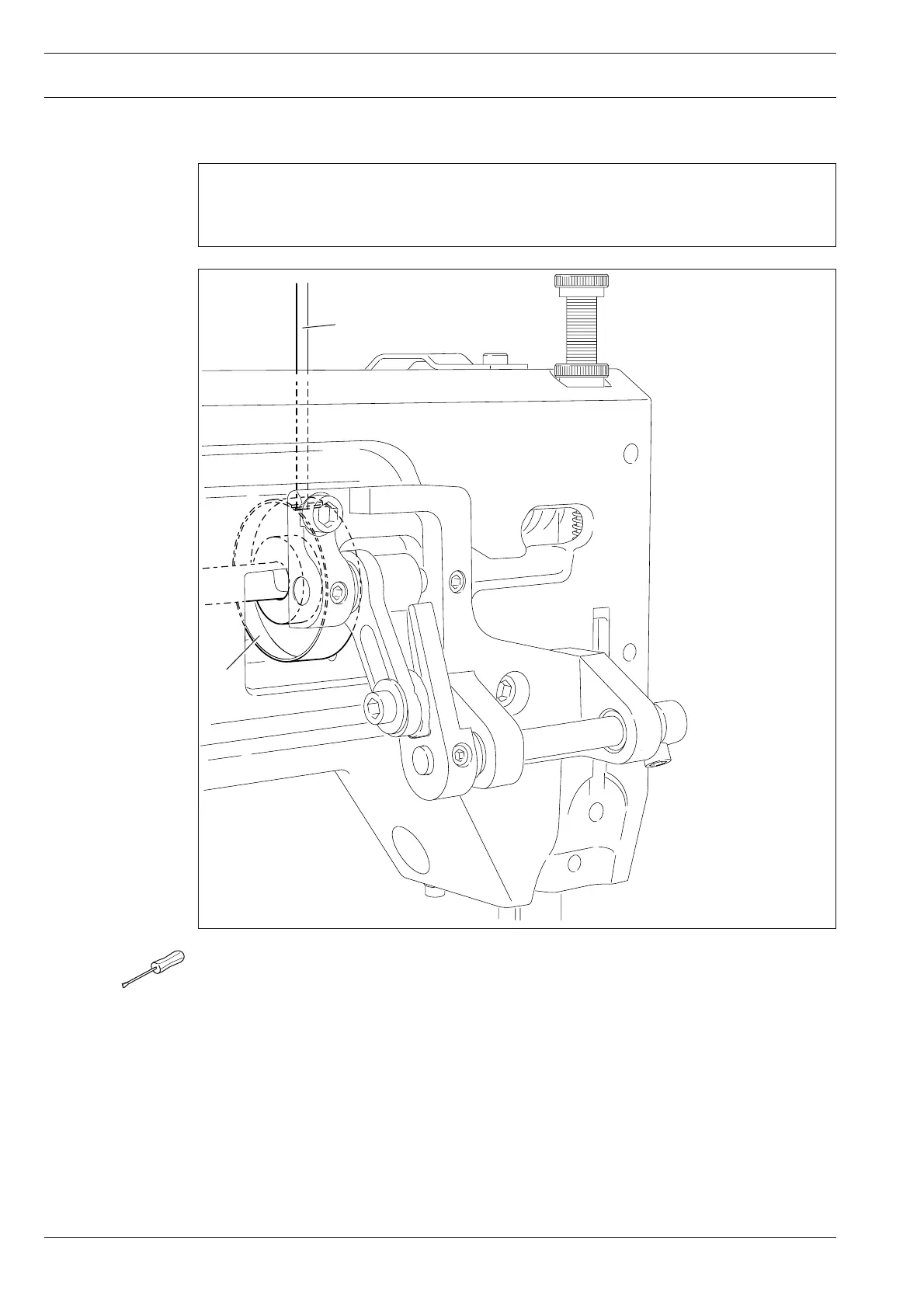

Fig. 12 - 10
● Adjust control cam 1 (2 grub screws) in accordance with the requirement.
1
2
