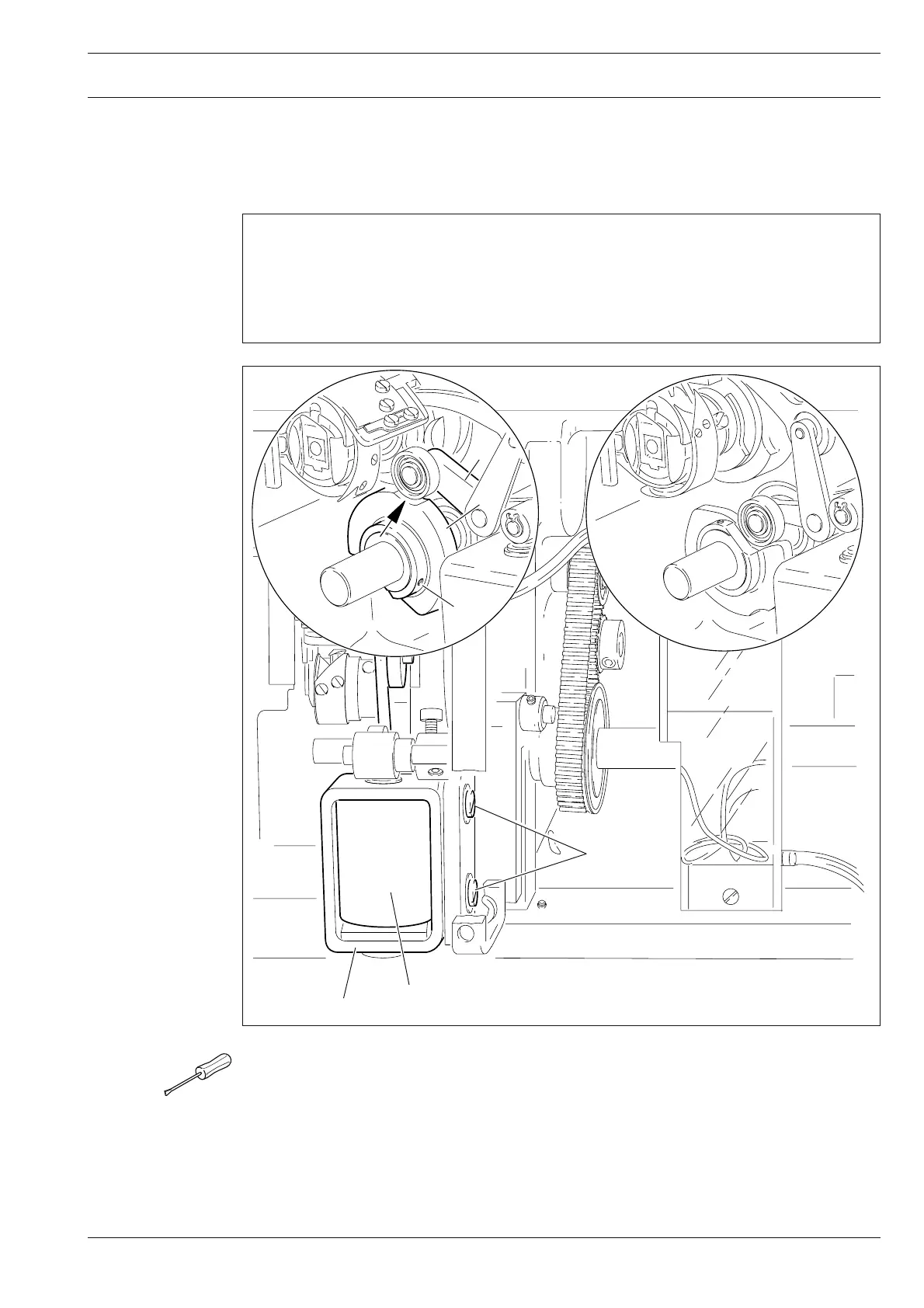

Fig. 12 - 13
12.06 Adjusting the thread trimming device –900/24
12
.06.01 Adjusting the solenoid / preliminary adjustment of the control cam
Requirement
1. When solenoid 3 is completely extended, roller lever 4 should be at the lowest point of
the control cam.
2. When the needle bar is positioned at 1.8 mm after b.d.c. (needle rise position), roller
lever 4 should engage in the appropriate recess of the control cam.
● Adjust solenoid holder 1 (screws 2) in accordance with requirement 1.
● Adjust control cam 5 (screws 6) in accordance with requirement 2.
96-013
4
6
5
96-031
2
3
1
