Adjustment
12 - 16
3
12.06.03 Knife position
Requirement
1. There must be a distance of 4 mm between the cutting edge of the knife and the needle.
2. The right edge of the knife 1 must not extend beyond the right edge of the thread
catcher (see arrow).
● Bring the needle bar to BDC.
● Slide knife 1 under the locking tab and align according to requirement 1.
● Tighten screw 2 lightly.
● Adjust thread catcher carrier 3 by hand until the wedge point in the thread catcher is
positioned just in front of the cutting edge of the knife.
● Align knife 1 according to requirement 2 and tighten screw 2.

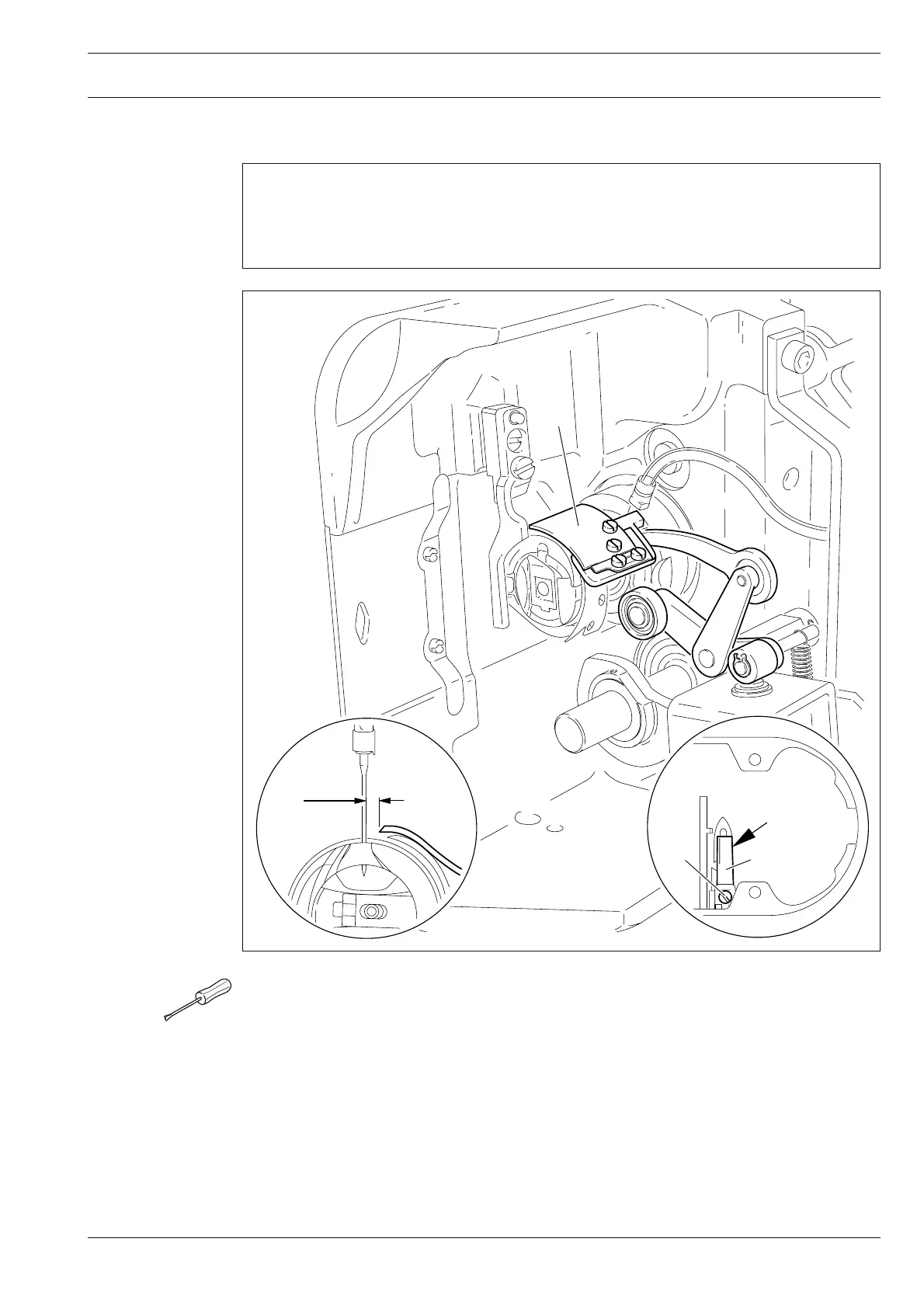

Fig. 12 - 15
1
4 mm
1
2
