Pfaff 1183-712/02 Adjustment Manual

Adjustment
12 - 3
6
-
014
2
3
12.05 Adjusting the basic machine
12.05.01 Preliminary adjustment of the needle height
Requirement
When the needle bar 1 is at its t.d.c., the needle point should be 21 mm above the needle plate.

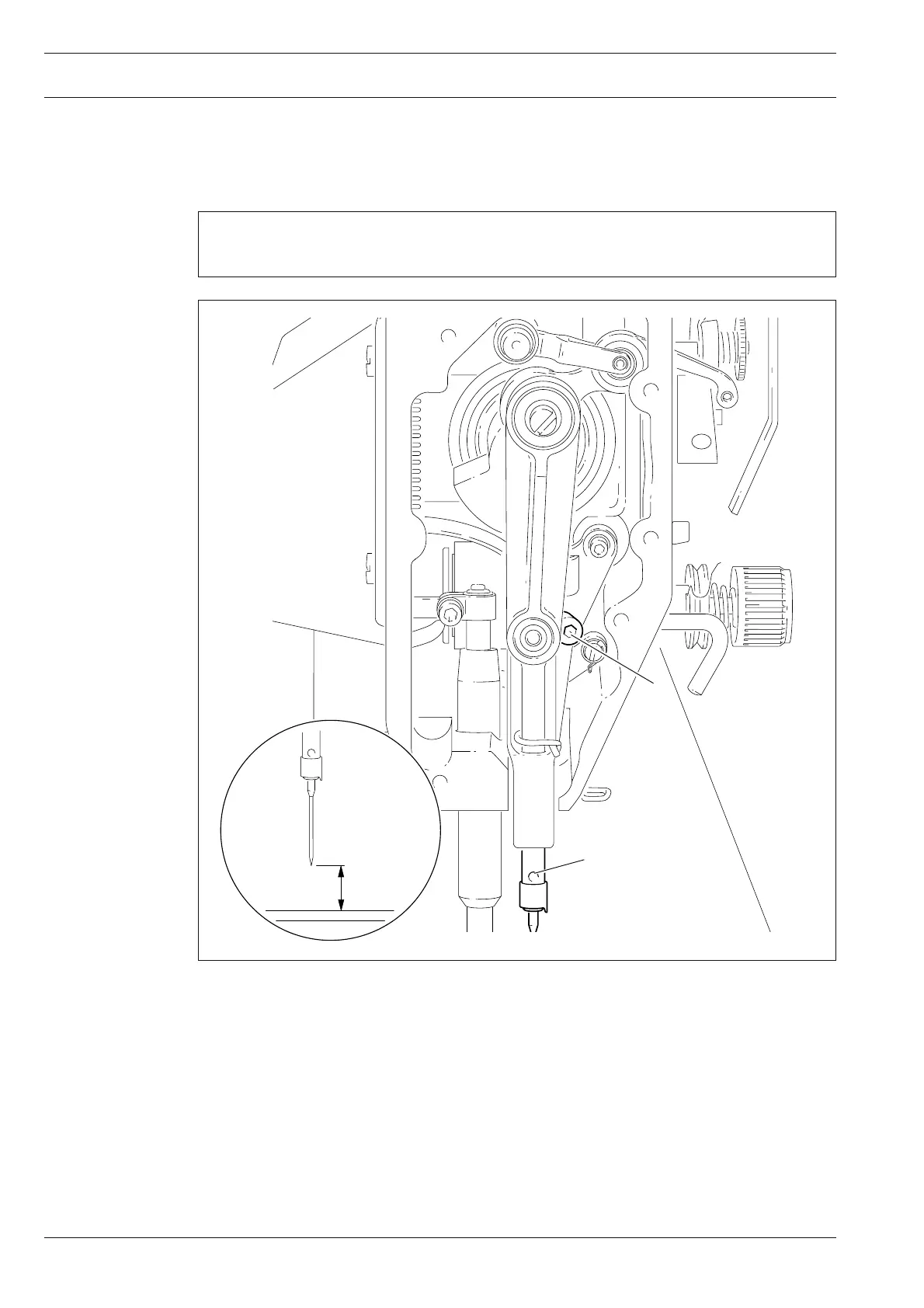

Fig. 12 - 02
● Without twisting it, adjust needle bar 1 (screw 2) in accordance with the requirement.
96-037
21 mm
