Adjustment
12 - 17
12.06.04 Front point of reversal of the thread catcher
Requirement
At the front point of reversal of thread catcher 4, the tip of the thread catcher cutout
should be 1 mm in front of the bobbin case position finger 5.
● Swing roller lever 1 to the deepest point of the control cam.
● Adjust lever 2 (screws 3) in accordance with the requirement.

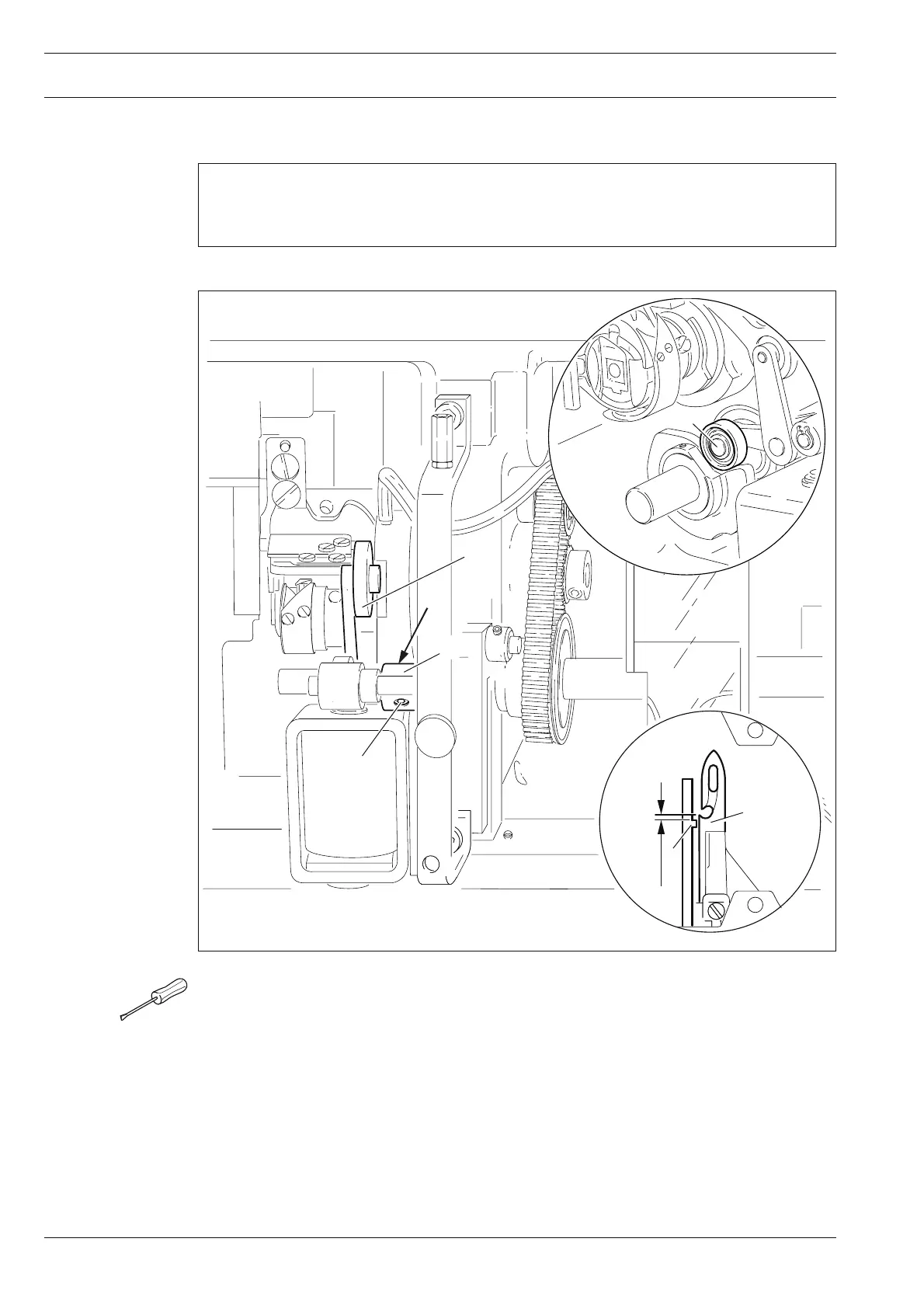

Fig. 12 - 16
5
4
1 mm
96-031
1
1
2
3
3
