Adjustment
12 - 19
12.06.06 Needle thread tension release
Requirement
1. The magnet lift should be 1.5 mm.
2. When the magnet 5 is operated by hand, there should be a distance of at least 0.5 mm
between the tension discs 6.

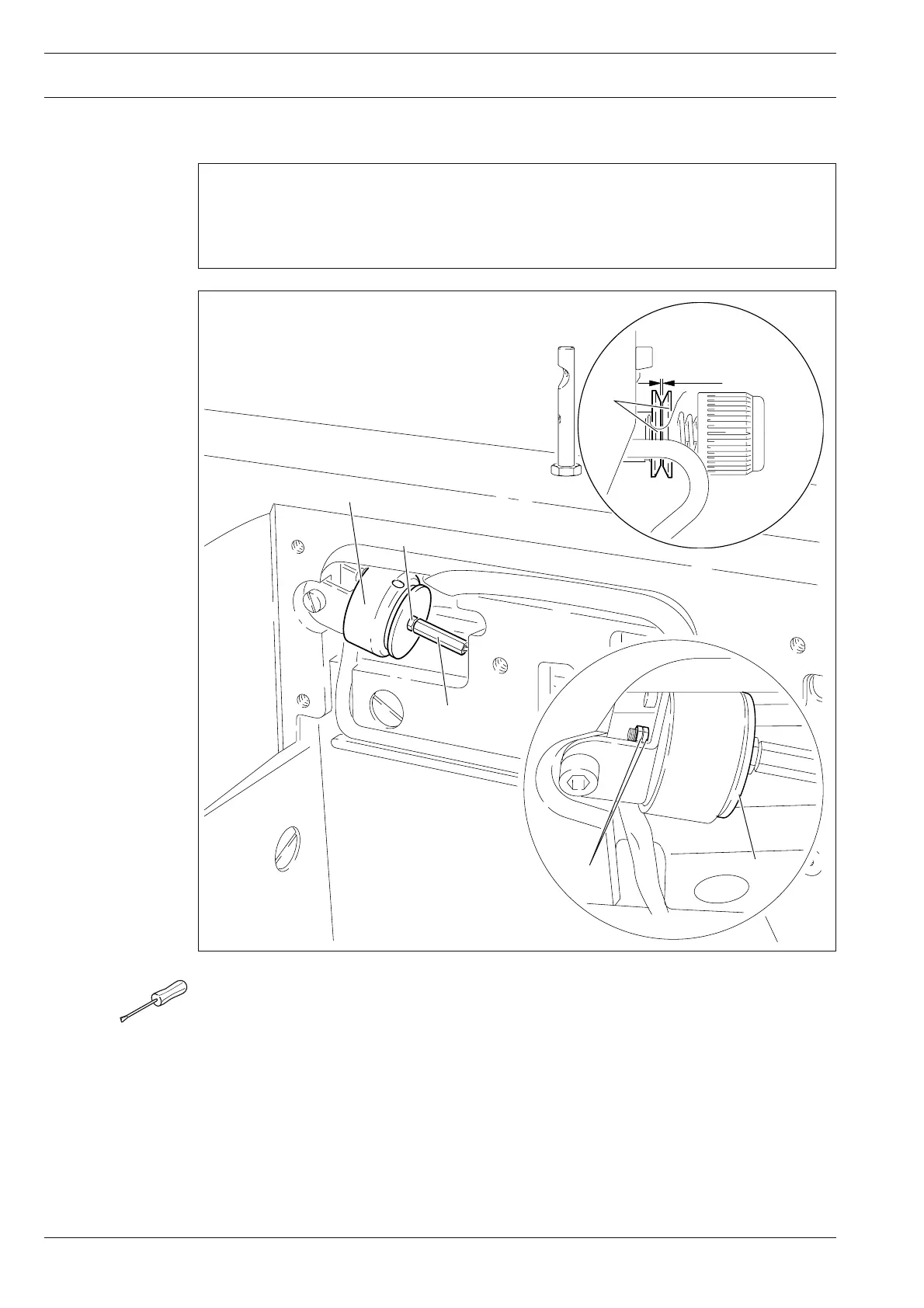

Fig. 12 - 18
● Adjust disc 1 (nuts 2) according to the requirement.
● Adjust screw 3 (nut 4) according to the requirement.
3
4
5
2
1
57-05
0,5 mm
6
