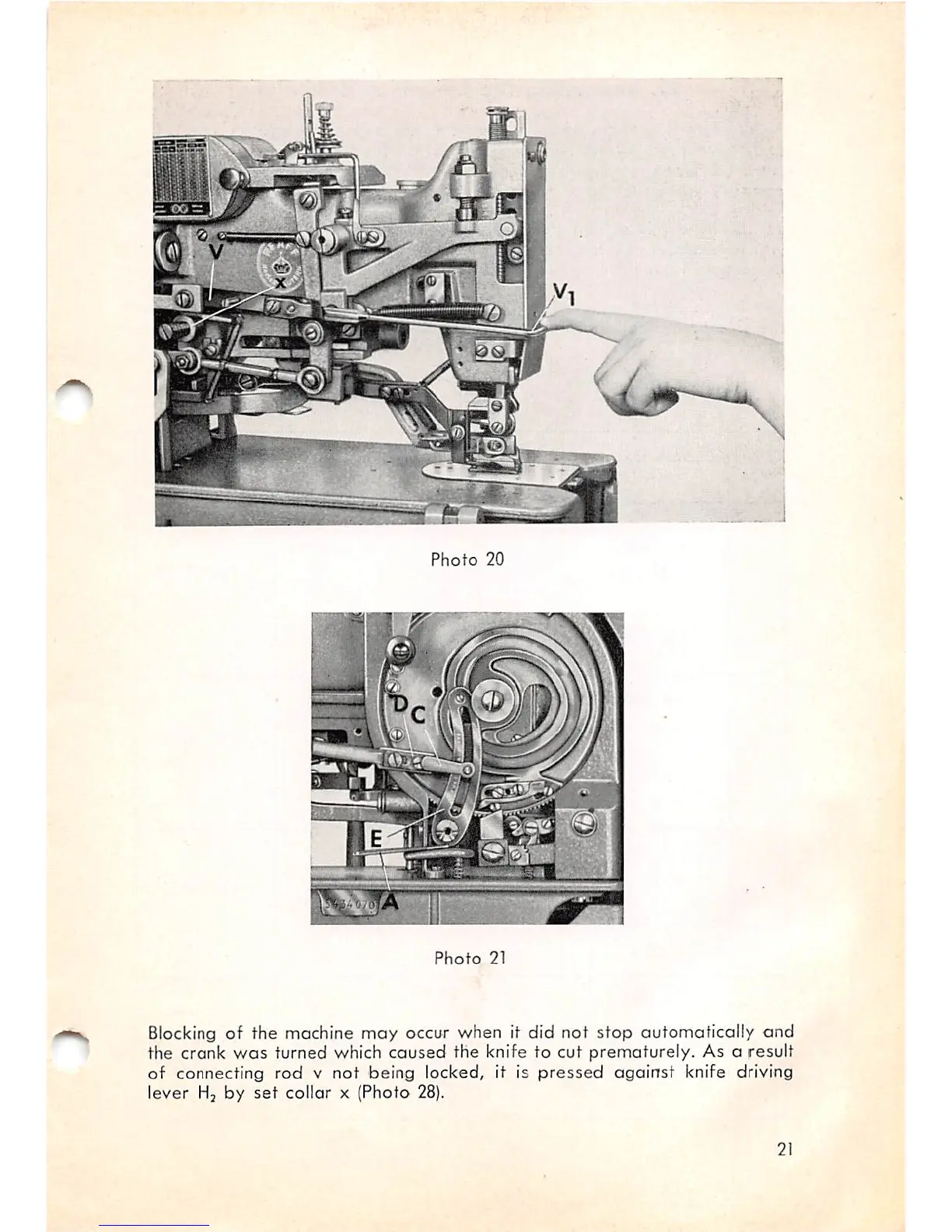

Blocking
of
the
machine
may
occur
when
it
did
not
stop
automatically
and
the
crank
was
turned
which
caused
the
knife
to
cut
prematurely.
As
a
result
of
connecting
rod
v
not
being
locked,
it
is
pressed
against
knife
driving
lever
Hj
by
set
collar
x
(Photo
28).
21
From the library of: Superior Sewing Machine & Supply LLC
22
24
Table of Contents
Table of Contents
2
Setting up the Machine
7
Cleaning and Lubricating
9
Needle and Thread
12
Inserting the Needle
13
Threading the Needle
13
Winding the Bobbin
14
Changing the Bobbin
15
Threading the Bobbin Cose
15
Regulating the Bobbin Thread Tension
17
Regulating the Needle Threod Tension
18
Placement of the Work
20
Starting the Mochine
20
Stopping the Machine
21
Stopping the Machine While Sewing
21
Regulating the Length of Buttonhole
24
Changing the Number of Stitches Per Buttonhole
26
Changing the Width of Bcur and Parallel
27
Adjusting the Position of the Buttonhole in Relation to the Cutting Space
28
Exchanging the Buttonhole Knife
28
Regulating the Distonce between Parallels
28
Proper Position of Knife Holder
29
The Needle Thread Trimmer
29
The Bobbin Thread Trimmer
31
Pulling off the Needle Thread and Releasing the Top Tension
33
The Knife Action
34
Dismantling the Hook
35
Timing the Hook
36
Changing the Buffer Spring
39
Regulating the Pressure on the Material
39
Adjusting the Stop Motion Lever
40
Adjusting the Brake Lever
41
Adjusting the Tripping Lever
41
Adjusting the Hand Stop Lever
43
Adjusting the Stop Tripping Segment
44
Adjusting the Bar Tripping Segment
46
Adjusting the Needle Bar Zero Lug
46
Adjusting the Starting Lever
48
Adjusting the Tension Release Tripping Point
48
The Feed Cam Broke
48
Trouble Shooting
49
