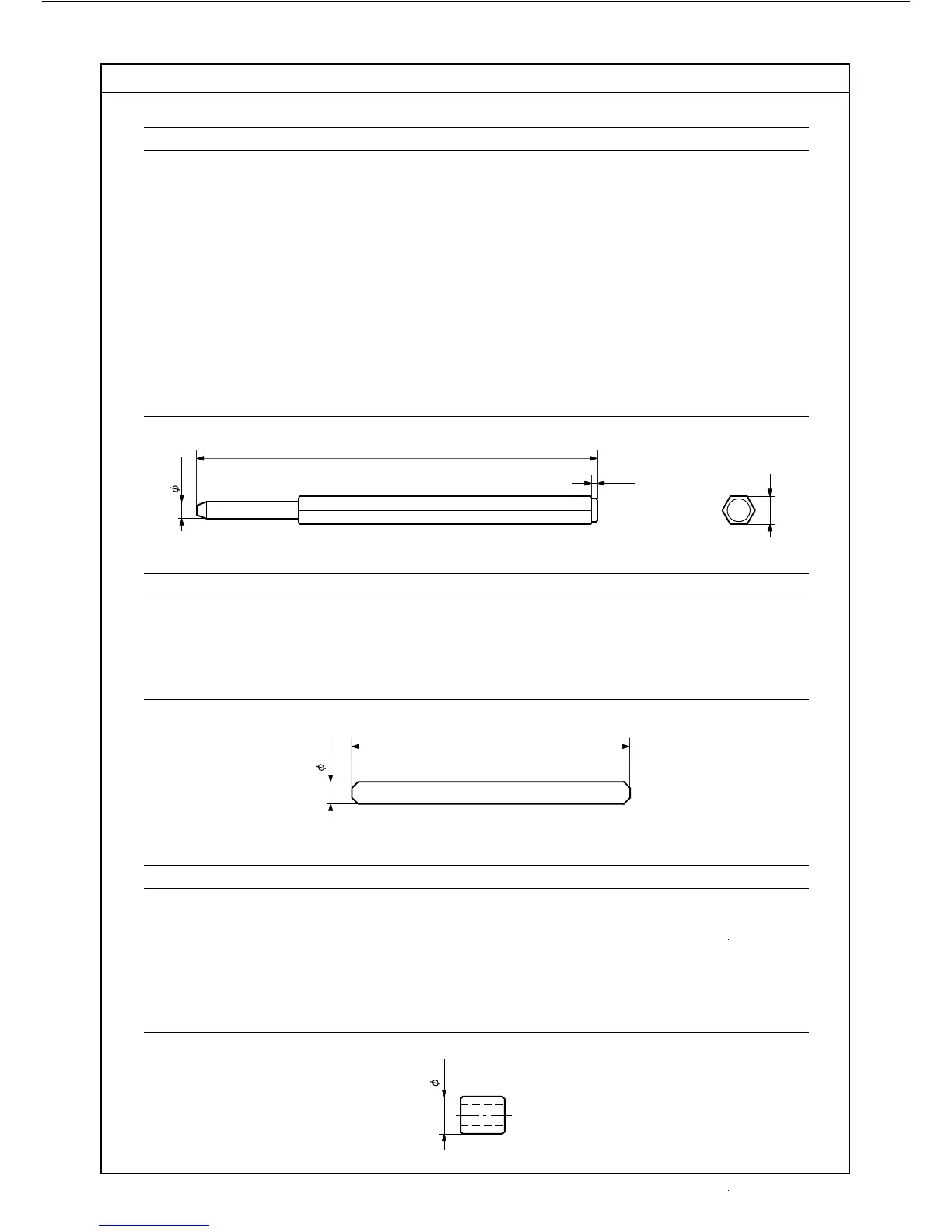

GAUGE FOR THE AFTER-SALES SERVICE G2
84.3
1.2
6
3.5
50
Dimension Use
Gauge No. 11684 84.3mm For the adjustment of initial point for
Blue & Yellow Decorative Thread Guides
1.2mm and for setting position of the DECO UNIT
sensor (Page.23-Fig.1,Page.27b-Fig.6,7,9)
3.5mm For the setting of stitch length unit
(setting the both gears(Page.23-Fig.1B&C))
6mm Height of Yellow Decorative Thread Guide
from thesurface of needle plate
Dimension Use
Gauge No. 11685 3.98mm For the setting of Differential Feed UNIT
(setting the both gears)
(Page.17-Fig.1-C&D)
Dimension Use
Gauge No. 11686 6.8mm For the setting of Differential Feed UNIT
(setting the position of feed rock lever,back
and differential regulator slide block
(Page.17-Fig.2-B))
6.8
3.98
