PFAFF 23
1
2
4
3
Normalnähen - zeitweise Mehrweite
einarbeiten
(Fig.22)
(Nur möglich bei Maschinen mit zusätzlicher
Tretplatte oder Schalteinrichtung -918/14)
Die Summe der eingestellten Mehrweite
und der Stichlänge soll 4,5 nicht überschrei-
ten, da ein Mehrbetrag zwangsläufig die
Stichlänge verringert.
Rändelscheibe 3 bis zum Anschlag nach "+"
drehen.
Rändelscheibe 2 drehen, bis die Zahl "0" gegen-
über der Markierung 4 steht.
Rändelscheibe 3 zurückdrehen, bis die ge-
wünschte Mehrweite (grüne Zahlen) der
Markierung 4 gegenübersteht.
Stichlänge einstellen (siehe Seite 18).
In Ruhestellung des linken Pedals arbeitet
die Maschine mit gleichem Haupt- und
Differentialtransporteurvorschub.
Durch Betätigen des linken Pedals bzw.
des Tastschalters 1 (Seite 26) wird die an
Rändelscheibe 3 eingestellte Mehrweite in
die untere Materiallage eingearbeitet.
Normal sewing and intermittent gathering
(Fig.22)
(only possible on machines with additional pedal
or switching system -918/14)
The total of the amount of fullness set plus
the stitch length must not exceed "4,5"
since exceeding this total would automati-
cally reduce the stitch length.
Turn thumb wheel 3 fully toward "+".
Turn thumb wheel 2 to set the "0" at mark 4.
Turn thumb wheel 3 back again to set the
required amount of fullness (green figures at
mark 4).
Set the stitch length (see page 18).
When the left pedal is in its resting position
the top and bottom feeds work synchron-
ously.
When the left pedal or push button 1 is
pressed the amount of gather set on scale 4
is worked into the bottom ply.

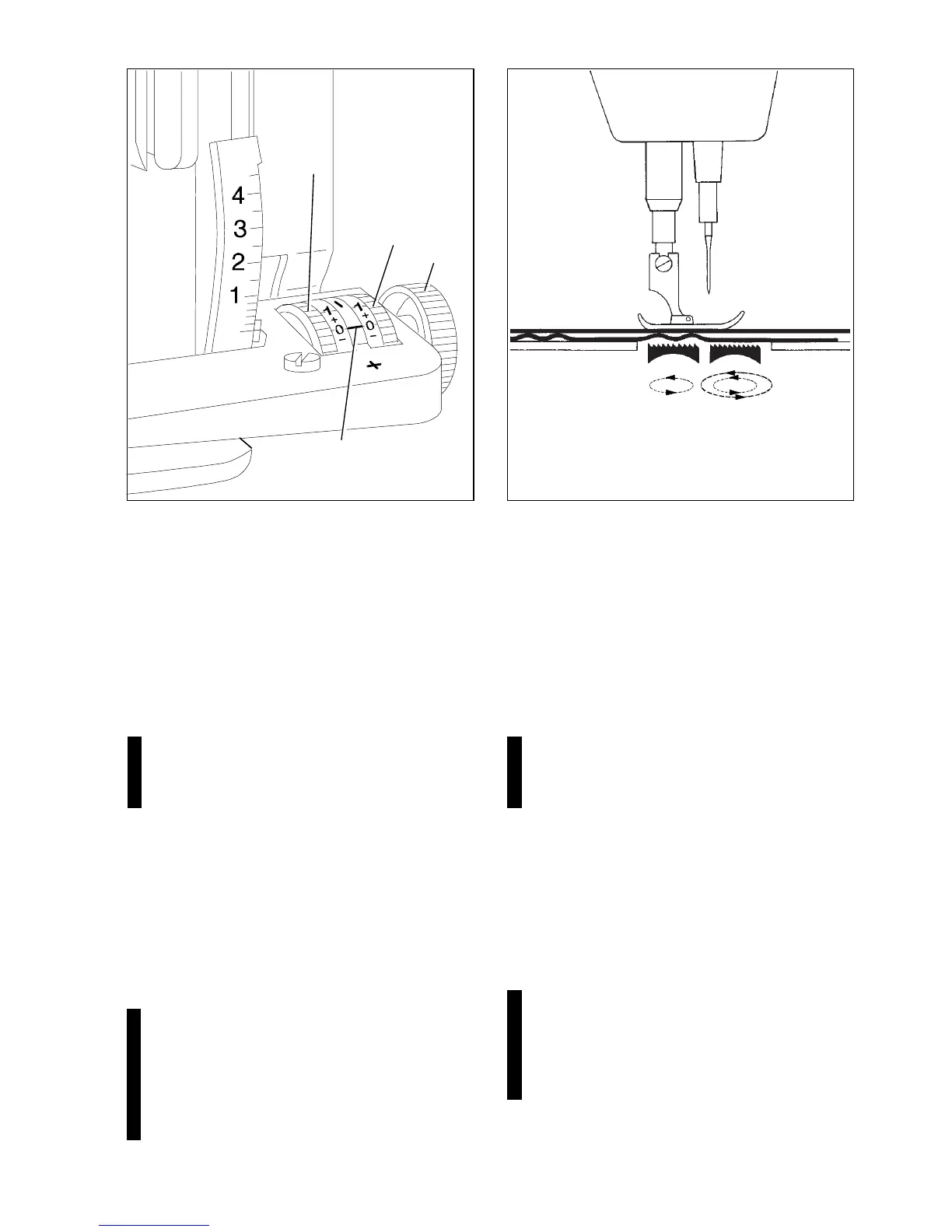

Fig. 21 Fig. 22
