Operating Manual | Attachment and Installation Cooling Units | Standard Controller (SC) – 400 V, 2~ | 086100115 46/68
4.6.9 Equipotential bonding connections and fuses
1 Functional equipotential bonding (M8-thread), for a
signal reception with low interference between the unit
and the switch cabinet.
2 Fuses (F2, F3) for transformer as protection against
fault current, overload current and short-circuit current.

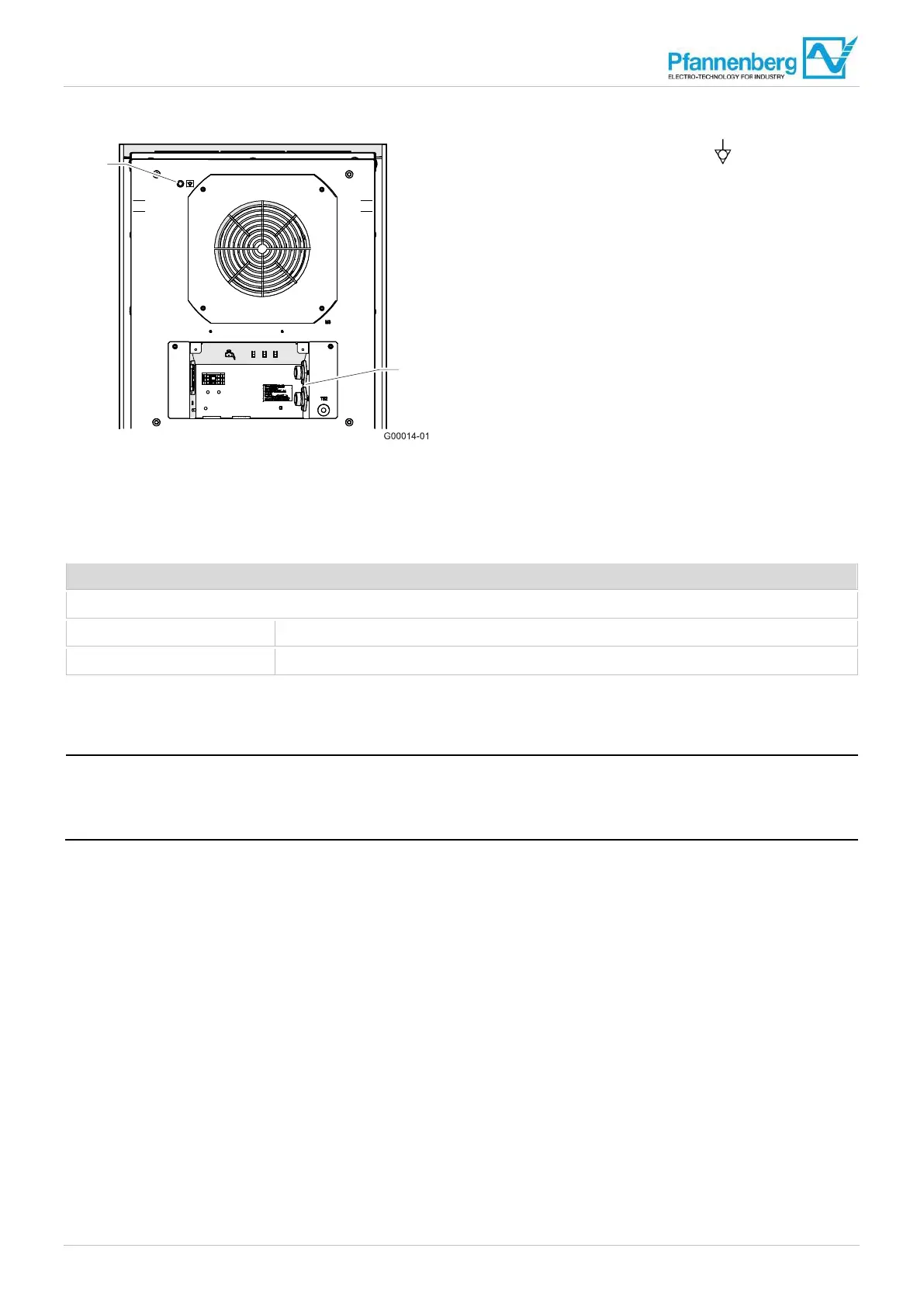

Fig. 21: Equipotential bonding/fuses
Replacement of fuses
In order to maintain the UL-conformity, only spare fuses with the following specification may be used:
Control fuse
Version: Category “Class CC”, slow-blow, suitable for transformer protection, voltage strength at least 480 V
DTI / DTS 6201 Maximum 4.0 A
DTI / DTS 6301 Maximum 6.25 A
Tab. 15: Fuse specification
Potential equalization provided by customer
If the device is to be integrated into the customer’s existing potential equalization for EMC reasons, a conductor can be
connected at the connecting point of the function potential equalization.
The connecting point is labeled with the necessary circuit symbol.
