3.5 Type plate
WARNING
Risk of injury
Risk of injury due to failure to heed the type plate specifications.
• Always observe the information on the type plate when installing and maintaining the units.
NOTE
• The type plate is on the back of the cooling unit housing.
• The figure shows the standard design adopted by EU member states. The type plate design may differ in other
countries.

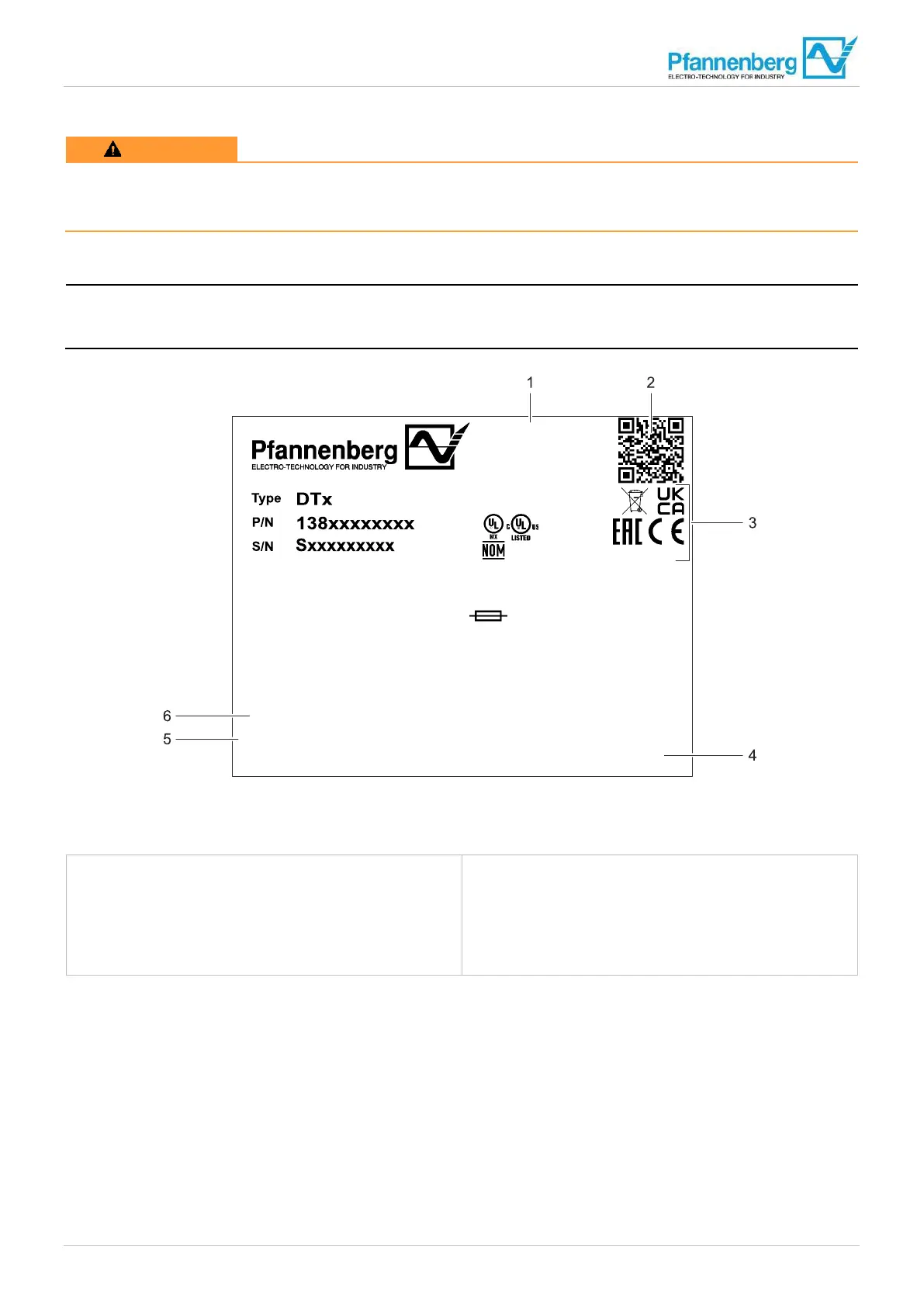

Fig. 8: Type plate (example)
1 Manufacturer address
2 QR code
3 Designations/approvals
4 Refrigerant notes: Hermetically sealed,
Contains fluorous greenhouse gases recorded in the
Kyoto Protocol
5 Refrigerant/quantity
6 Housing protection type/NEMA/UL protection
classification
G00005-01
