8.2.3 Exchanging the spring brackets on the sieve cleaning device
It is only necessary to change the spring brackets if they are broken. Indication of this
are given in chapter 9.
 Dismantle the sieve stack as described in chapter 8.2.2.

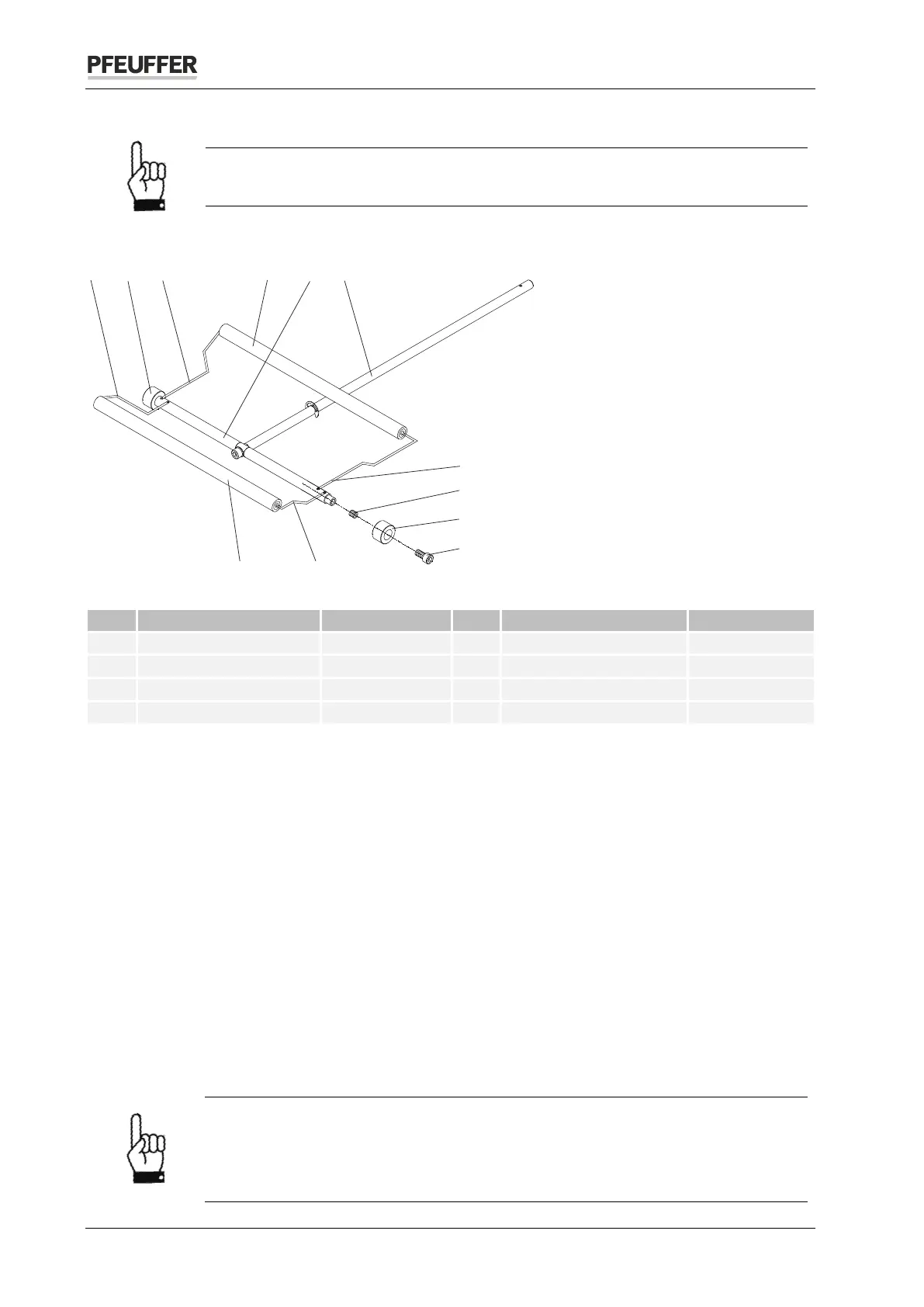

Figure 14: Sieve cleaning device, complete
Item
Designation
Article no.:
Item
Designation
Article no.:
1
Spring bracket, inner
3125 0060
5
Allen screw
2
Spring bracket, outer
3125 0065
6
Rubber roller
2440 0172
3
Grub screw
7
Shaft
4
Wheel
3121 0020
8
Push rod
Outer spring bracket
 Unscrew the Allen screw (2.5 mm) on the wheel (approx. 1 turn).
 Pull the old spring bracket out of the shaft and the rubber roller.
 Insert the new spring bracket.
 Tighten the Allen screw firmly again.
Inner spring bracket
 Unscrew and remove the Allen screw (2.5 mm) and the wheel.
 Unscrew the grub screw with hexagon socket (2 mm) behind that (approx. 1 rotation).
 Pull the old spring bracket out of the shaft and the rubber roller.
 Insert the new spring bracket.
 Tighten the grub screw firmly again.
 Push on the wheel.
 Tighten the Allen screw firmly again.
Also renew the rubber rollers and the wheel if they are severely worn. Article numbers
see chapter 10.
If necessary, oil the moving parts with a small drop of precision mechanism oil or
silicone spray.
1
3
5
2
1 4
2
4
6
6 7 8
