Maintenance and cleaning
Edition 1 | Operating instructions Sortimat 31 | 40
8.2.4 Renewing the internal fuse
There is a plug connection in the C19/C20 coupler on the left of the device. An internal glass microfuse
(1 A, slow-blow, 5 x 20 mm) is incorporated in this.
NOTE
Always refer to the type plate for the precise fuse rating!
Switch off the SORTIMAT using the main switch and disconnect the mains plug
from the electrical power supply.
Pull out the plug connection under the C19/C20 coupler
socket.
Renew the glass microfuse. Article number see chapter 10.
Insert the plug connection back into the C19/C20 coupler
socket.
The SORTIMAT is ready for operation.

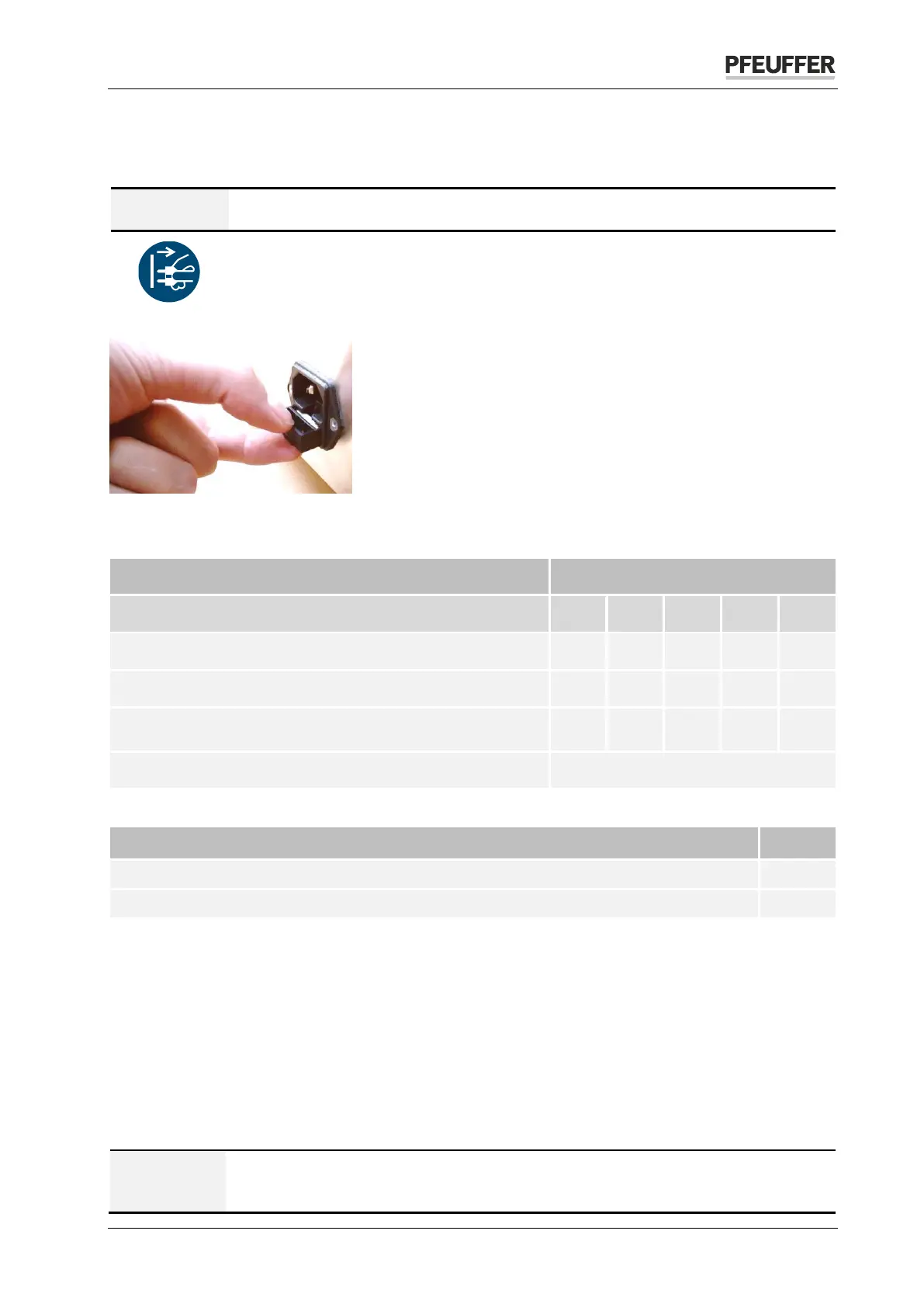

Figure 15: Renewal of the internal fuse
8.3 Inspection interval and function test
Sub-assembly Interval in one-shift working
Normal function tests: w m ¼ y ½ y y
Main switch ON/OFF X
Mains cable and connection X
Labels and warning notes in place and legible (by visual
inspection)
X
Electrical test according to VDE See DGUV regulation 3
8.4 General maintenance instructions
Checks Interval
Correct and firm seating of the entire machine ½ y
Correct and firm seating of the protective coverings
m
8.5 Checks
At the end of the work, check the following:
The work carried out is complete.
Check the wiring in the housing for kinks, chafing or charred points.
Damage on the covers or insulation.
Check that no tools have been left in or on the machine.
All subassemblies function correctly in setup or manual mode.
If all functions are correct, the machine can be handed over to the owner.
NOTE
Following cleaning, maintenance or exchanging wearing parts, check that all safety
devices are functioning correctly.
