8.2.2 Replacing sieves
It is only necessary to change the sieves if you want to sort a different product. See
chapter 11 for available sieves.

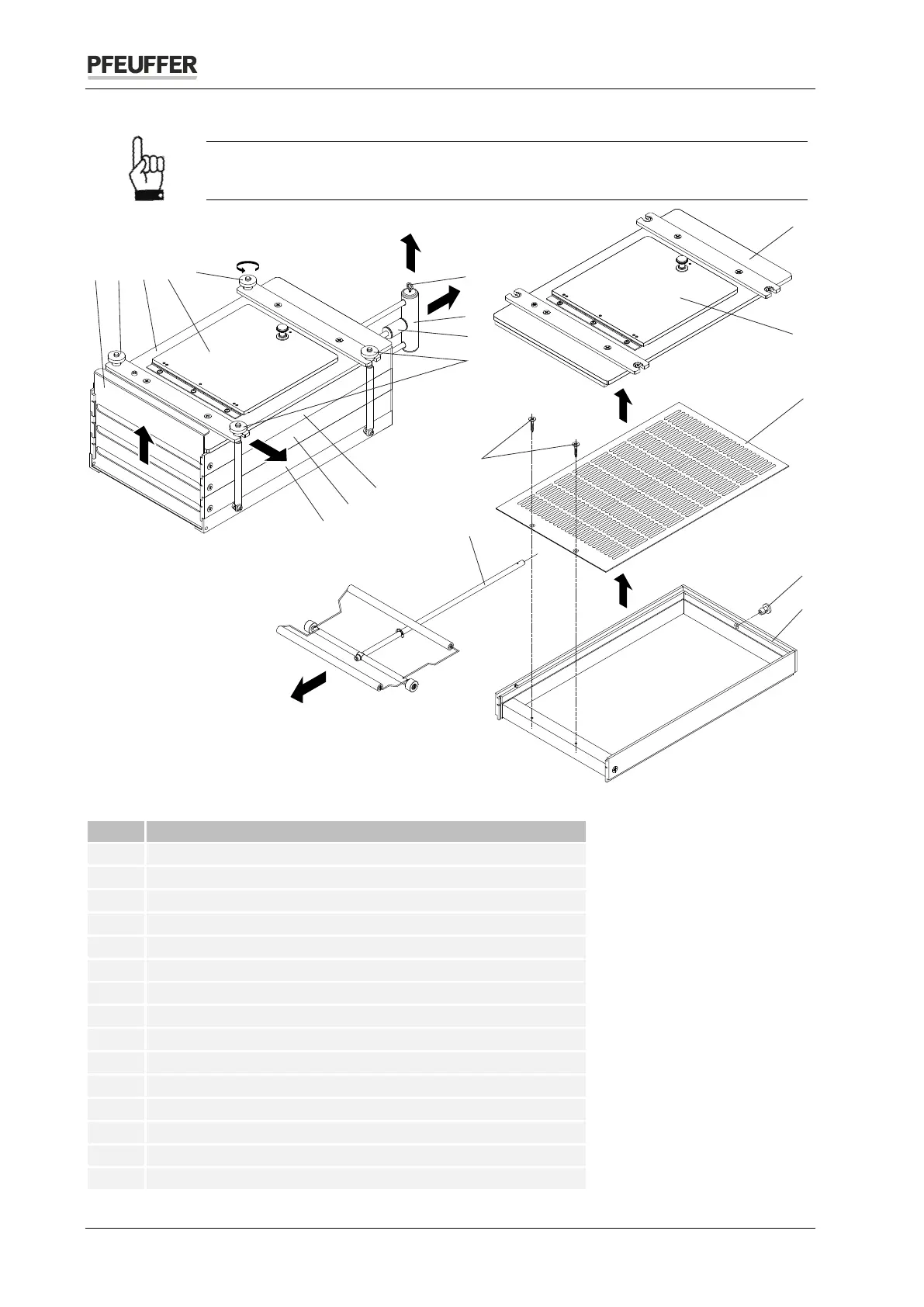

Figure 13: Sieve stack, complete
Item
Designation
1
Slide
2
Holding screw with knurled nut
3
Plexiglas cover
4
Filling cover
5
Securing hook
6
Pull handle
7
Stop (spacer)
8
Upper sieve frame (with barley 2.8 mm slit hole)
9
2nd sieve frame (with barley 2.5 mm slit hole)
10
3rd sieve frame (with barley 2.2 mm slit hole)
11
Sieve
12
Sealing plug (to be installed in uppermost sieve frame)
13
Sieve frame
14
Self-tapping screw
15
Sieve cleaning device, complete
1 2 3
5
6
7
2
2
8
9
10
4
3
11
12
13
14
15
4
