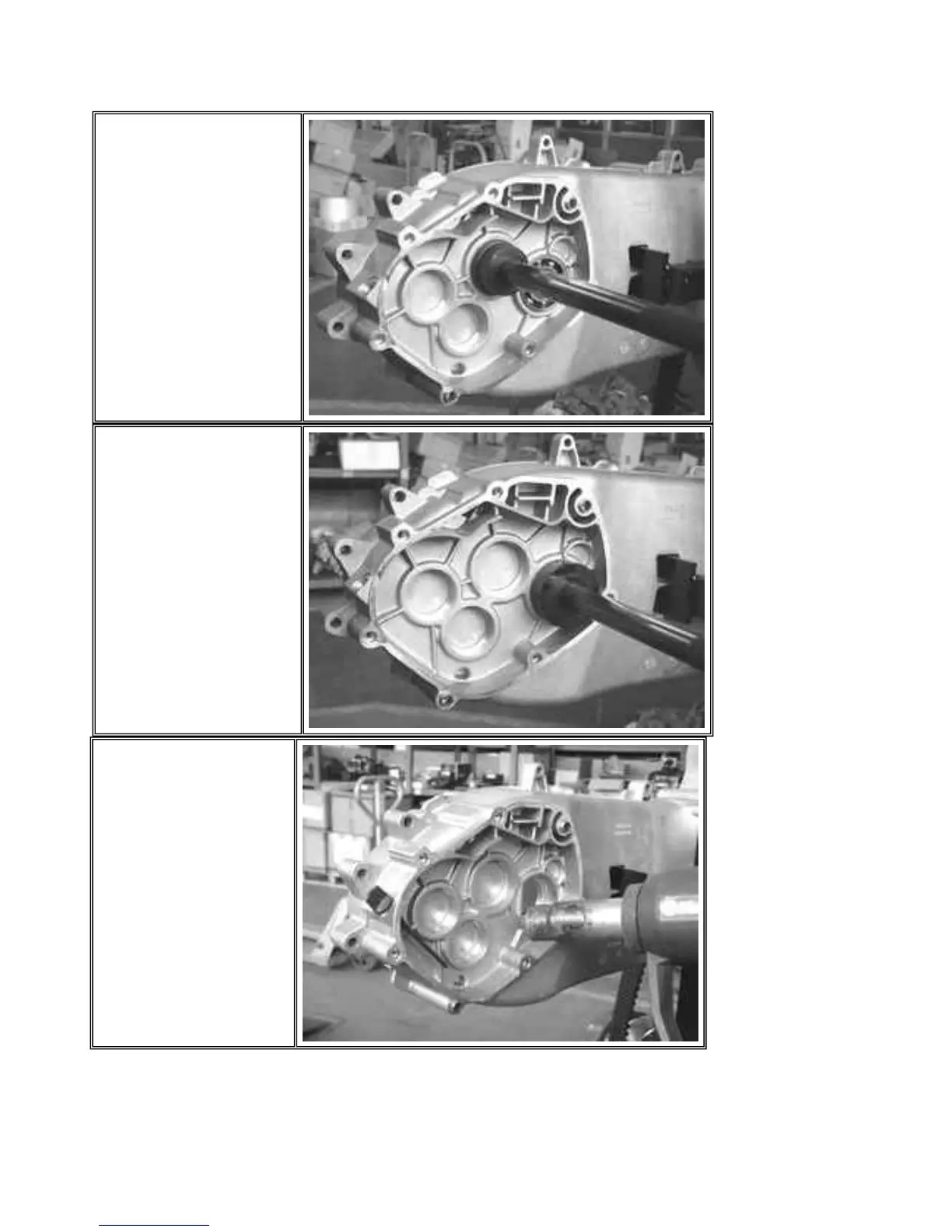

- Heat the intermediate gear
bearing seat.
- Insert the intermediate shaft
bearing by the specific tool.
N.B.: Place it with the
balls facing the hub
(this applies to bearings
with plastic cage).
Specific equipment and
tools:
Handle: 020376Y
Adapter 42x47 mm:
020359Y
20 mm guide: 020363Y
- Insert the driven pulley shaft
bearing until it abuts against
the bottom of the seat using
the specific tool.
N.B.: Place it with the
balls facing the hub
(this applies to bearings
with plastic cage).
Specific equipment and
tools:
Handle: 020376Y
Adapter 52x55 mm:
020360Y
25 mm guide: 020364Y
- Heat the crankcase by the
thermal gun.
Specific equipment and
tools:
Heater 020151Y
PGO BR-500 ENGINE
- Check that the matching surface exhibits nodeformations.
- Check the bearing capacity.
Incase of faults, replace the hub cover.
