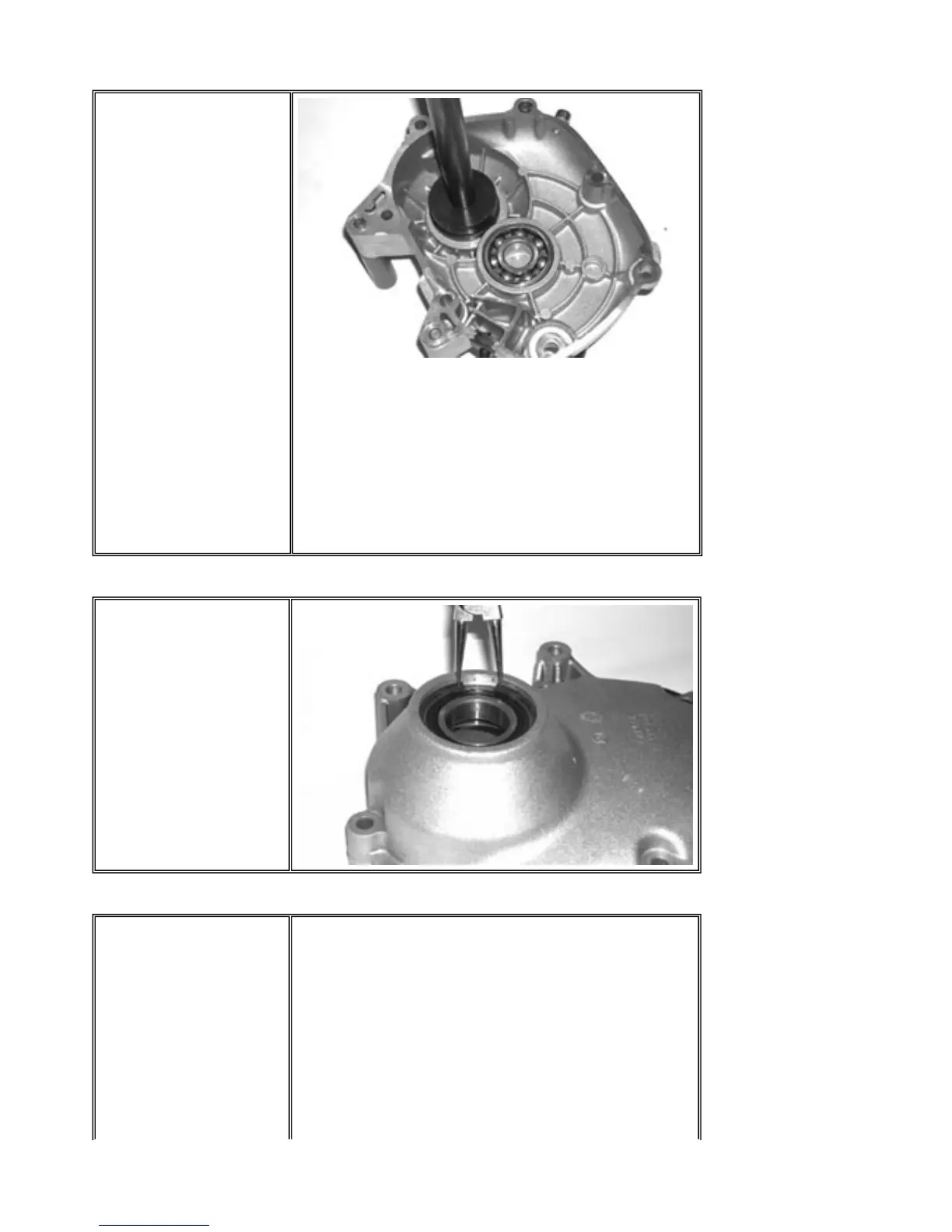

Support the hub
cover using the
column kit.
?φοντ σιζε=1
φαχε=∀Τιµεσ Νεω
Ροµαν∀>
Insert
the wheel axle oil
guard with the
sealing lip facing
the inside of the
cover.
?φοντ σιζε=1
φαχε=∀Τιµεσ Νεω
Ροµαν∀>
Place
the oil guard flush
with the crankcase.
Specific equipment
and tools:
Handle: 020376Y
Adapter 52x55:
020360Y
Column kit: 020476Y
- Replace the snap ring
- Heat the wheel axle
bearing seat from the cover
outside.
- Insert the wheel axle
bearing on the cover by the
specific punch until
abutment.
Specific equipment
and tools:
Handle 020376Y
Adapter 52x55 mm
PGO BR-500 ENGINE
P.10-28
Final Reduction
