Phanteks NV7 User Manual

18 19

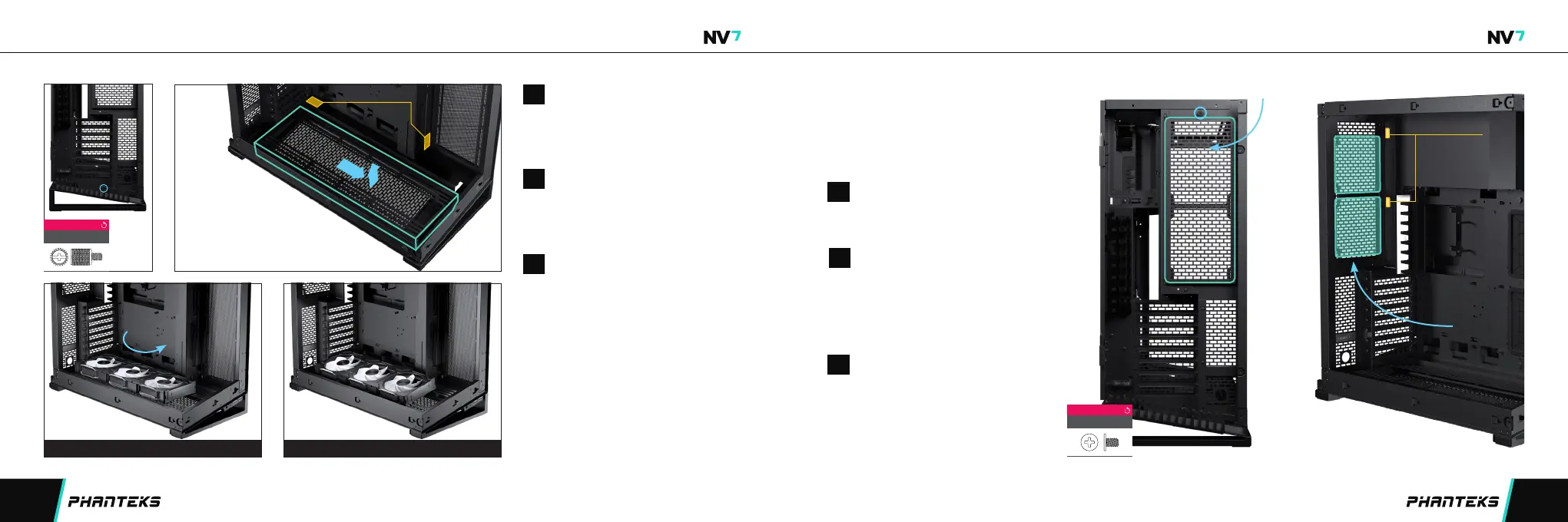

FAN & RADIATOR INSTALLATION
If no radiator is installed, re-install the
rear mesh panel.
Fan cables can be routed through the
cut-outs on the rear.
Install up to 2x 120 fans on the inside
of the rear chassis. A 240 radiator can
be installed on the outside of the rear
chassis.
Remove the screw on the rear and
remove the mesh panel.
The rear has space for up to 240 radiator
and 2x 120 fans. The fans can be installed
in front of the rear panel while the
radiator can be installed behind the rear
panel.
REAR FAN/RADIATOR POSITION
03 RE-INSTALL REAR MESH PANEL
02
01
INSTALL FANS/RADIATOR
REMOVE REAR MESH PANEL
1.
fans
2.
2.
radiator
SCREW 1x
REMOVE
routing cut-out
FAN & RADIATOR INSTALLATION
Install up to 3x 120mm / 3x 140 mm
fans and/or 280/360 radiator on to the
bracket.
Release the bracket by removing the
rear thumb screw. Slide the bracket to
the front to remove it.
Re-install the bracket by sliding it
towards the rear and secure it with the
thumb screw.
It is possible to install the bracket the
other way around for angled fans.
Fan cables can be routed through the
cut-outs on the rear and side.
Rotated bracket for angled fan positioningDefault bracket position for straight fans
BOTTOM FAN/RADIATOR BRACKET
02 INSTALL FANS/RADIATOR
01 REMOVE BOTTOM BRACKET
03 RE-INSTALL BOTTOM BRACKET
2
3
Rotate
180 degrees
for angled fans
1.
routing cut-outs
THUMB SCREW
1x
REMOVE

Phanteks NV7 Specifications

General

Type	Mid Tower
Motherboard Support	E-ATX, ATX, Micro-ATX, Mini-ITX
Material	Steel, Tempered Glass
Expansion Slots	7
PSU Support	ATX
Maximum CPU Cooler Height	185 mm
Radiator Support - Top	Up to 360 mm
Radiator Support - Side	Up to 360 mm
Radiator Support - Bottom	Up to 360 mm
Radiator Support - Rear	120mm
Fan Support - Rear	1x 120 mm
Drive Bays	2 x 3.5", 4 x 2.5"
Front I/O Ports	2 x USB 3.0, 1 x USB Type-C, Audio In/Out
Fan Support - Top	3x 120 mm
Fan Support - Bottom	3x 120 mm
Maximum GPU Length	450 mm
Fan Support - Side	3 x 120 mm
