Phanteks NV7 User Manual

12 13
REMOVE COVERS
Slide the D-RGB cover to the front of the chassis to remove it.
Remove the screw located on the right side of the chassis. Push
the motherboard cover down to remove it.
REMOVE D-RGB COVER
01 02

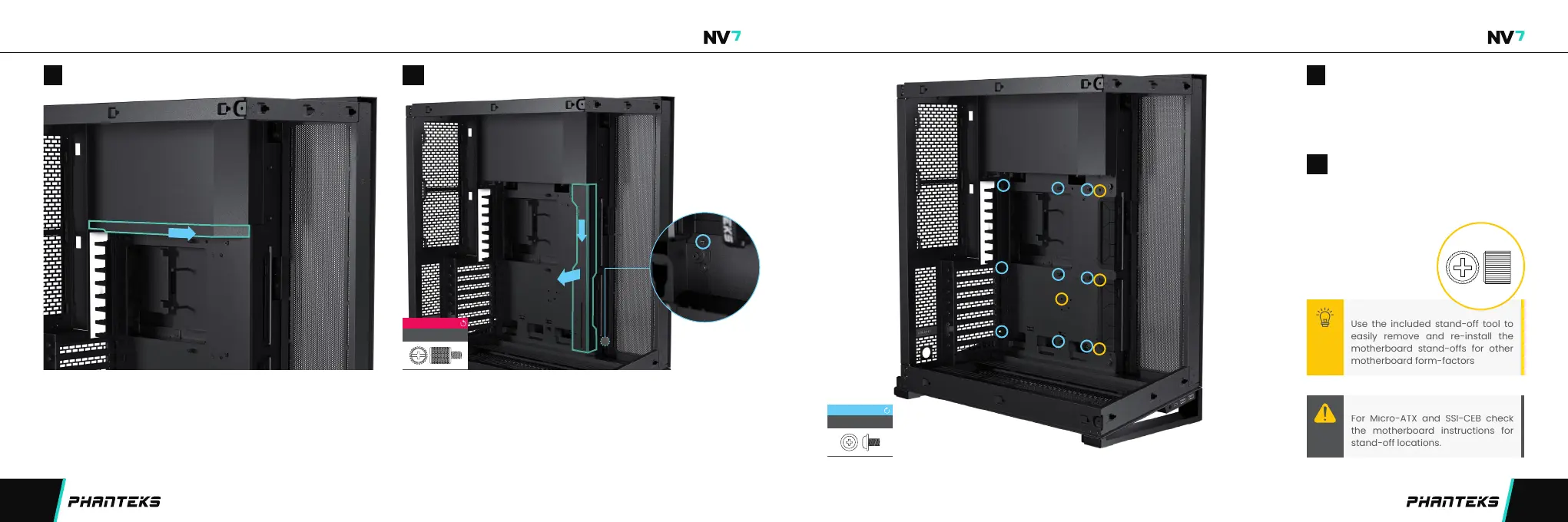

MOTHERBOARD INSTALLATION
Align the motherboard with the
screwholes on the chassis’ motherboard
tray.
Secure the motherboard with 9x
motherboard screws.
REMOVE MOTHERBOARD COVER ALIGN MOTHERBOARD
SECURE MOTHERBOARD
01
02
For Micro-ATX and SSI-CEB check
the motherboard instructions for
stand-off locations.
ATTENTION
1. unscrew
1.
2.
3.
MB SCREWS 9x
INSTALL
Use the included stand-off tool to
easily remove and re-install the
motherboard stand-offs for other
motherboard form-factors
PRO TIP
SCREW 1x
REMOVE

Phanteks NV7 Specifications

General

Type	Mid Tower
Motherboard Support	E-ATX, ATX, Micro-ATX, Mini-ITX
Material	Steel, Tempered Glass
Expansion Slots	7
PSU Support	ATX
Maximum CPU Cooler Height	185 mm
Radiator Support - Top	Up to 360 mm
Radiator Support - Side	Up to 360 mm
Radiator Support - Bottom	Up to 360 mm
Radiator Support - Rear	120mm
Fan Support - Rear	1x 120 mm
Drive Bays	2 x 3.5", 4 x 2.5"
Front I/O Ports	2 x USB 3.0, 1 x USB Type-C, Audio In/Out
Fan Support - Top	3x 120 mm
Fan Support - Bottom	3x 120 mm
Maximum GPU Length	450 mm
Fan Support - Side	3 x 120 mm
