Phanteks NV7 User Manual

16 17

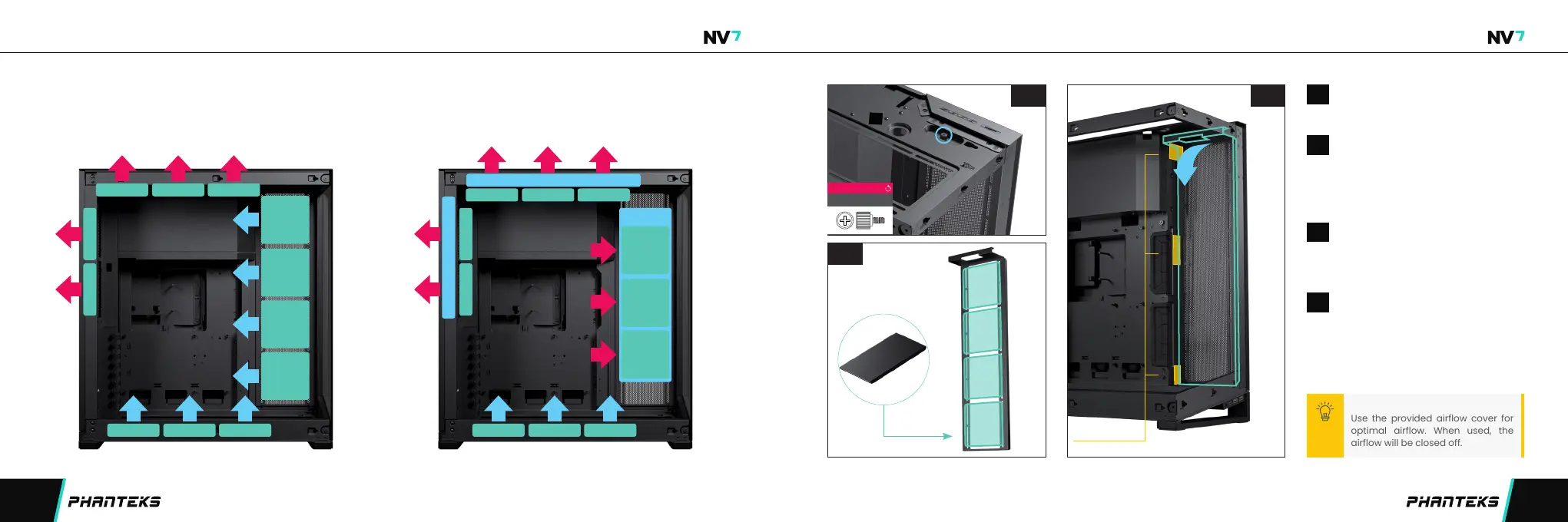

FAN & RADIATOR INSTALLATION
Remove the bracket by pulling the
handle at the top of the bracket and take
it out.
Remove the screw located on the top.
Install up to 4x 120 fans/360 radiator on
the bracket.
Re-install the bracket and secure it with
the screw located on the top.
Use the 3 cut-outs to route all fan cables.
SIDE FAN/RADIATOR BRACKET
02 PULL & TAKE OUT BRACKET
01 REMOVE SCREW
03 INSTALL FANS/RADIATOR
04 INSTALL SIDE BRACKET
A.
B.
routing cut-outs
C.
2.
Use the provided airow cover for
optimal airow. When used, the
airow will be closed off.
PRO TIP
1.
3.
THUMB SCREW 1x
REMOVE
1 2
3
RECOMMENDED AIRFLOW CONFIGURATIONS
AIR-COOLED CONFIGURATION WATER COOLED CONFIGURATION
Side: Intake Top: Exhaust
Bottom: Intake Rear: Exhaust
Side: Exhaust Top: Exhaust
Bottom: Intake Rear: Exhaust
up to 360

Phanteks NV7 Specifications

General

Type	Mid Tower
Motherboard Support	E-ATX, ATX, Micro-ATX, Mini-ITX
Material	Steel, Tempered Glass
Expansion Slots	7
PSU Support	ATX
Maximum CPU Cooler Height	185 mm
Radiator Support - Top	Up to 360 mm
Radiator Support - Side	Up to 360 mm
Radiator Support - Bottom	Up to 360 mm
Radiator Support - Rear	120mm
Fan Support - Rear	1x 120 mm
Drive Bays	2 x 3.5", 4 x 2.5"
Front I/O Ports	2 x USB 3.0, 1 x USB Type-C, Audio In/Out
Fan Support - Top	3x 120 mm
Fan Support - Bottom	3x 120 mm
Maximum GPU Length	450 mm
Fan Support - Side	3 x 120 mm
