Phanteks NV7 User Manual

10 11

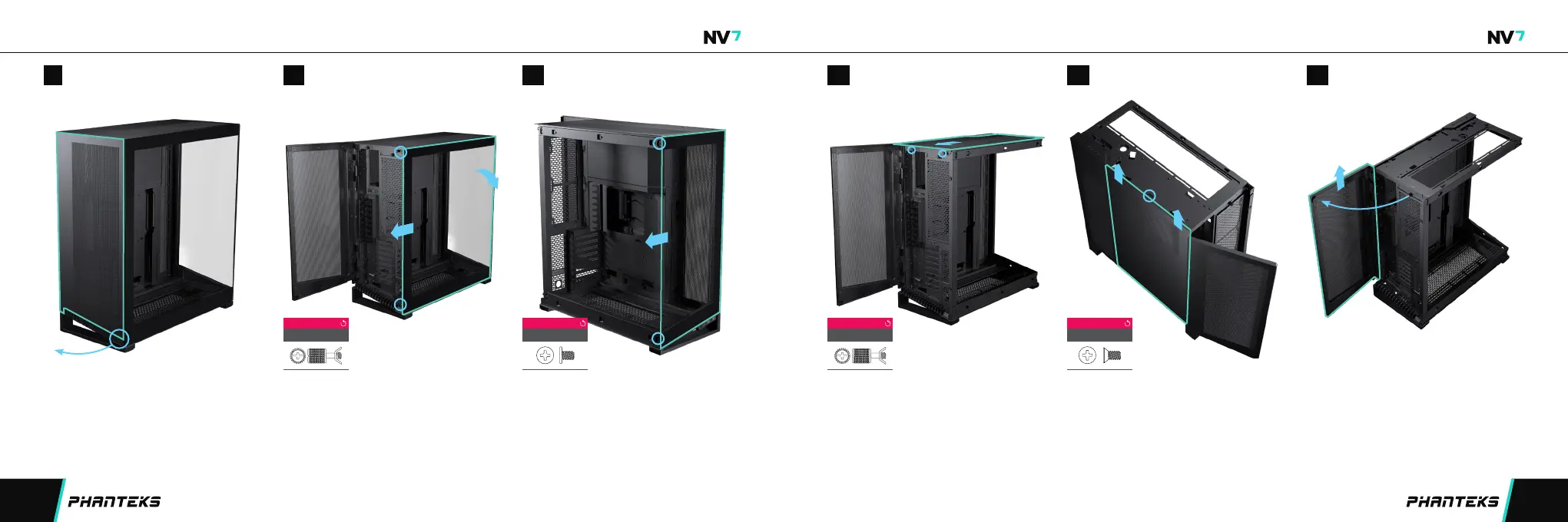

REMOVE EXTERNAL PANELS
Open the rear door by pulling it from the
bottom right corner.
Loosen the 2 thumb screws in the rear,
slide the glass side panel to the rear and
tilt it sideways to remove it.
Unscrew the 2 screws from the left side
and slide the panel to the left to remove
it. Optionally, this panel can be left on
during installation.
OPEN REAR PANEL REMOVE GLASS SIDE PANEL REMOVE GLASS FRONT PANEL
01 02 03
REMOVE EXTERNAL PANELS
Loosen the 2 thumb screws of the top
panel in the rear. Slide the top panel to
the rear to remove it.
Remove the screw on the top and slide
the right panel upwards to remove it.
Optionally, remove the back door by
sliding it upwards when it is in open
position.
REMOVE TOP PANEL REMOVE RIGHT SIDE PANEL REMOVE REAR DOOR
04 05 06
1.
2.
1.
1.
1.
2.
1.
1.
2.
1.
2.
1.
2.
THUMB SCREW 2x
LOOSEN
THUMB SCREW 2x
LOOSEN
SCREW 1x
REMOVE
SCREW 2x
REMOVE
3.
2.

Phanteks NV7 Specifications

General

Type	Mid Tower
Motherboard Support	E-ATX, ATX, Micro-ATX, Mini-ITX
Material	Steel, Tempered Glass
Expansion Slots	7
PSU Support	ATX
Maximum CPU Cooler Height	185 mm
Radiator Support - Top	Up to 360 mm
Radiator Support - Side	Up to 360 mm
Radiator Support - Bottom	Up to 360 mm
Radiator Support - Rear	120mm
Fan Support - Rear	1x 120 mm
Drive Bays	2 x 3.5", 4 x 2.5"
Front I/O Ports	2 x USB 3.0, 1 x USB Type-C, Audio In/Out
Fan Support - Top	3x 120 mm
Fan Support - Bottom	3x 120 mm
Maximum GPU Length	450 mm
Fan Support - Side	3 x 120 mm
