4.6 Read Measured Values
The display can provide a variety of measured values related to the performance of the
drive and its load, such as currents, horsepower, and power factor. To read measured
values:
1. Press the HOME key to access Main Menu items, and then scroll with arrow keys
until READ MEASURED VALUES appears on the display.
2. Press ENTER to access this menu item.
3. Use the up and down arrow keys to scroll through the various values that you
wish to read.
Programming Tip
Press the HOME key at any time to return Home screen (operating status screen).

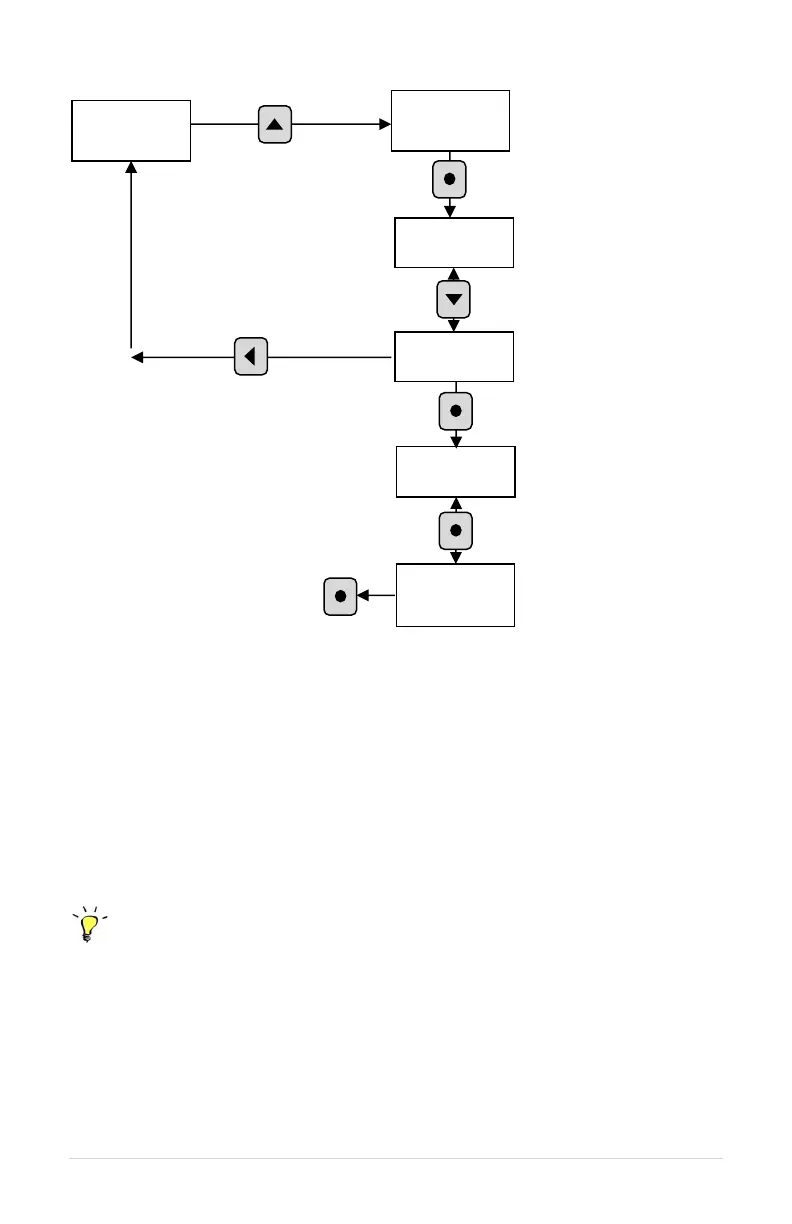

READ
