190CW9 LCD
DDC Instructions

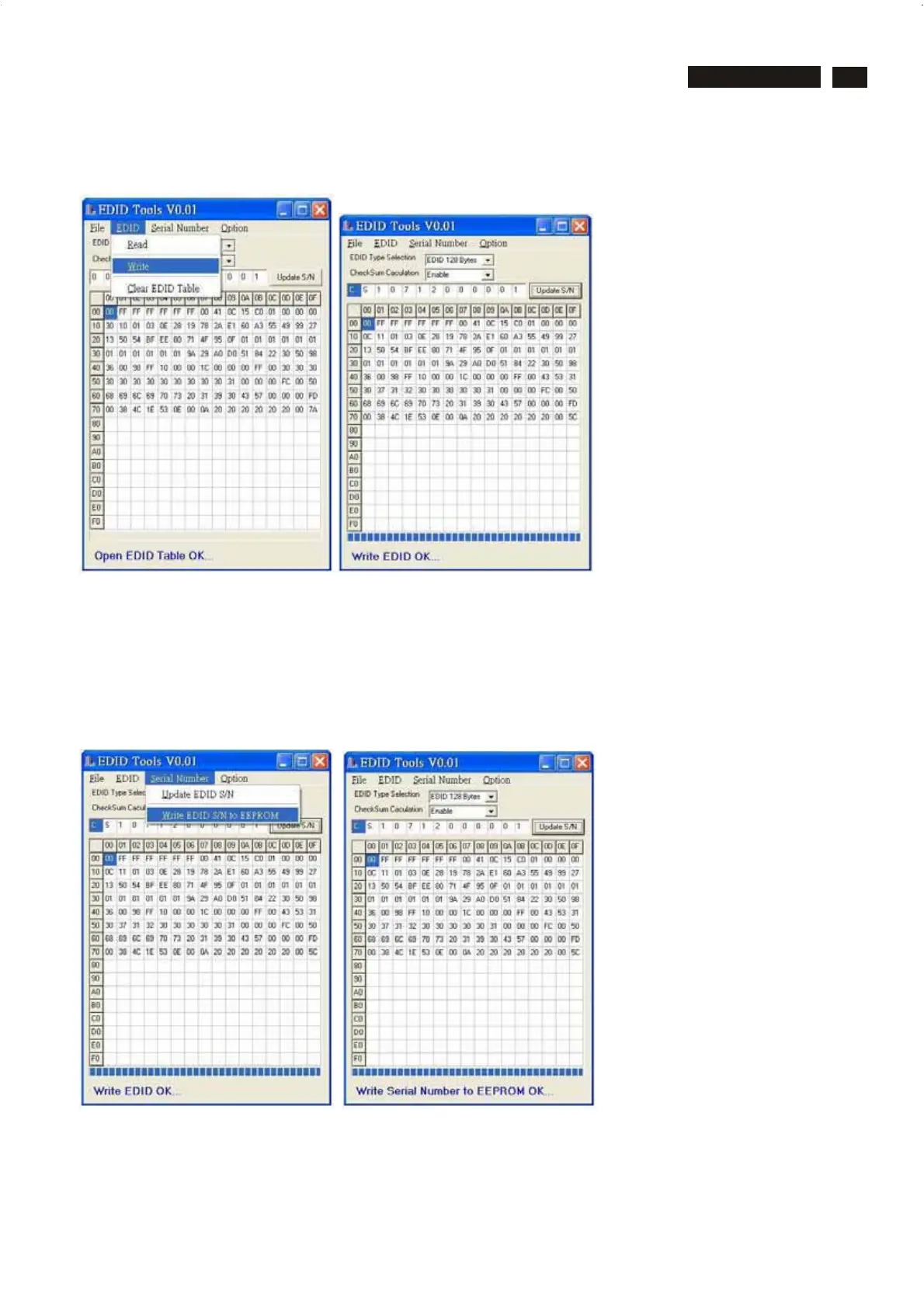

5. Press EDID->Write to write EDID data to EEPROM as shown in Fig. 9.
Fig.9
6. Connect DVI Cable to I2C Board.
Repeat Step 1~5 to write DVI EDID file.
7. Enter Factory Mode then Press the Serial Number->Write EDIDS/N to EEPROM as
shown in Fig.10
Note: If not enter Factory Mode, this Wrote EDID S/N will not work.
Fig.10
