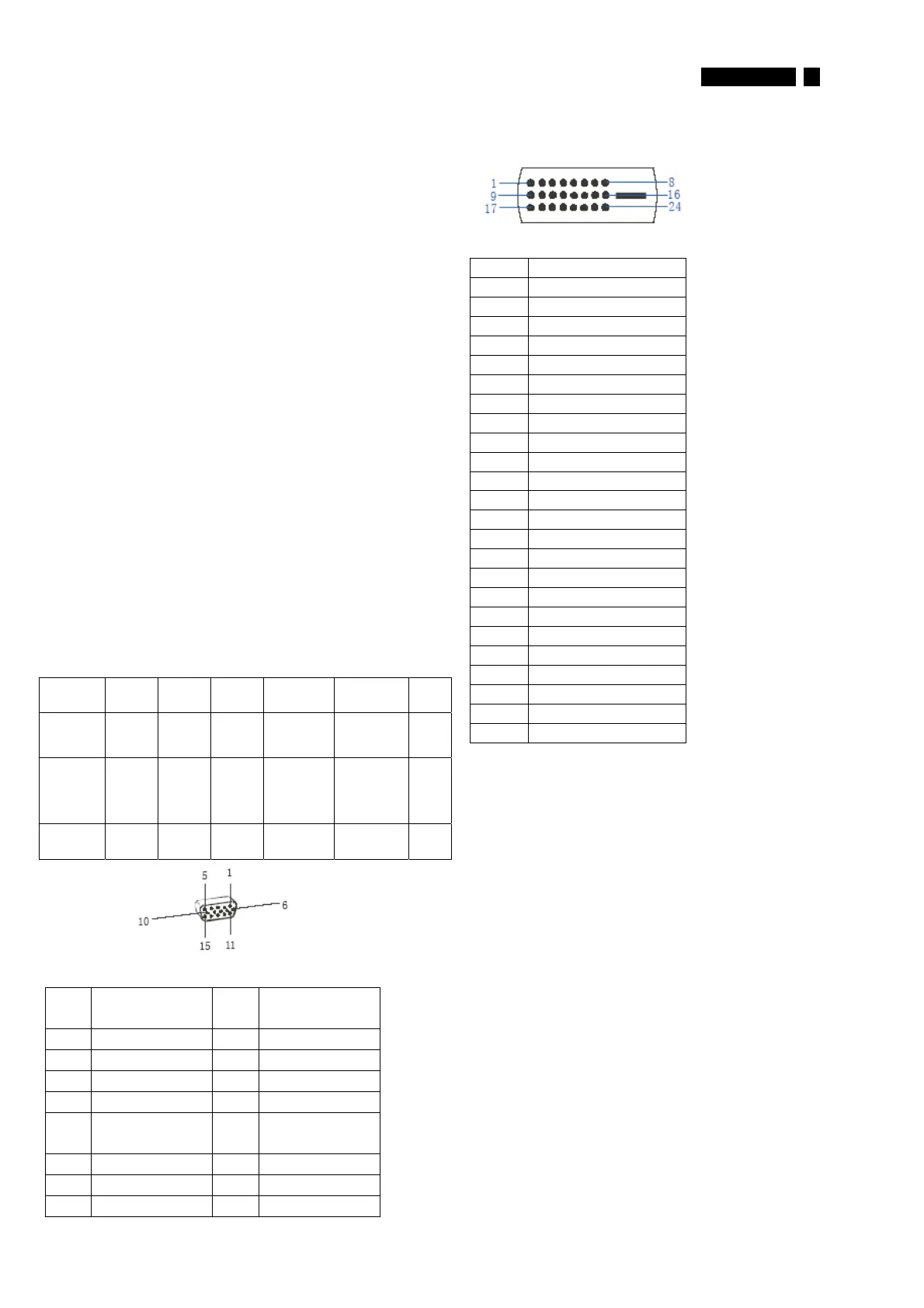

190CW9 LCD 3
Technical Data
SEC panel
Type NR. : SEC, LTM190M2-L31
Outside dimensions : 428 (H) x 278(V) x 17(D) mm (Typ.)
Pitch (mm) : 0.2835(H) x 0.2835(V) mm
Color pixel arrangement : RGB vertical stripes
Display surface : Hard coating (3H), Anti-glare treatment of
the front polarizer
Color depth : 16.7M colors
Backlight : CCFL edge light system
Active area ( WxH ) : 408.24 (H) x 255.15 (V)
View angle : R/L 160(Typ.), U/D 160(Typ.)
Contrast ratio : 1000:1(Typ.) 600:1(Min.)
White luminance : Original color 250 nits (Min), 300 nits (Typ.)
Gate IC : OKI MT3805VA
Source IC : MAGNA D10D3SS639
Response time : 5ms (typ)
Scanning frequencies
Hor. : 30 – 83 K Hz
Ver. : 56 - 76 Hz
Video dot rate : <140 MHz
Power input : 90-264 V AC, 50/60 ± 2Hz
Power consumption : < 36W ( Typ.)
<TBD W (Max.)
Functions:
(1)D-SUB analog R/G/B separate inputs, H/V sync separated, Composite
(H+V) TTL level, SOG sync
(2) DVI digital Panel Link TMDS inputs
Ambient temperature: 0 °C-40°C
Power input connection
Power cord length : 1.8 M
Power cord type : 3 leads power cord with protective earth plug.
Power management (supplier to input)
The monitor must comply with the Microsoft On Now specification, and
meet EPA requirements.
Mode HSYNC VSYNC Video Pwr-cons. Indication Rec
.time
Power-On On On active < 36 W
TBDW max.
Blue LED --
Off Off Off blanked < 0.8 W Blinking Blue
LED Period:
3sec On,
3sec Off
<3s
DC Power
Off
N/A < 0.8 W LED Off
PIN
No.
SIGNAL PIN
No.
SIGNAL
1Red 9DDC+3.3Vor+5V
2 Green/ SOG 10 Logic GND
3 Blue 11 Sense (GND)
4 Sense (GND) 12 Bi-directional data
5CableDetect
(GND)
13 H/H+V sync
6RedGND 14V-sync
7 Green GND 15 Data clock
8BlueGND
Input DVI-D connector pin
Pin No. Description
1 T.M.D.S. data2-
2 T.M.D.S. data2+
3 T.M.D.S. data2 shield
4 No Connect
5 No Connect
6 DDC clock
7 DDC data
8 No Connect
9 T.M.D.S. data1-
10 T.M.D.S. data1+
11 T.M.D.S. data1 shield
12 No Connect
13 No Connect
14 +5V Power
15 Ground (for +5V)
16 Hot plug detect
17 T.M.D.S. data0-
18 T.M.D.S. data0+
19 T.M.D.S. data0 shield
20 No Connect
21 No Connect
22 T.M.D.S clock shield
23 T.M.D.S. clock+
24 T.M.D.S. clock-
Susceptibility of display to external environment
Operating
- Temperature : 0 to 40 degree C
- Humidity : 80% max
- Altitude : 0-3658m
- Air pressure : 600-1100 mBAR
Storage
- Temperature : -20 to 60 degree C
- Humidity : 95% max
- Altitude : 0-12192m
- Air pressure : 300-1100 mBAR
Note: recommend at 5 to 35°C, Humidity less than 60 %
