37
Meridian 1

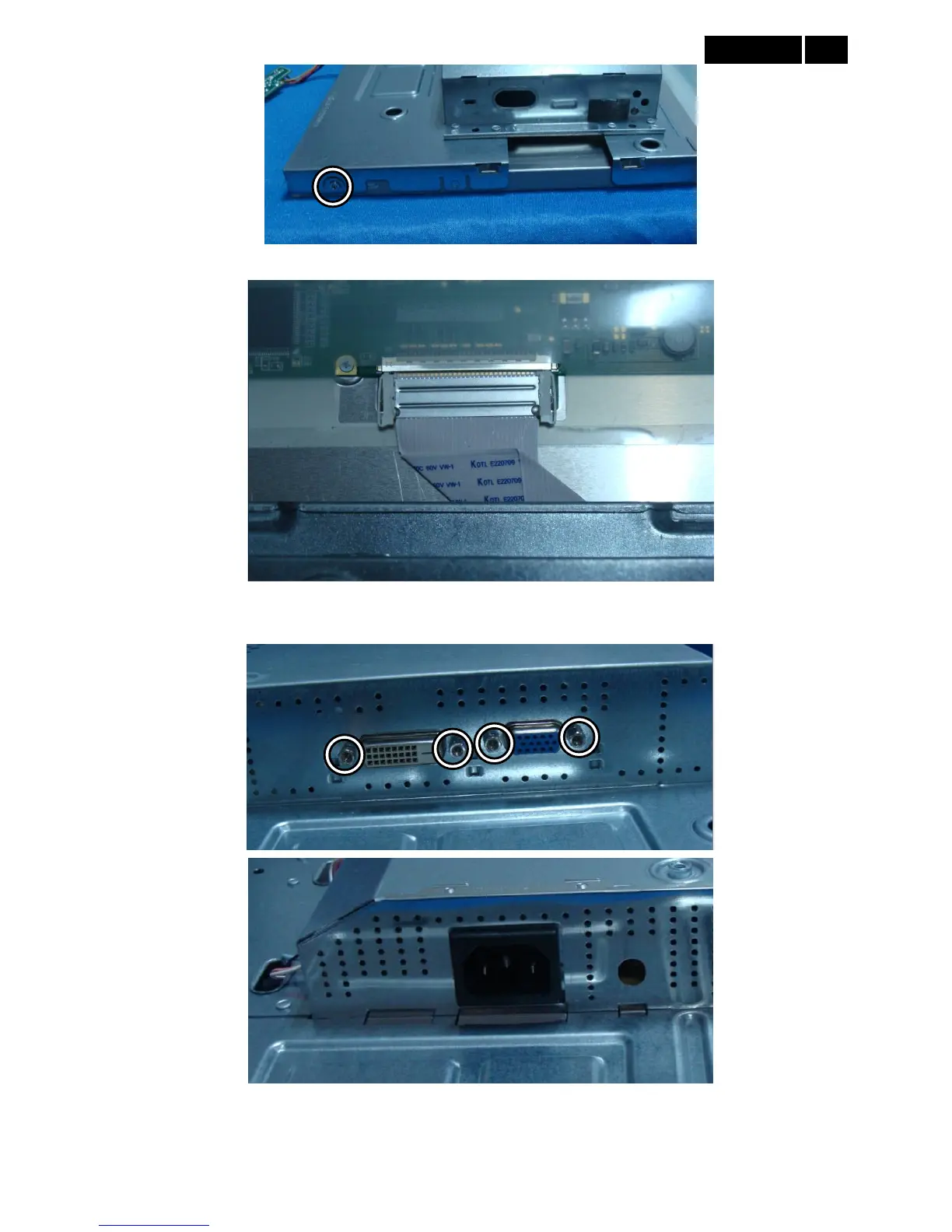

B. Press to release left and right latches of LVDS cable, and then disconnect it.
6. Remove Power Board and Main Board.
A. Remove four screws and
PW Shielding.
