38
Meridian 1

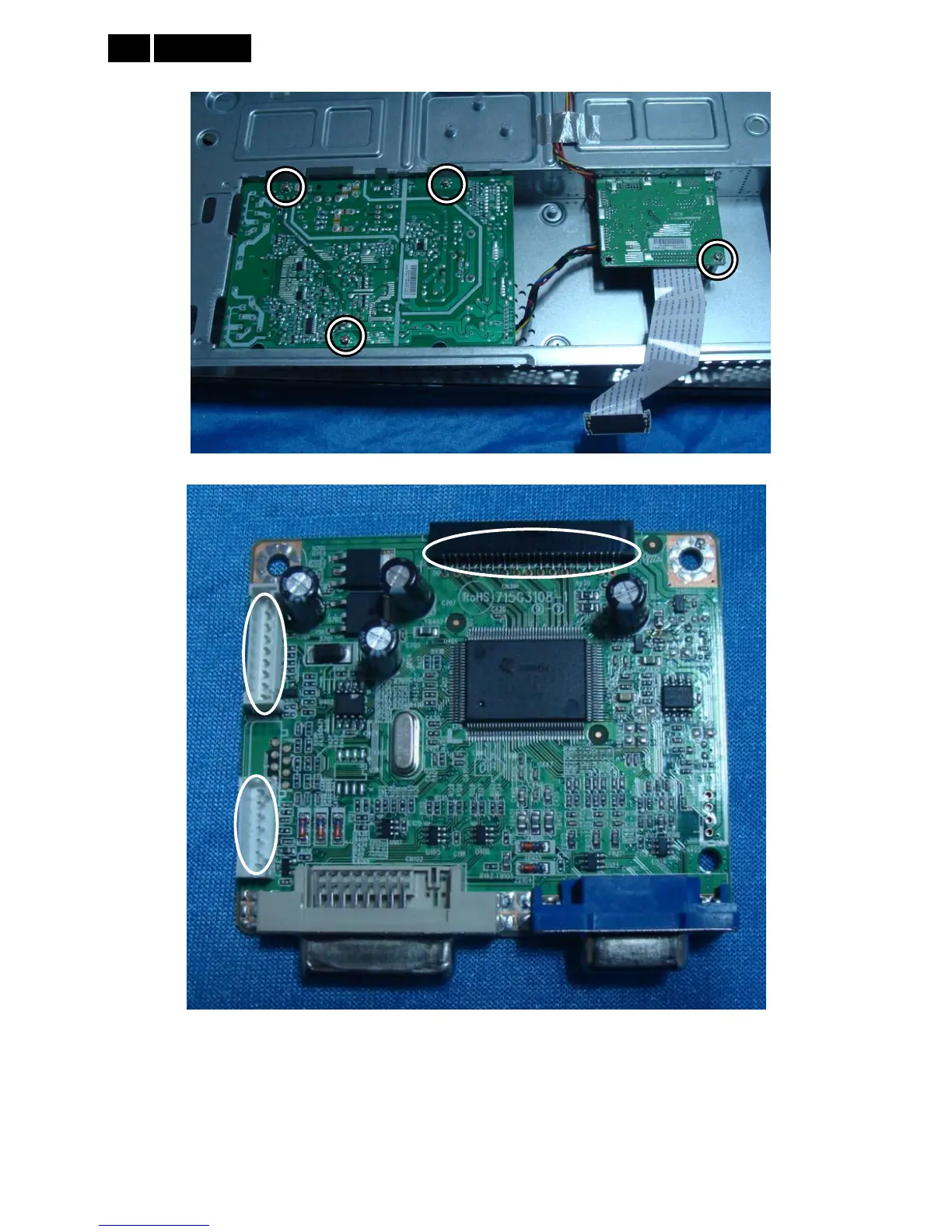

B. Remove four screws to remove the Power Board and Main Board from Main Frame.
C. Disconnect three connectors from Main Board.
