Mechanical Instructions
EN 11LC9.3L LA 4.
2010-Mar-26
4.1.2 32PFL6605, Van Gogh/Da Vinci Styling

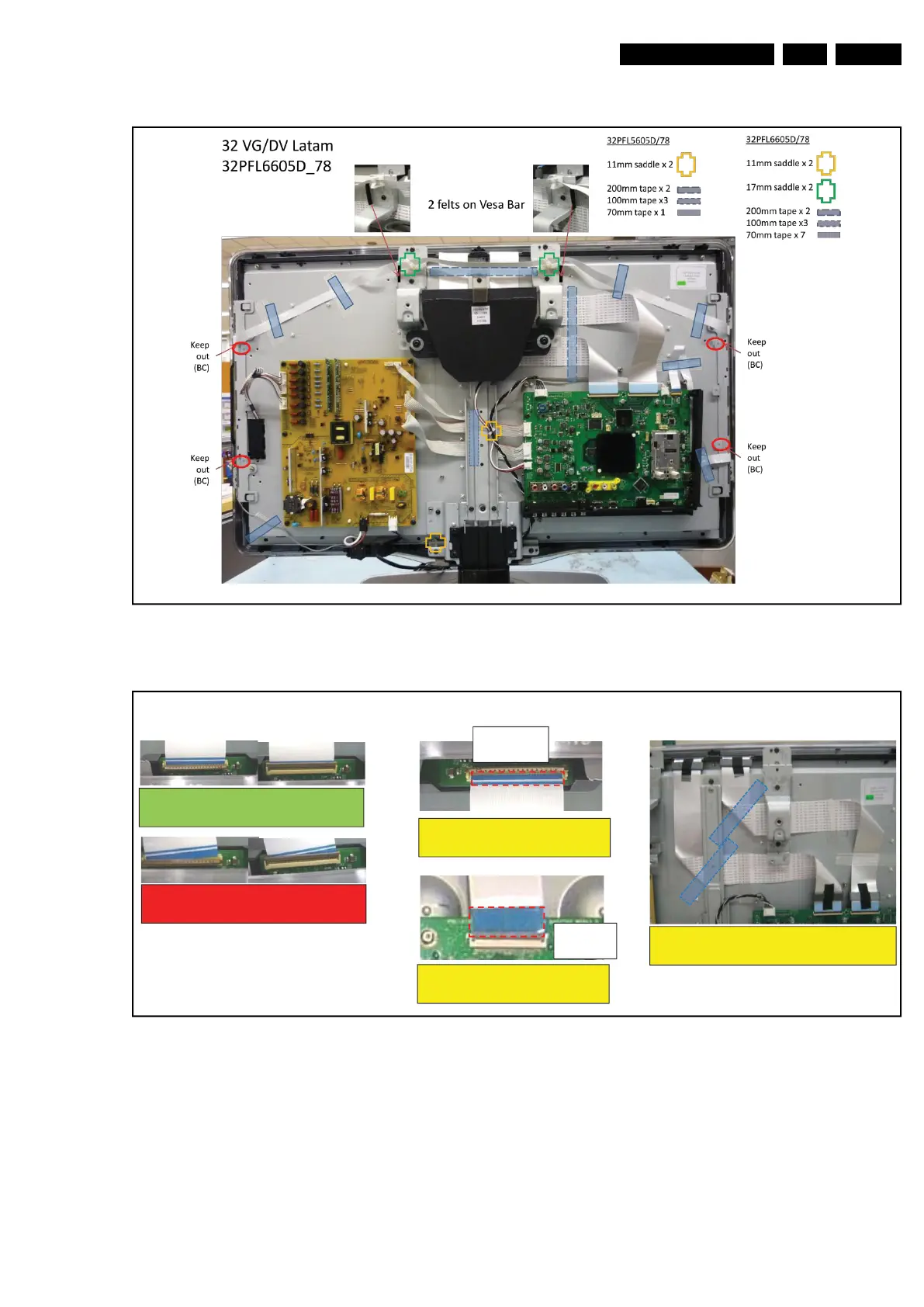

Figure 4-5 Cable dressing 32" (32PFL6605, Van Gogh/Da Vinci Styling)
Figure 4-6 FFC precautions 32" (32PFL6605, Van Gogh/Da Vinci Styling)
Note : Cable 8M09, 8M59 and 8M83 used in Da Vinci (Ambilight) only
18970_100_100323.eps
100323
FFC Pre-cautions
Proper FFC insertion: Silver line not
visible when connector lock is closed
Wrong FFC insertion: Silver line
visible when connector lock is closed
Thicker blue FFC supporting
tape belong to SSB side
Thinner blue FFC supporting
tape belong to Panel side
Panel
SSB
100 mm tape x 1 each under speaker on
FFC cable
18970_101_100323.eps
100323
