Philips 32PFL5605D/78 - Block Diagrams; Wiring Diagram 32 - 40 (Picasso)

Block Diagrams
EN 39LC9.3L LA 9.
2010-Mar-26
9. Block Diagrams

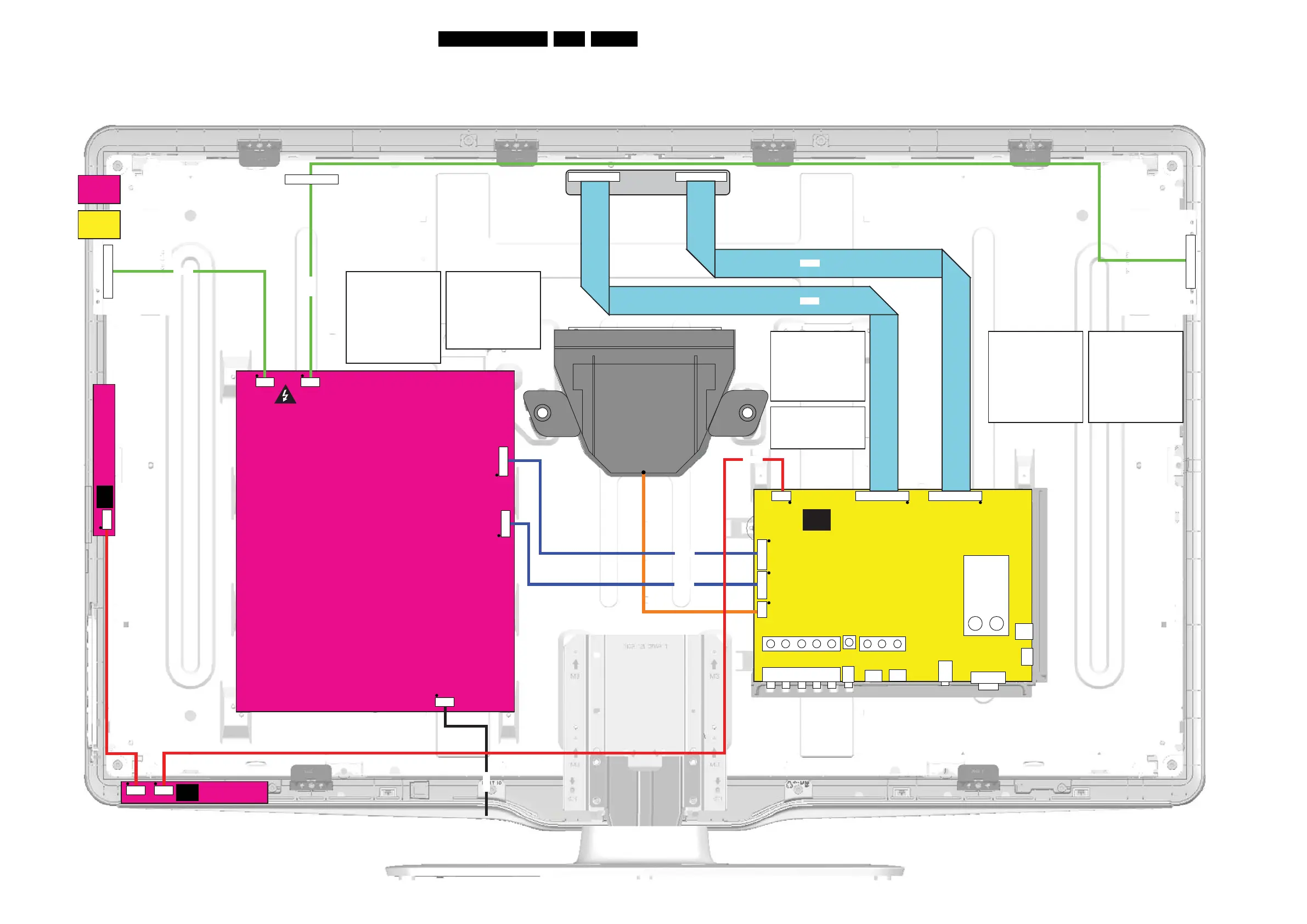

Wiring Diagram 32" - 40" (Picasso)
11P
1M95
9P
1M99
2P3
1308
1735
4P
1M95
11P
1M99
9P
1KA2
80P
1KA1
80P
1M20
8P
MAINS CORD
8191
TO DISPLAY TO DISPLAY
3P
J1
SSB
(1150)
B
MAIN POWER SUPPLY
IPB 32 PLHC-P984A B
IPB 40 PLHE-P986A B
(1005)
LCD DISPLAY
(1004)
8M99
8M95
WIRING DIAGRAM 32"- 40" PICASSO
18970_400_100325.eps
100326
1M99 (B01A)
1. +12VDISP
2. +12VDISP
3. GND
4. GND
5. LAMP-ON-A
6. PWM-DIMMING
7. BACKLIGHT-BOOST- A
8. GND
9. POWER-OK-A
1M95 (B01A)
1. +3V3STDBY
2. STANDBY
3. GND
4. GND
5. GND
6. +12VS
7. +12VS
8. +12VS
9. +24VAUDIO
10. GNDSND
11. N.C.
1735 (B03)
1. SPEAKER_LEFT+
2. SPEAKER_LEFT-
3. SPEAKER_RIGHT+
4. SPEAKER_RIGHT-
1M20 (B14F)
1. LIGHT-SENSOR
2. GND
3. RC
4. LED-2
5. +3V3-STANDBY
6. LED-1
7. KEYBOARD
8. +5V
1KA2 (B14E)
1. GND
|
11. VLS_15V6
12. VLS_15V6
|
33. VCC_3V3
34. VCC_3V3
|
78. VGH_35V
79. VGL_-6V
80. GND
1KA1 (B14E)
1. GND
|
11. VLS_15V6
12. VLS_15V6
|
33. VCC_3V3
34. VCC_3V3
|
78. VGH_35V
79. VGL_-6V
80. GND
L
N
Board Level Repair
Component Level Repair
Only For Authorized Workshop
USB
HDMI
TUNER
PHONE
SPDIF
HDMI
HDMI
VGA
LOUDSPEAKER
(5213)
8M20
8KA2
J2
3P
J1
8P
8KA1
1319
1P3
1316
1P3
HIGH VOLTAGE
TO BACKLIGHT
TO BACKLIGHT
32"
40"
TO BACKLIGHT
8319
8316
IR/LED BOARD
(1112)
J
KEYBOARD CONTROL (1114)
E
