Philips 32PFL5605D/78 - Wiring Diagram 32 46 (da Vinci)

Block Diagrams
EN 41LC9.3L LA 9.
2010-Mar-26

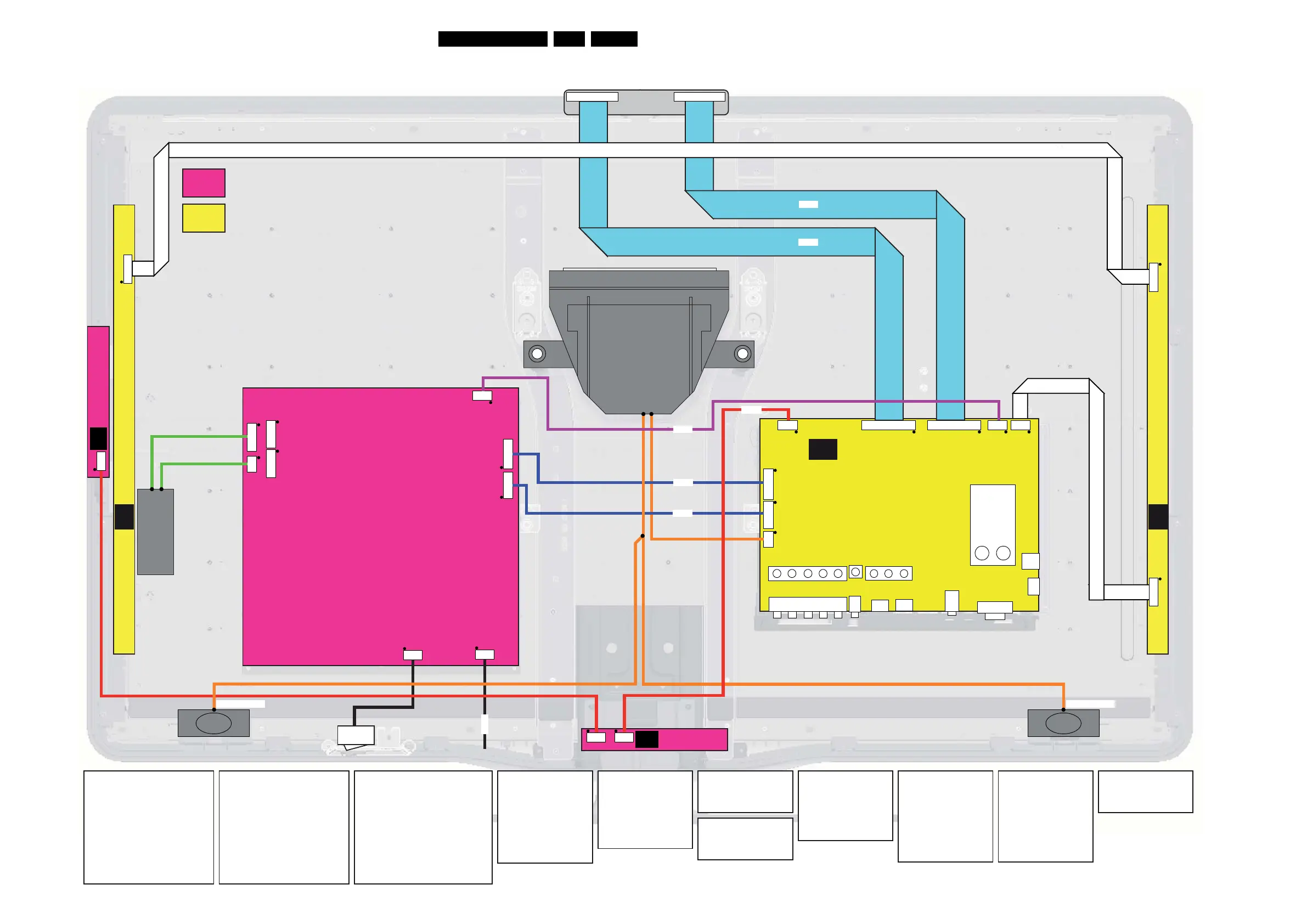

Wiring Diagram 32" 46" (Da Vinci)
1735
4P
1M95
11P
1M99
9P
1KA2
80P
1KA1
80P
1M20
8P
1M59
25P
1M72
4P
SSB
(1150)
B
USB
HDMI
TUNER
PHONE
SPDIF
HDMI
HDMI
VGA
TWEETER
(5217)
TWEETER
(5216)
MAINS
SWITCH
(8311)
11P
1M95
9P
1M99
2P3
1311
2P3
1308
1319
32"-6P
1316
32"-12P
1319
40"-10P 46"-10P
1316
40"-10P 46"-10P
MAINS CORD
8191
TO DISPLAY TO DISPLAY
3P
J1
MAIN POWER SUPPLY
32
"- FSP124-3MS02 B
40
"- DPS-206CP-1 A B
46
" - FSP173-3MS02 B
(1005)
LCD DISPLAY
(1004)
8M99
8M95
RED WIRE WHITE WIRE
WIRING DIAGRAM 32"- 46" DA VINCI
18970_402_100325.eps
100326
LN
Board Level Repair
Component Level Repair
Only For Authorized Workshop
LOUDSPEAKER
(5213)
8M20
TO BACKLIGHT
8KA2
NOT FOR 32" TV-SETS NOT FOR 32" TV-SETS
J2
3P
J1
8P
8KA1
AMBILIGHT MODULE 24 LED (1161)
AL
25P
1M83
AMBILIGHT MODULE 24 LED (1161)
AL
1M84
25P
1M83
25P
1M09
4P
8M59
8M838M83
8M09
8M83
1M99 (B01A)
1. +12VDISP
2. +12VDISP
3. GND
4. GND
5. LAMP-ON-A
6. PWM-DIMMING
7. BACKLIGHT-BOOST- A
8. GND
9. POWER-OK-A
1M95 (B01A)
1. +3V3STDBY
2. STANDBY
3. GND
4. GND
5. GND
6. +12VS
7. +12VS
8. +12VS
9. +24VAUDIO
10. GNDSND
11. N.C.
1735 (B03)
1. SPEAKER_LEFT+
2. SPEAKER_LEFT-
3. SPEAKER_RIGHT+
4. SPEAKER_RIGHT-
1M72 (B13)
1. +24V
2. +24V
3. GND
4. GND
1M09 (PSU)
1. +24V
2. +24V
3. GND
4. GND
1M20 (B14F)
1. LIGHT-SENSOR
2. GND
3. RC
4. LED-2
5. +3V3-STANDBY
6. LED-1
7. KEYBOARD
8. +5V
1KA2 (B14E)
1. GND
|
11. VLS_15V6
12. VLS_15V6
|
33. VCC_3V3
34. VCC_3V3
|
78. VGH_35V
79. VGL_-6V
80. GND
1KA1 (B14E)
1. GND
|
11. VLS_15V6
12. VLS_15V6
|
33. VCC_3V3
34. VCC_3V3
|
78. VGH_35V
79. VGL_-6V
80. GND
1M38 (AL1A)
1. +24V
2. +24V
3. +24V
4. +24V
5. +24V
6. GND
7. GND
8. GND
9. GND
10. GND
11. TEMP-SENSOR
12. N.C.
13. N.C.
14. +3V3
15. BLANK
16. PROG
17. GND
18. LATCH
19. SPI-CS
20. +3V3
21. PWM-CLOCK
22. GND
23. SPI-DATA-RETURN
24. SPI-DATA-IN
25. SPI-CLOCK
1M48 (AL2A)
1. SPI-CLOCK-BUF
2. SPI-DATA-OUT
3. SPI-DATA-RETURN
4. GND
5. PWM-CLOCK-BUF
6. +3V3
7. SPI-CS
8. LATCH
9. GND
10. PROG
11. BLANK
12. +3V3
13. N.C.
14. N.C.
15. TEMP-SENSOR
16. GND
17. GND
18. GND
19. GND
20. GND
21. +24V
22. +24V
23. +24V
24. +24V
25. +24V
1M59 (B13)
1. AMBI-SPI-CLK-OU
2. AMBI-SPI-SDO-OUT
3. AMBI-SPI-SDI-OUT-GI
4. GND
5. AMBI-PWM-CLK_B2
6. V-AMBI
7. AMBI-SPI-CS-OUTn_R2
8. AMBI-LATCH1_G2
9. GND
10. AMBI-PROG_B1
11. AMBI-BLANK_R1
12. V-AMBI
13. AMBI-LATCH2_DIS
14. AMBI-SPI-CS-EXTLAMPSn
15. AMBI-TEMP
16. GND
17. GND
18. GND
19. GND
20. GND
21. +24V
22. +24V
23. +24V
24. +24V
25. +24V
IR/LED BOARD
(1112)
J
KEYBOARD CONTROL (1114)
E
