Mechanical Instructions
EN 9LC9.3L LA 4.
2010-Mar-26
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assy/Panel Removal
4.4 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing
4.1.1 32PFL3805, Picasso/Dali Styling

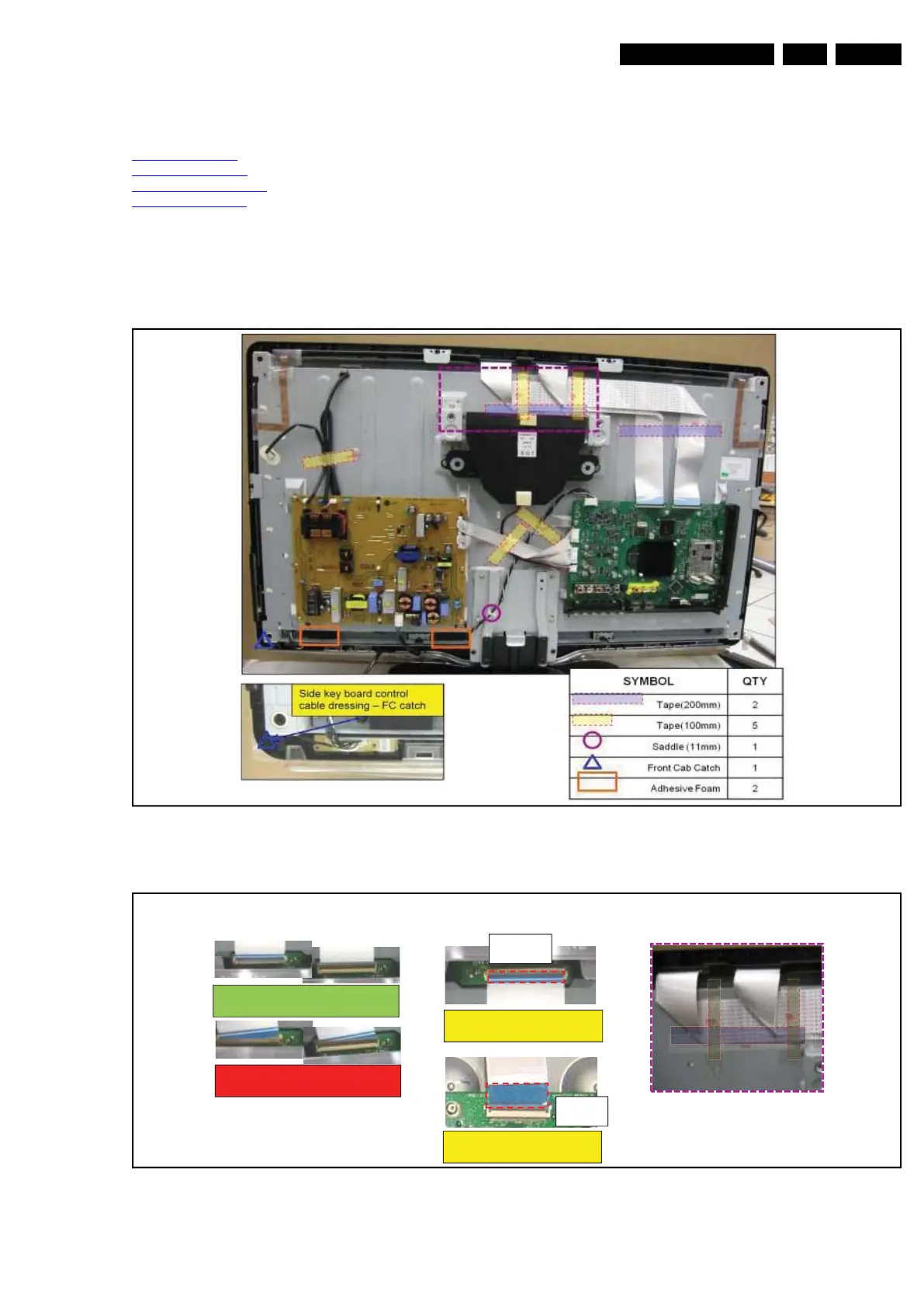

Figure 4-1 Cable dressing 32" (32PFL3805, Picasso/Dali Styling)
Figure 4-2 FFC precautions 32" (32PFL3805, Picasso/Dali Styling)
18970_105_100323.eps
100323
FFC Pre-cautions
Proper FFC insertion:
Silver line not
visible when connector lock is closed
Wrong FFC insertion:
Silver line
visible when connector lock is closed
Thicker blue FFC supporting
tape belong to SSB side
Thinner blue FFC supporting
tape belong to Panel side
Panel
SSB
18970_106_100323.eps
100323
