11. Styling Sheets

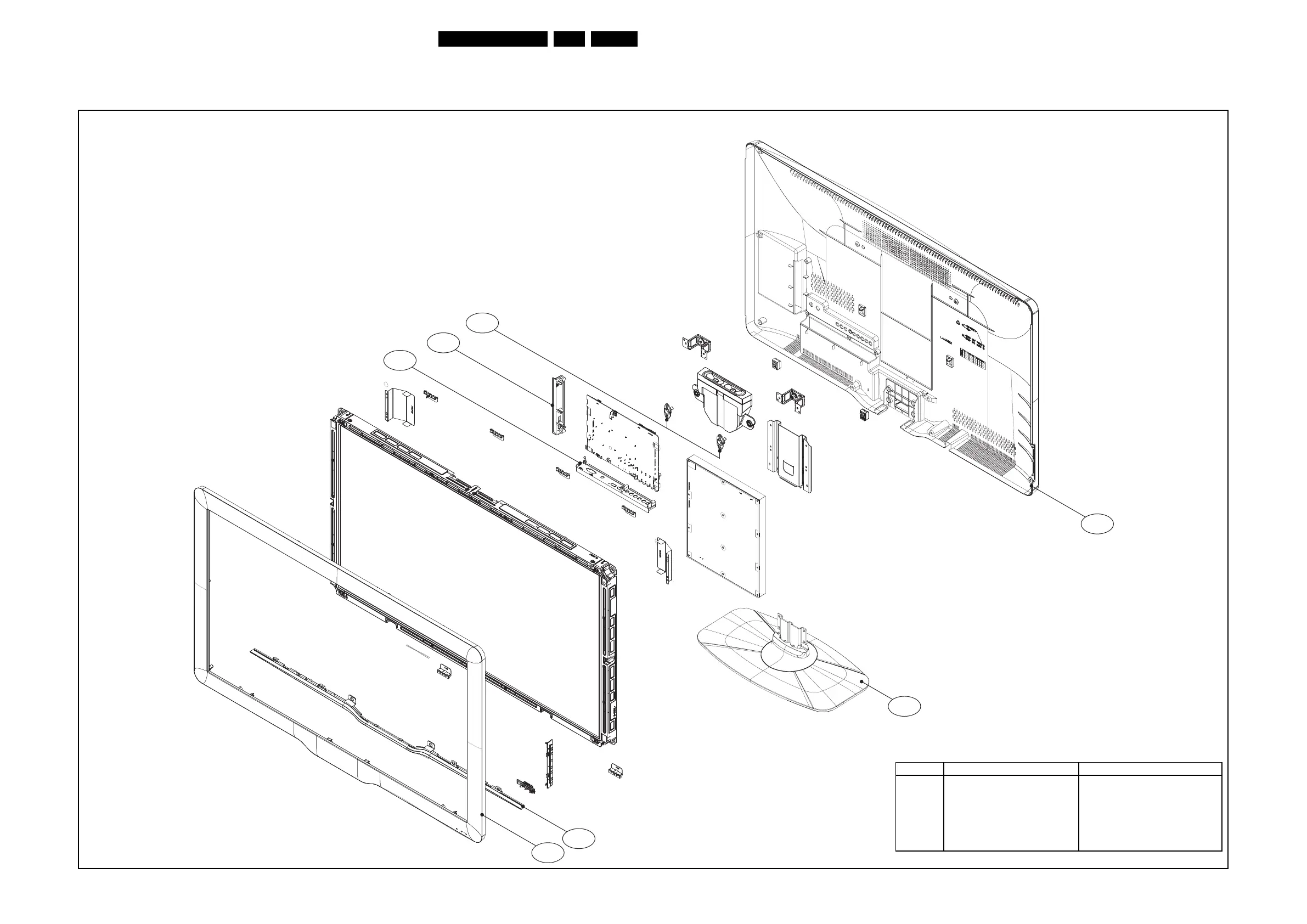

Styling Sheet 32" - 40" (Picasso)
18970_803_100326.eps
100326
PICASSO 32"- 40"
Pos No. Description Remarks
0004 Front Cabinet
0012 Back Cover
0021 I/O Bracket Side
0024 I/O Bracket Bottom
0028 Bottom Flare
0045 Speaker bracket
0260 Stand
1085 Remote Control Not displayed
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
0004
0028
0026
0012
0021
0024
0045
