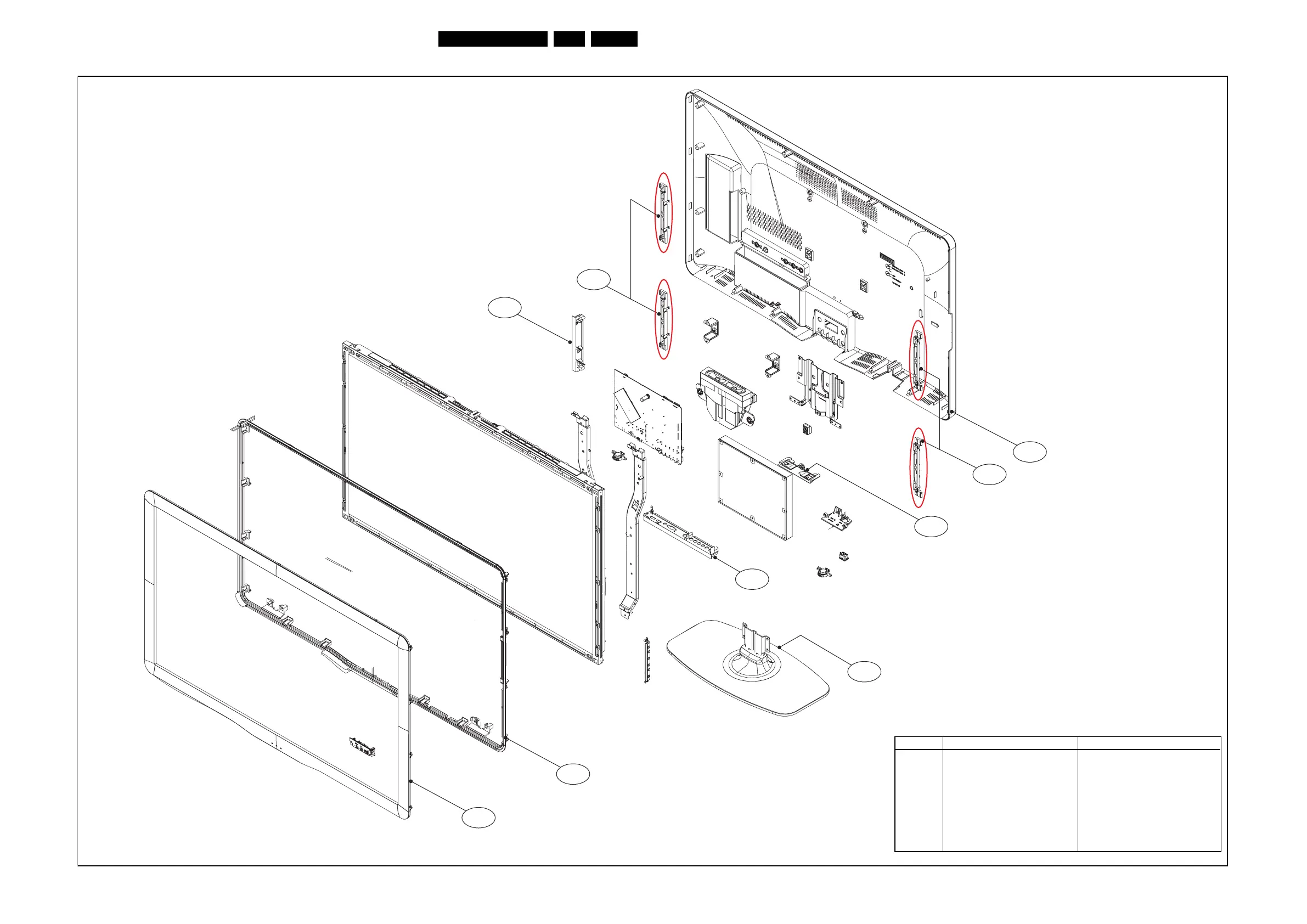

Styling Sheet 32" - 46" (van Gogh)

0004

0017

0018

0026

0260

0012

0024

0021

0026

VAN GOGH 32" - 46"

18970_804_100326.eps

100326

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

Pos No. Description Remarks

0004 Front Cabinet

0012 Back Cover

0017 Flare Van Gogh

0018 Leading Edge Cover

0021 I/O Bracket Side

0024 I/O Bracket Bottom

0026 Mounting Bracket 4x For screen size 40” only.

0029 Switch Bracket

0260 Stand

1085 Remote Control Not displayed

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
