Philips 32PFL5605D/78 - Page 13

Mechanical Instructions
EN 13LC9.3L LA 4.
2010-Mar-26
4.1.4 46PFL6605, Van Gogh/Da Vinci Styling

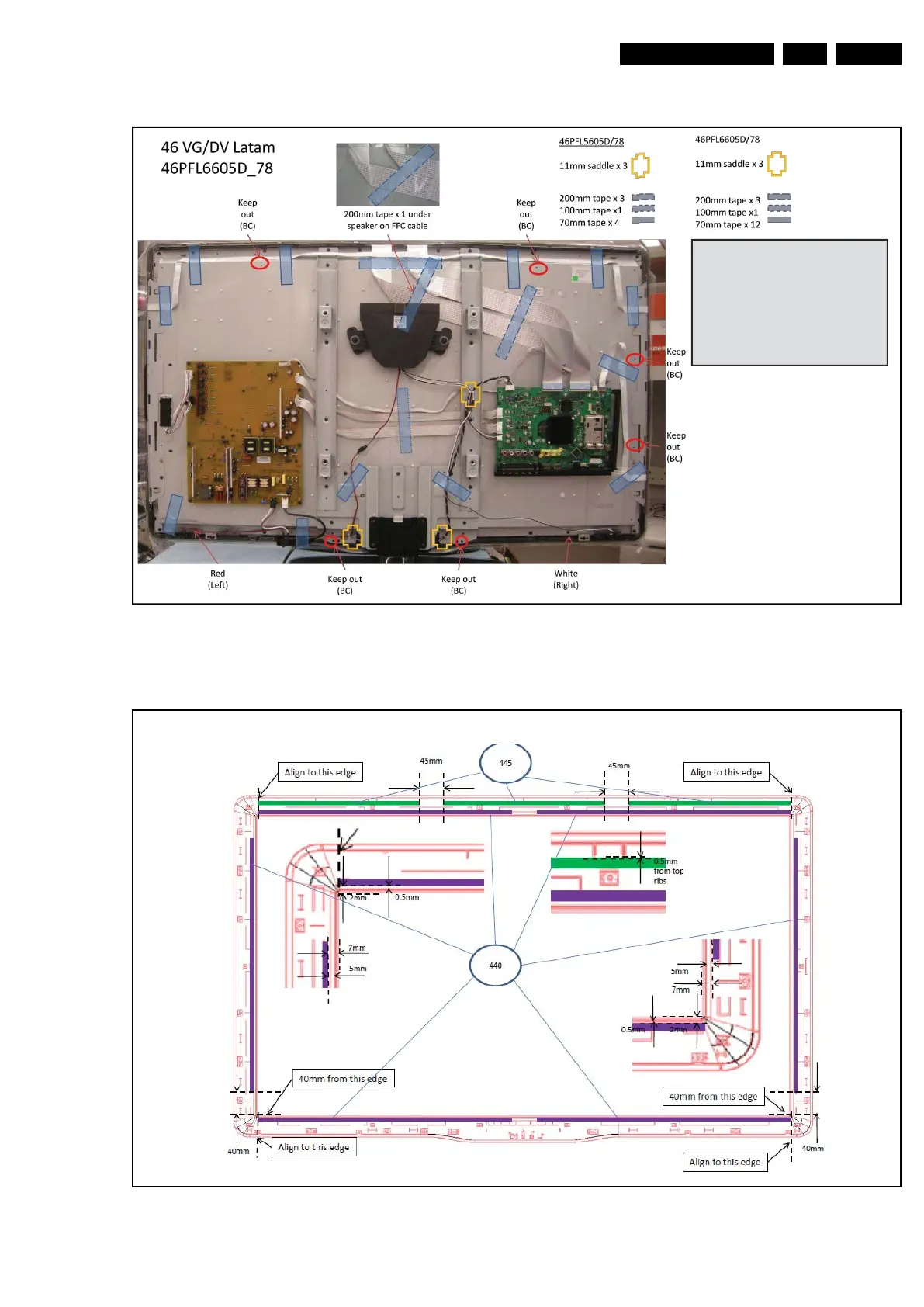

Figure 4-9 Cable dressing 46" (46PFL6605, Van Gogh/Da Vinci Styling)
Figure 4-10 Adding felt on front cabinet 46" (46PFL6605, Van Gogh/Da Vinci Styling)
1) Cable 8M09, 8M59 and 8M83
used in Da Vinci (Ambilight) only
2) Left (view from front of TV)
tweeter with white cable
3) Right (view from front of TV)
tweeter with red cable + insulation
Note :
18970_110_100323.eps
100323
Add Felts on Front Cabinet
18970_111_100323.eps
100323
