Philips 32PFL5605D/78 - Page 3

Technical Specifications and Connections
EN 3LC9.3L LA 2.
2010-Mar-26
2.3 Connections

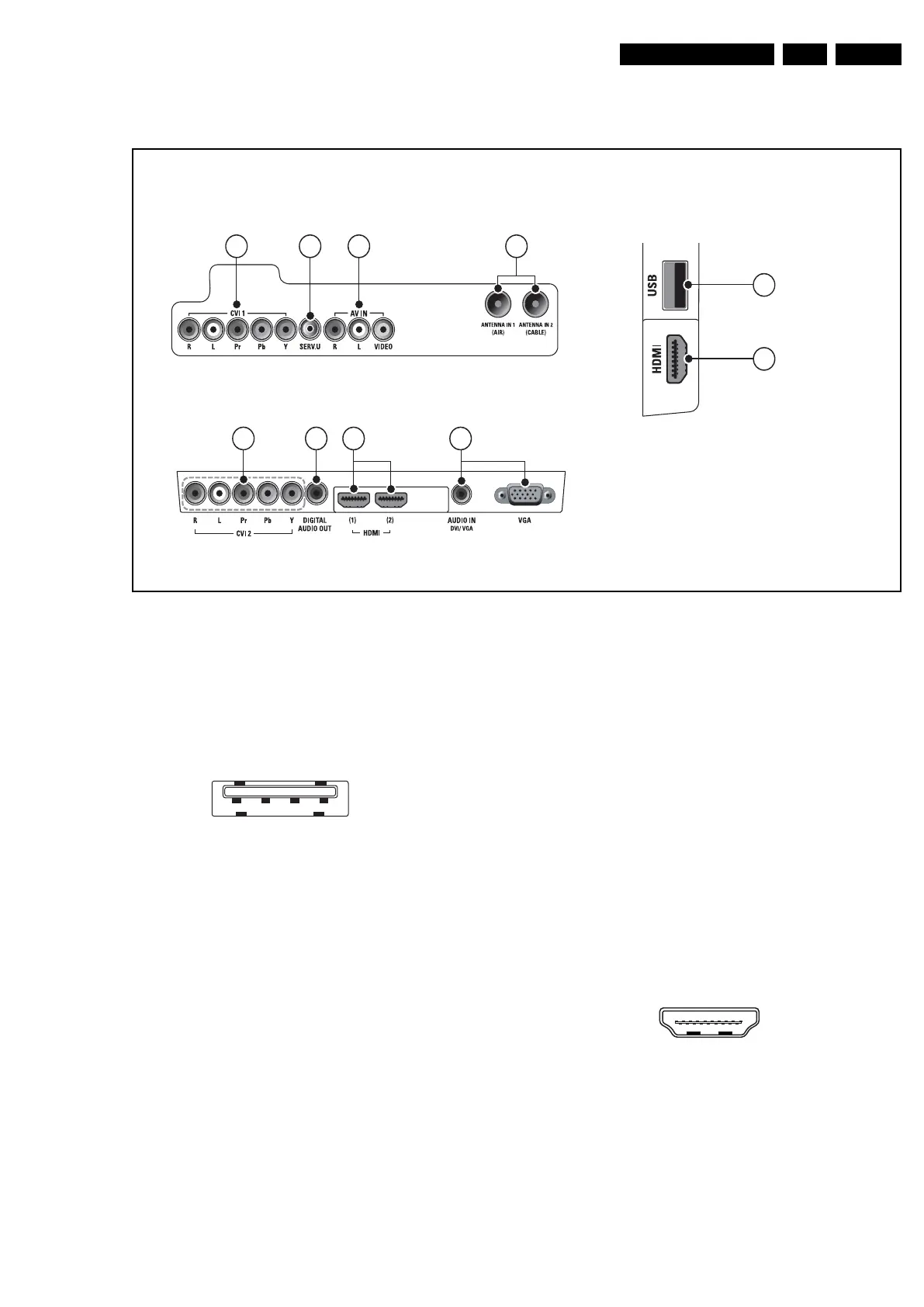

Figure 2-1 Connection overview
Note: The following connector color abbreviations are used
(according to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connectors
1 - USB2.0
Figure 2-2 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
2 - HDMI: Digital Video, Digital Audio - In
(see HDMI 1 & 2)
2.3.2 Rear Connectors
3 - CVI-1: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 Ω jq
Bu - Video Pb 0.7 V
PP
/ 75 Ω jq
Rd - Video Pr 0.7 V
PP
/ 75 Ω jq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ jq
Rd - Audio - R 0.5 V
RMS
/ 10 kΩ jq
4 - Service Connector (UART)
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
5 - Cinch: AV IN: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
6 - Aerial - In (Air and Cable)
- - F-type Coax, 75 Ω D
2.3.3 Bottom Connectors
7 - CVI-2: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 Ω jq
Bu - Video Pb 0.7 V
PP
/ 75 Ω jq
Rd - Video Pr 0.7 V
PP
/ 75 Ω jq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ jq
Rd - Audio - R 0.5 V
RMS
/ 10 kΩ jq
8 - Cinch: S/PDIF - Out
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 ohm kq
9 - HDMI 1 and 2: Digital Video, Digital Audio - In
Figure 2-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
18920_001_100317.eps
100317
Side connectors
Back connectors
Bottom connectors
1
2
345 6
789 10
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
