Mechanical Instructions
EN 11Q529.1E LA 4.
4.3.2 Ambilight
Refer to next figure for details.
1. Release the wire from the wire guides [1].
2. Remove the fixation screws [2].
3. Remove the cover screws [3] and take out the whole unit.
When defective, replace the whole unit.

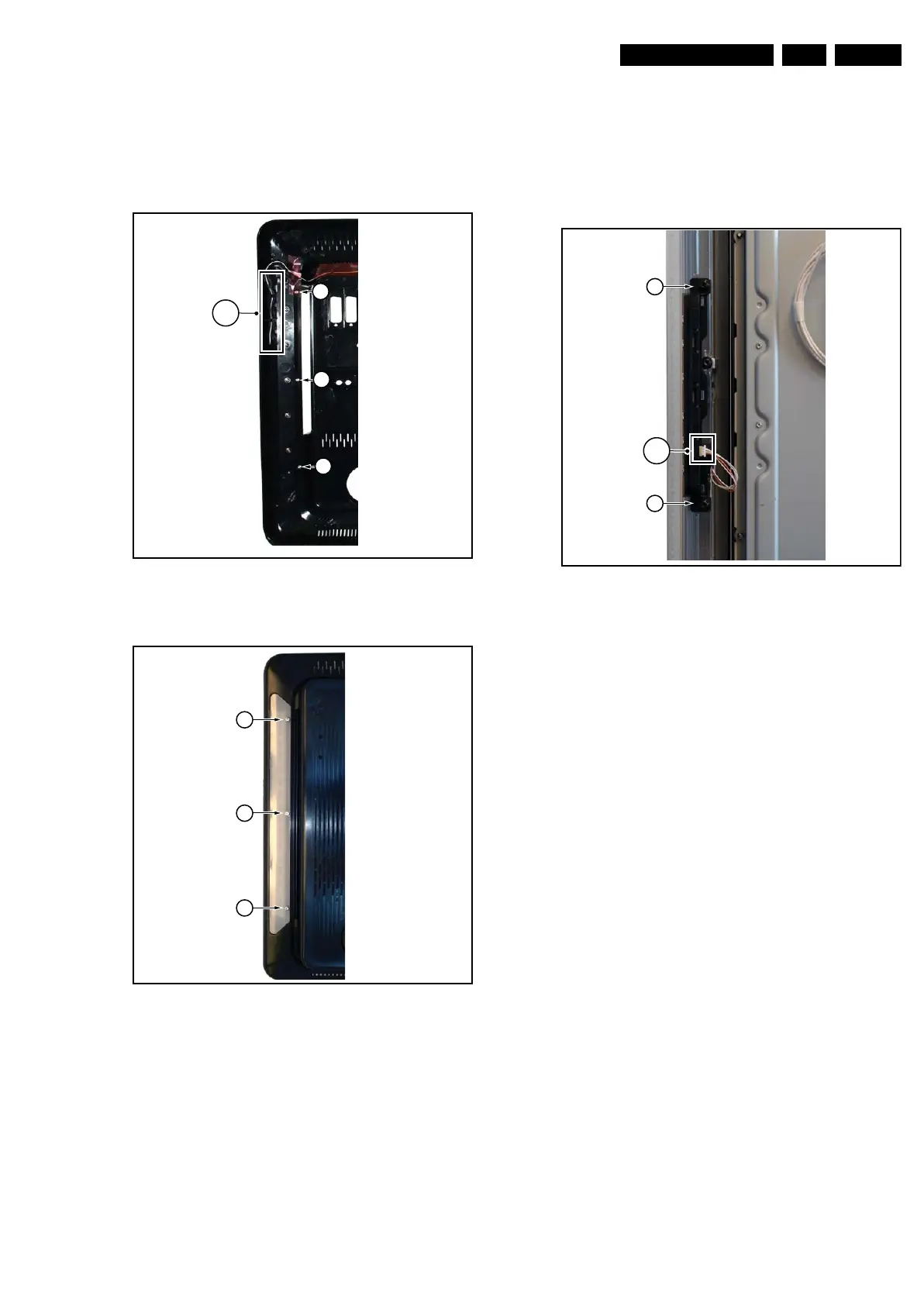

Figure 4-6 Ambilight inside cover
Figure 4-7 Ambilight outside cover
4.3.3 Key Board
Refer to next figure for details.
1. Unplug the key board connector [1] from the IR & LED
board.
2. Remove the screws [2].
3. Lift the unit and take it out of the set.
When defective, replace the whole unit.
Figure 4-8 Key Board
I_17660_108.eps
130308
2
2
2
1
I_17660_109.eps
130308
3
3
3
I_17660_110.eps
130308
2
2
1
