Mechanical Instructions
EN 20 QM16.3A LA4.
2016-Jun-08
Table 2-1

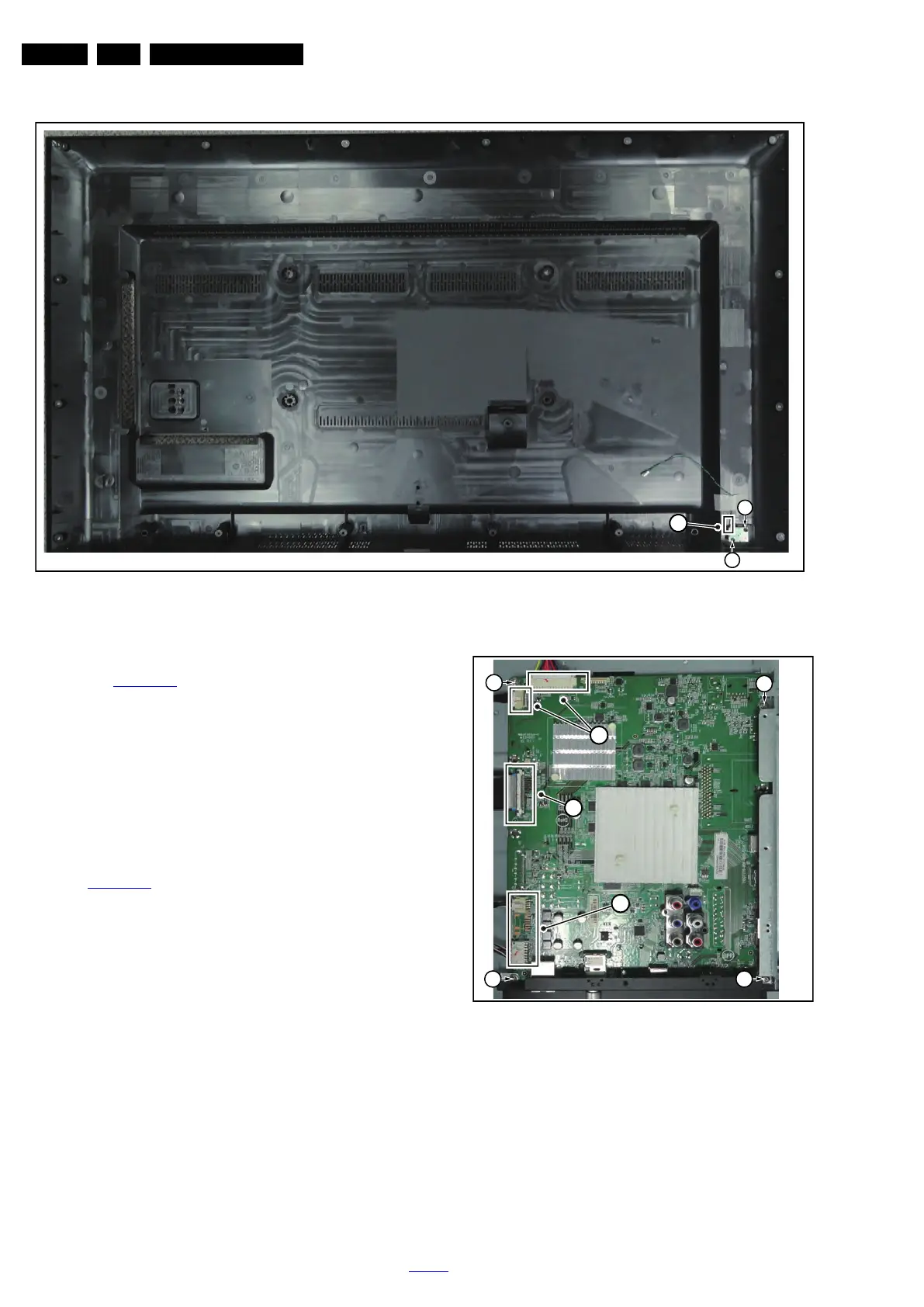

Figure 4-17 Keyboard removal
4.4.4 Small Signal Board (SSB)
Refer to Figure 4-18
for details.
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.
1. Release the clips from the LVDS connector that connect
with the SSB [1].
Caution: be careful, as these are very fragile connectors!
Unplug the cable/flat foils connector.
2. Unplug all other connectors [2].
3. Remove all the fixation screws from the SSB [3].
4. Take out the SSB with I/O bracket.
5. The SSB can now be shifted away from side connector
cover, then lifted and taken out of the I/O bracket. Refer to
Figure 4-18
for details.
Figure 4-18 SSB removal
