Mechanical Instructions
EN 23QM16.3A LA 4.
2016-Jun-08
Table 2-1
4.5.2 Rear Cover
Refer to Figure 4-22
& Figure 4-23 for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove the fixation screws [1] and [2] that secure the rear
cover. Refer to Figure 4-22
for details.
2. Unplug the connector [3] from SSB. Refer to Figure 4-23
for details.
3. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

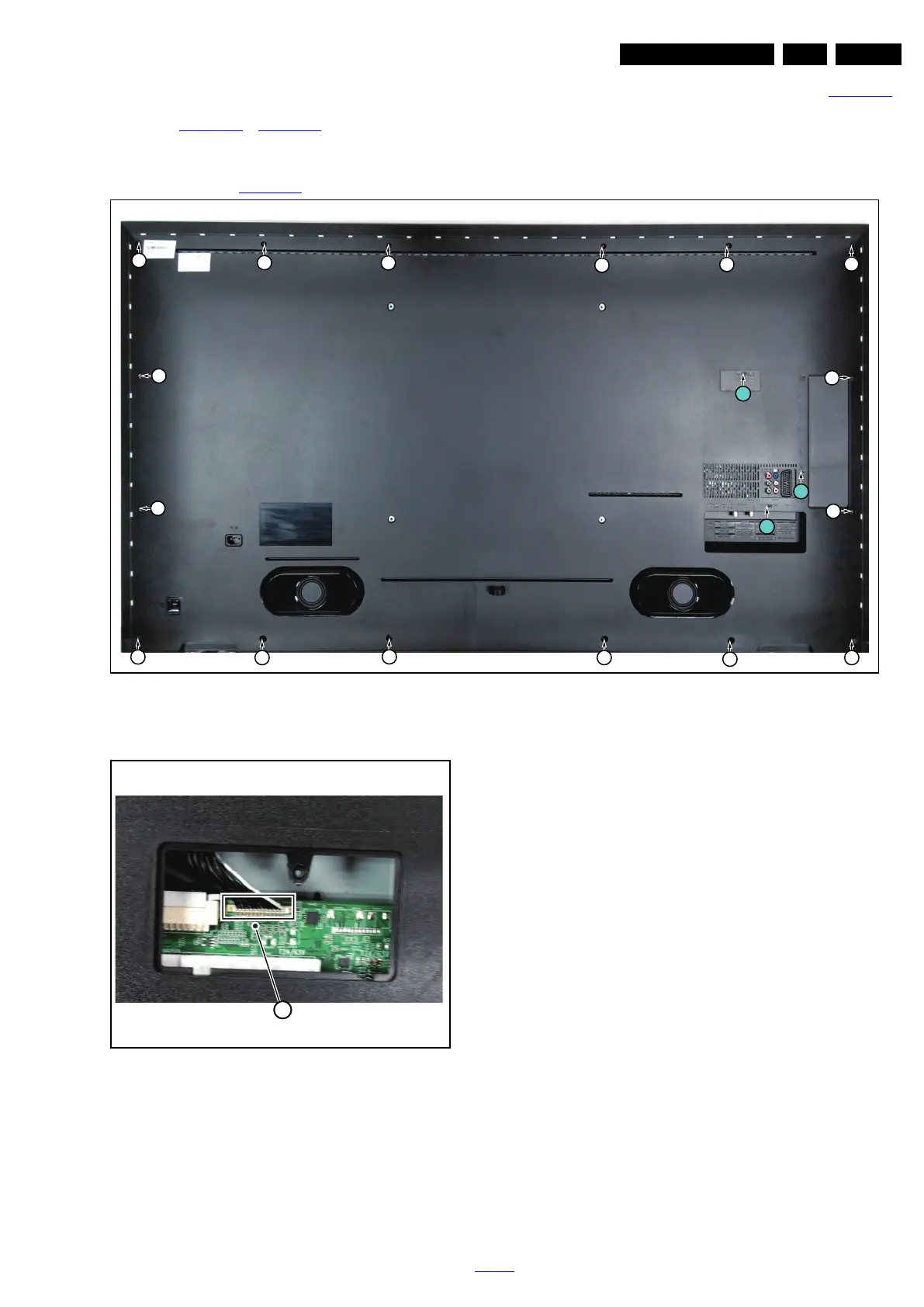

Figure 4-22 Rear cover removal[1]
Figure 4-23 Rear cover removal[2]
