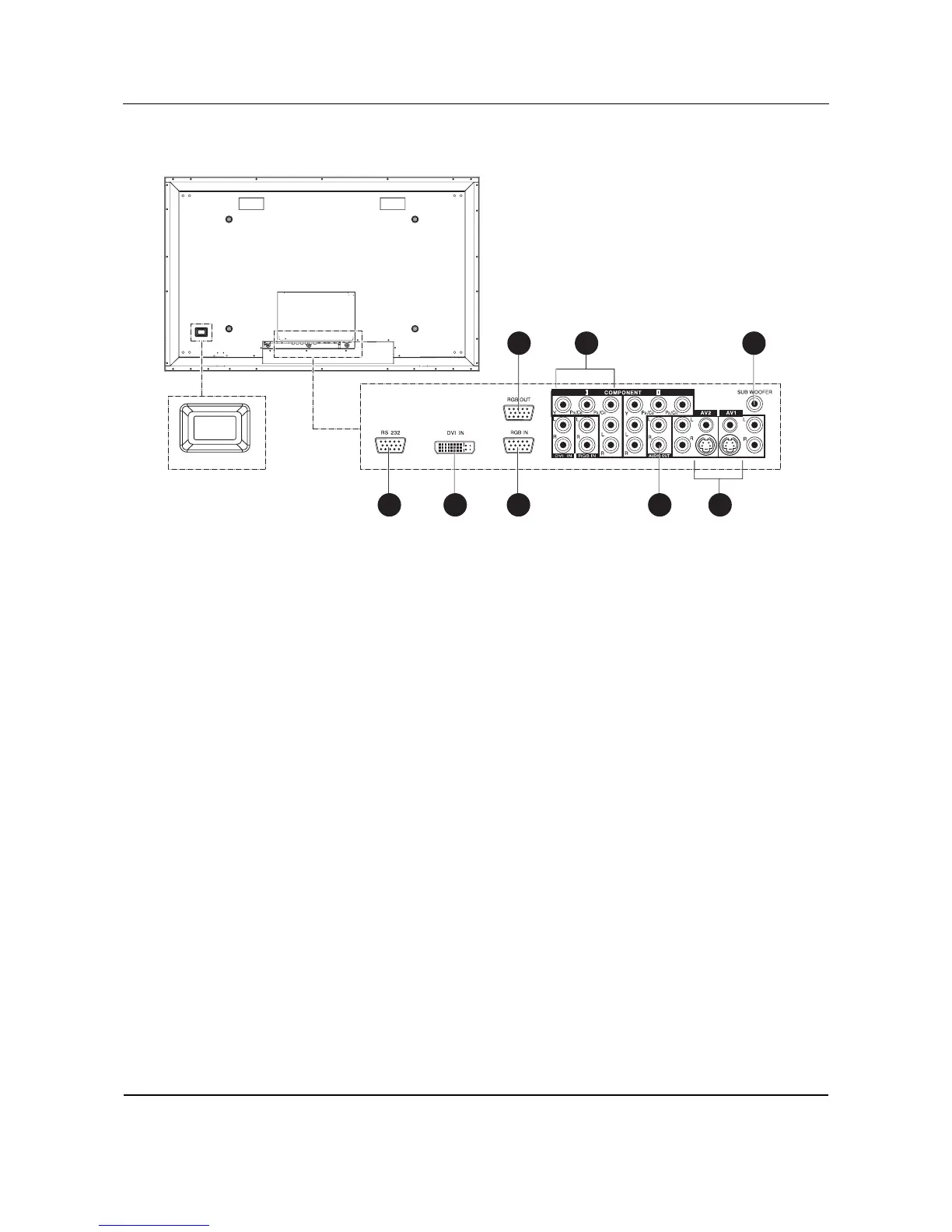

4.2 REAR VIEW
1. Composite / S-Video Inputs
Connect Composite or S-Video signals from external sources such
VCRs or DVD players.
2. Component Video Inputs
Auto-detecting component video inputs (Y/Pb/Pr or Y/Cb/Cr) for
connecting to the component output jacks of a DVD player or
Set-Top Box.
3. Audio Output
Variable or fixed audio output jacks for connecting to an external
audio amplifier.
4. Subwoofer Output
Variable or fixed low-frequency audio output jack for connecting to
an external amplified subwoofer.
5. RGB Input
Connect to RGB (VGA) output of computer or Set-Top box.
6. RS-232 Connector
Connect to a computer serial port.
7. Digital DVI Input
Connects to the digital video signals from a set top box or PC.
8. RGB Output
Connect to another computer monitor for daisy chaining
applications.
MAIN POWER
-
8 2
1
3
7
6
5
4
