Philips BJ3.1E LA - 4. Mechanical Instructions

Mechanical Instructions
EN 8 BJ3.1E LA4.
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assy/Panel Removal
4.4 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Follow the disassemble instructions in described order.
4.1 Cable Dressing

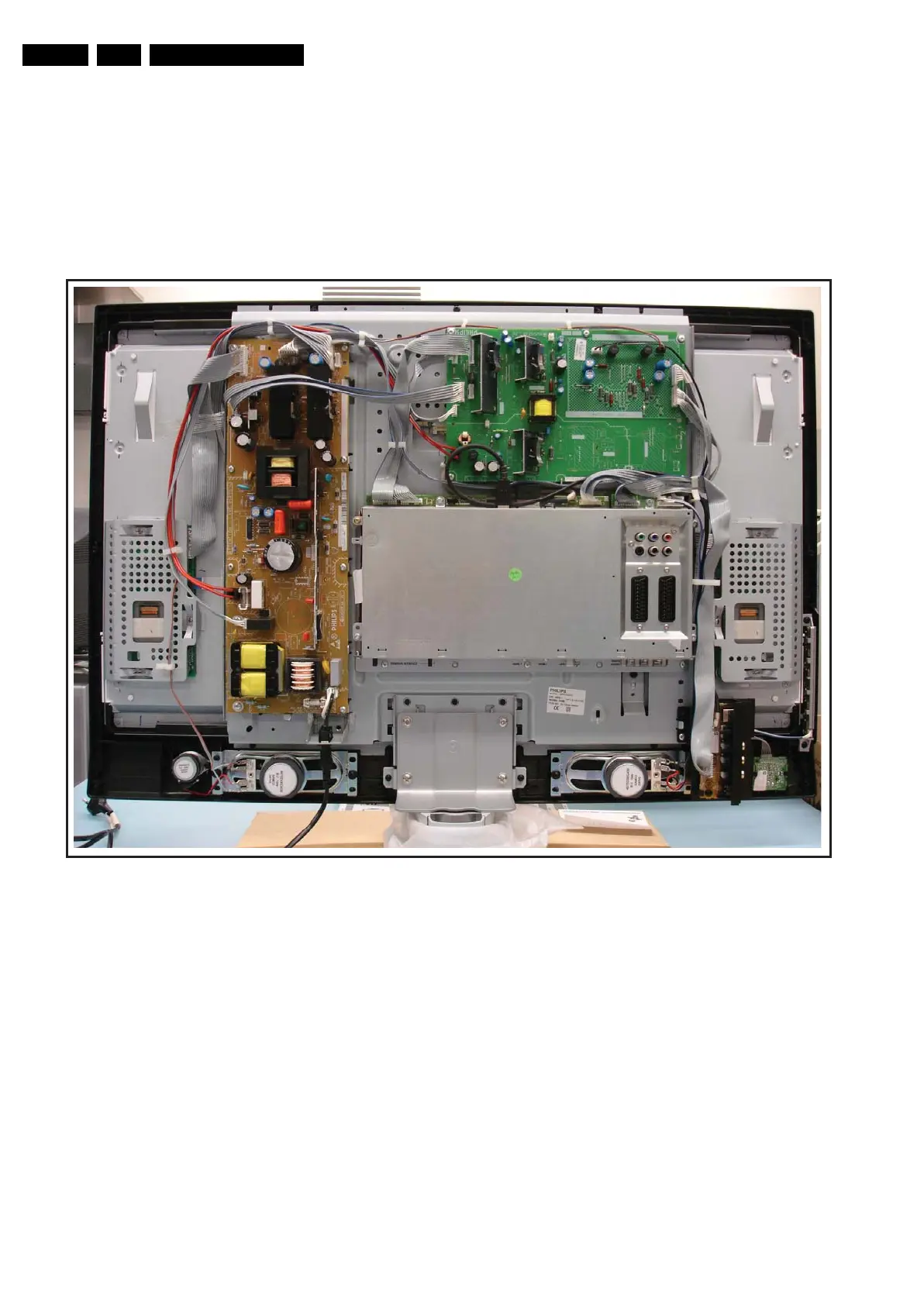

Figure 4-1 Cable dressing (32-inch models)
G_16850_004.eps
110107
