11

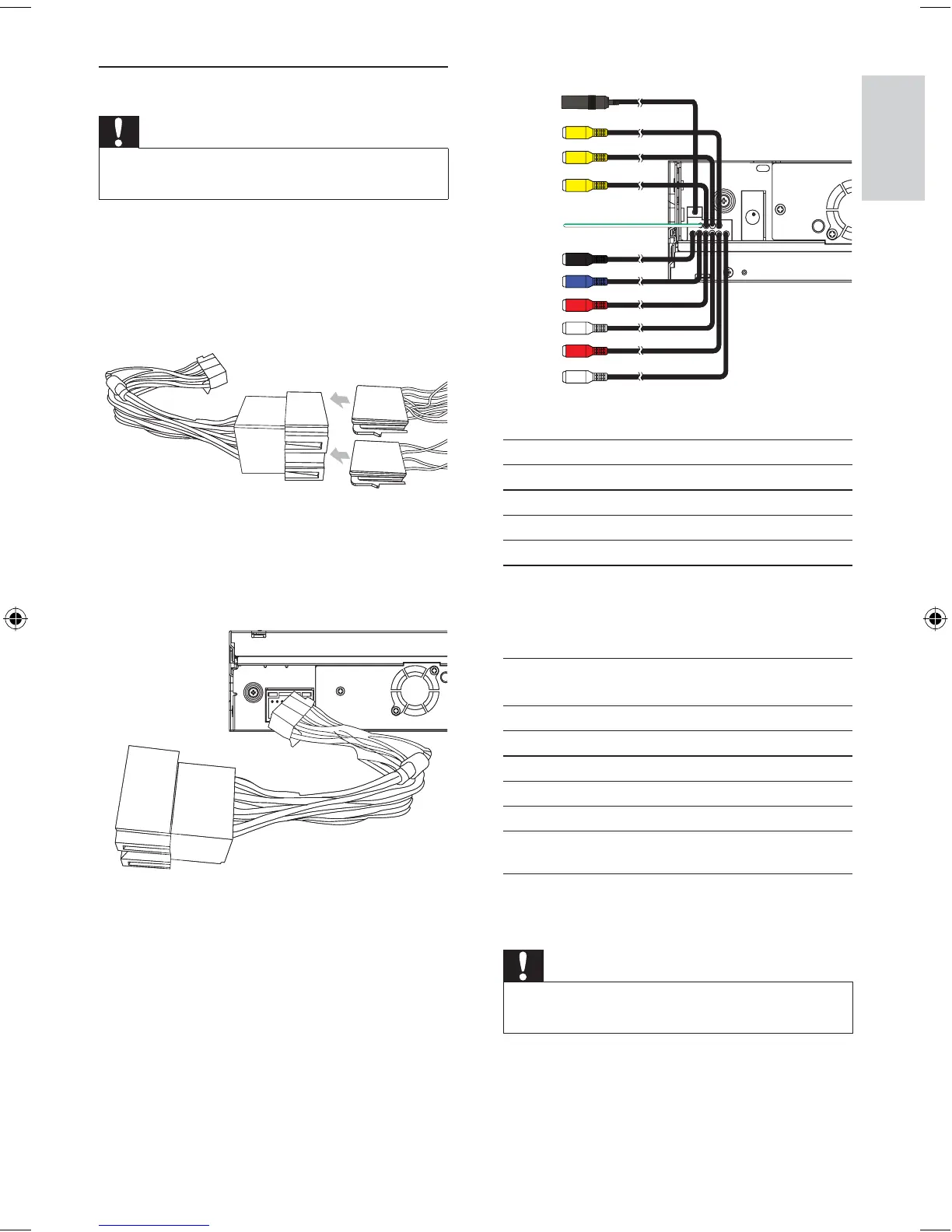

Connector Connect to/with
1 Black cable Antenna
2 Yellow cable Video out 1
3 Yellow cable Video out 2
4 Yellow cable Camera in
5 Green/white
wire
Parking (see
‘Connect parking
brake wire’ on page
14 )
6 Black cable Bluetooth
microphone
7 Blue cable Subwoofer
8 Red cable Front line out L
9 White cable Front line out R
10 Red cable Rear line out L
11 white cable Rear line out R
Connect wires: without ISO
connectors
Caution
Ensure that all loose leads are insulated with electrical
tape.
•
1 Cut off the bigger end of the supplied
standard connector.
1
2
3
4
5
6
7
8
9
0
!
1
2
3
4
5
6
7
8
9
0
!
Connect wires: ISO connectors
Caution
Ensure that all loose leads are insulated with electrical
tape.
•
1 Pull out the ISO connectors from the car
dashboard and connect them to the bigger
end of the supplied standard connector.
2 Connect the other end of supplied
standard connector to the unit.
If necessary, connect the following:•
Connect wires: ISO connectors
English
