12

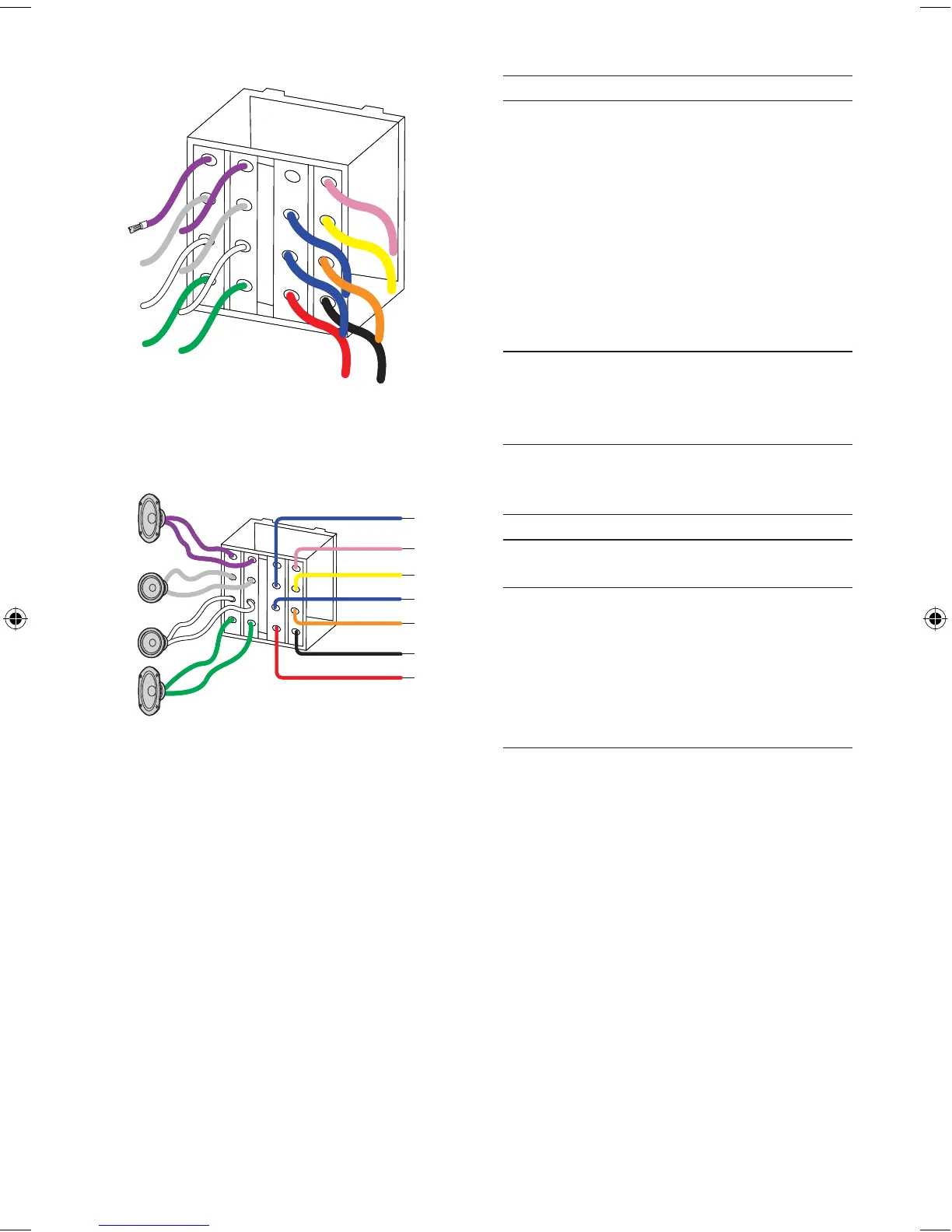

Connector Connect to
1 Blue/white
wire
The electric antenna
control lead or power
supply lead of the
antenna booster
If there is no electric
antenna or antenna
booster, or it is manually
operated telescopic
antenna, it is not
necessary to connect
this lead.
2 Pink wire Reverse driving (see
‘Connect reverse
driving cable’ on page
14 )
3 Yellow wire The +12V car battery
which is live at all
times .
4 Blue wire Amp. remote
5 Orange/
white wire
Illumination switch
6 Black wire A metal surface of the
car
First connect the black
ground (earth) lead,
then connect the yellow
and red power supply
leads.
2 Check the car’s wiring carefully, then
connect them to the standard connector.
2
1
3
4
5
6
7
8
9
0
!
2
1
3
4
5
6
7
8
9
0
!
EN
EN.indd Sec1:12EN.indd Sec1:12 2008-11-14 13:22:592008-11-14 13:22:59
